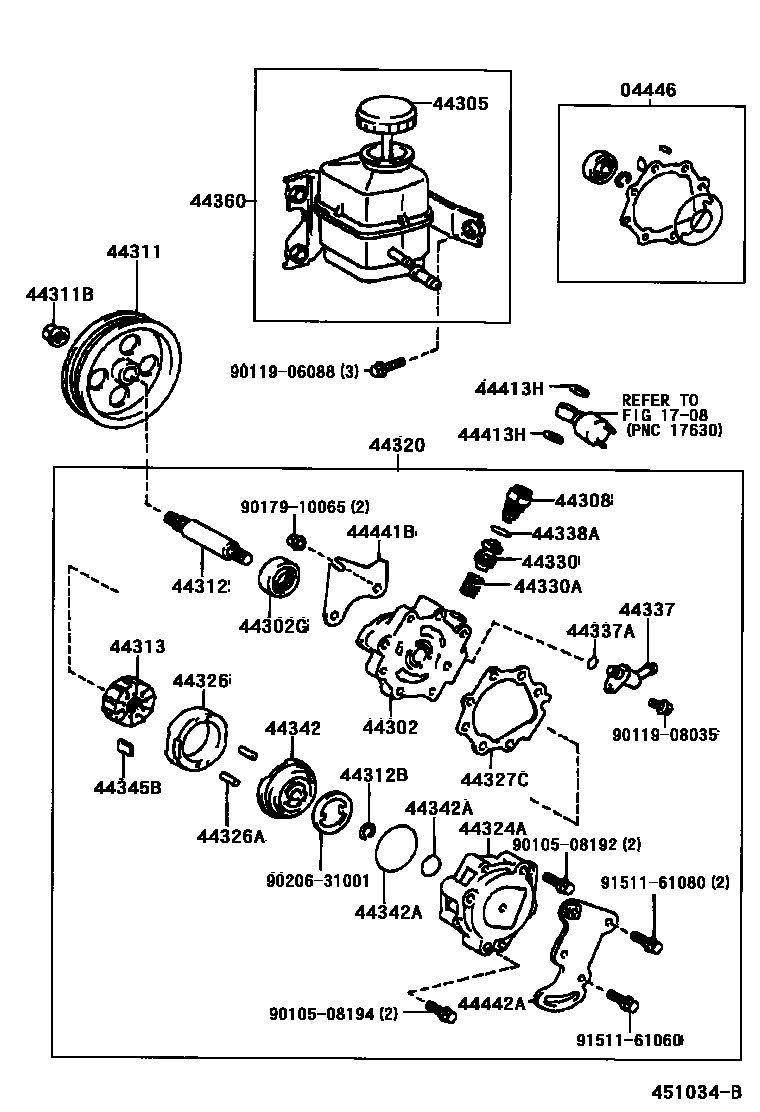

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
1708VACUUM PIPING
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44308UNION SUB-ASSY, PRESSURE PORT
RR
FR
44311PULLEY, VANE PUMP
44311BNUT(FOR VANE PUMP PULLEY)
44312SHAFT, VANE PUMP
OD=17.999-18.004
OD=17.994-17.999
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK,FRONT
NO MARK
MARK 1,FRONT
MARK 1
MARK 2
MARK 2,FRONT
MARK 3,FRONT
MARK 3
MARK 4,FRONT
MARK 4
NO MARK
MARK 1,REAR
MARK 2,REAR
MARK 3,REAR
MARK 4,REAR
44320PUMP ASSY, VANE
44324AHOUSING, PUMP, REAR
44326RING, CAM(FOR VANE PUMP)
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
NO MARK,RR
MARK 1
MARK 1,RR
MARK 2,RR
MARK 2,REAR
MARK 3,REAR
MARK 3,RR
MARK 4,RR
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
MARK 2,FRONT
MARK 2,FR
MARK 3,FRONT
MARK 3,FR
MARK 4
MARK 4,FR
MARK 5,FR
MARK 5
MARK 6,FR
MARK 6
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
L=28,OD=4.0
L=43,OD=4.0
L=23.3,OD=4.0
L=59.5,OD=4
44327CGASKET, VANE PUMP HOUSING
44330VALVE ASSY, FLOW CONTROL
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK A,FRONT
MARK A,FR
MARK B,FRONT
MARK B,FR
MARK C,FRONT
MARK C,FR
MARK D,FR
MARK D,FRONT
MARK E,FR
MARK E,FRONT
MARK F,FRONT
MARK F,FR
MARK A,RR
MARK A,REAR
MARK B,REAR
MARK B,RR
MARK C,REAR
MARK C,RR
MARK D,REAR
MARK D,RR
MARK E,REAR
MARK E,RR
MARK F,REAR
MARK F,RR
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
FR
RR
44337ARING, O(FOR POWER STEERING SUCTION PORT)
FR
FR
RR
44338ARING, O(FOR PRESSURE PORT UNION)
ID=19.5,OD=22.5
ID=19.2,OD=22.3
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
INNER
OUTER
44345BPLATE, VANE PUMP
L=14.997,RR
L=14.997,REAR
L=14.995,RR
L=14.995,REAR
L=14.993,RR
L=14.993,REAR
L=14.991,REAR
L=14.991,RR
L=14.989
L=14.989,RR
L=15.000
L=15.000,FR
L=15.000,FRONT
L=14.998
L=14.998,FRONT
L=14.998,FR
L=14.996,FR
L=14.996
L=14.996,FRONT
L=14.994
L=14.992
ROTOR NO MARK,FRONT
ROTOR NO MARK,FR
ROTOR MARK 1
ROTOR MARK 1,FR
ROTOR MARK 6
ROTOR MARK 7
L=15.000
L=14.998
L=14.996
44360RESERVOIR ASSY, VANE PUMP OIL
44413HGASKET(FOR PRESSURE FEED TUBE NO.2)
44441BBRACKET, PUMP, FRONT
44442ABRACKET, VANE PUMP, REAR
9010508192
main90105-08192
9010508194
main90105-08194
9011906088
main90119-06088
9011908035
main90119-08035
9017910065
main90179-10065
9020631001
main90206-31001
9151161060
main91511-61060
9151161080
main91511-61080
36 parts on this diagram · 5 diagrams in section
