VENTILATION HOSE

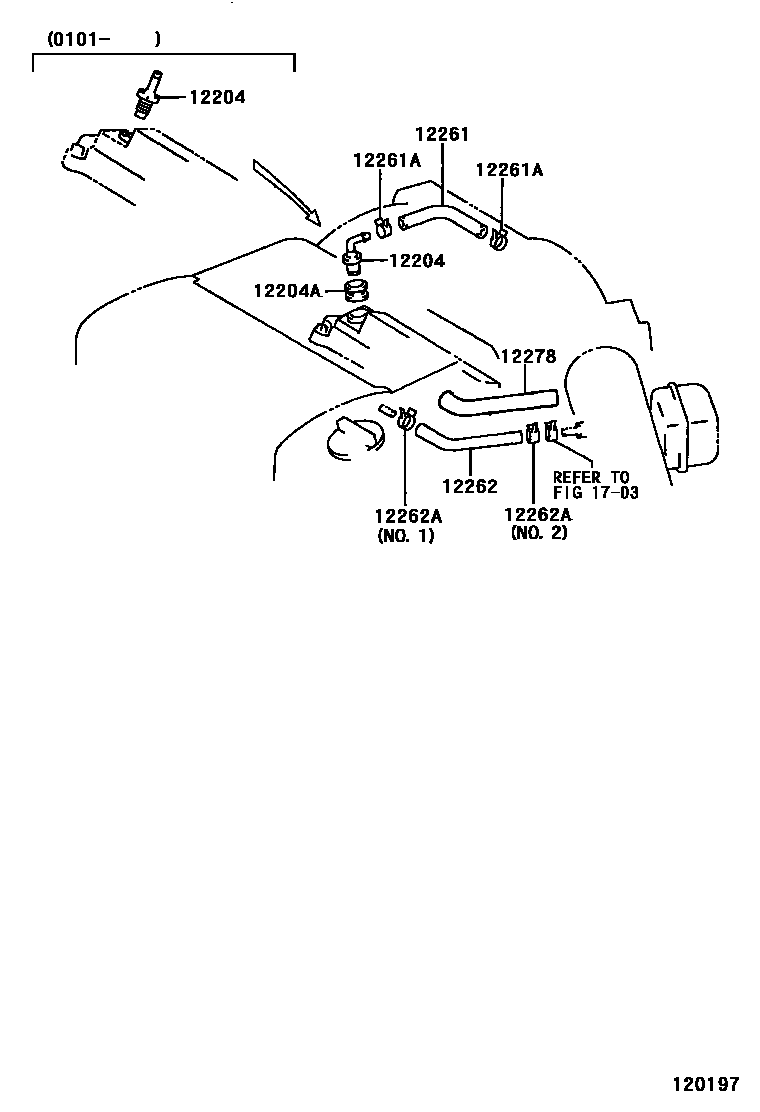

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-20010i199708-200101
main12204-20040i200101
main12204-62010i199208-199708
main12204-74020i199208-199708
main12204-74030i199708
12204AGROMMET(FOR VENTILATION SYSTEM)
main90480-18001i199208-200101
12261HOSE, VENTILATION
main12261-03030i199208-199708
(L)
main12261-20011i199708
main12261-62030i199208-199708
main12261-74020i199208-199708
(J)
main12261-74180i199708
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14017i199208-199708
main90467-14043i199604-199708
main90467-15016i199208-199511
sub96135-51400
main90467-15022i199511-199604
12262HOSE, VENTILATION, NO.2
main12262-20010i199708-199709
main12262-20020i199709
main12262-62040i199208-199708
main12262-74050i199208-199708
main12262-74100i199708
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-13103i199208-199708
NO.1
main90467-14043i199708
main90467-14043i199601-199708
NO.2
main90467-15016i199208-199511
NO.2
sub96135-51400
main90467-15022i199511-199601
NO.2
main90467-17011i199208-199709
sub96134-51700
main90467-17011i199709
NO.1
sub96134-51700
main90467-19022i199709-199805
NO.2
main96134-41900i199805
NO.2
12278INSULATOR, VENTILATION HOSE HEAT
main12278-20010i199709
1703

8 parts on this diagram · 4 diagrams in section
