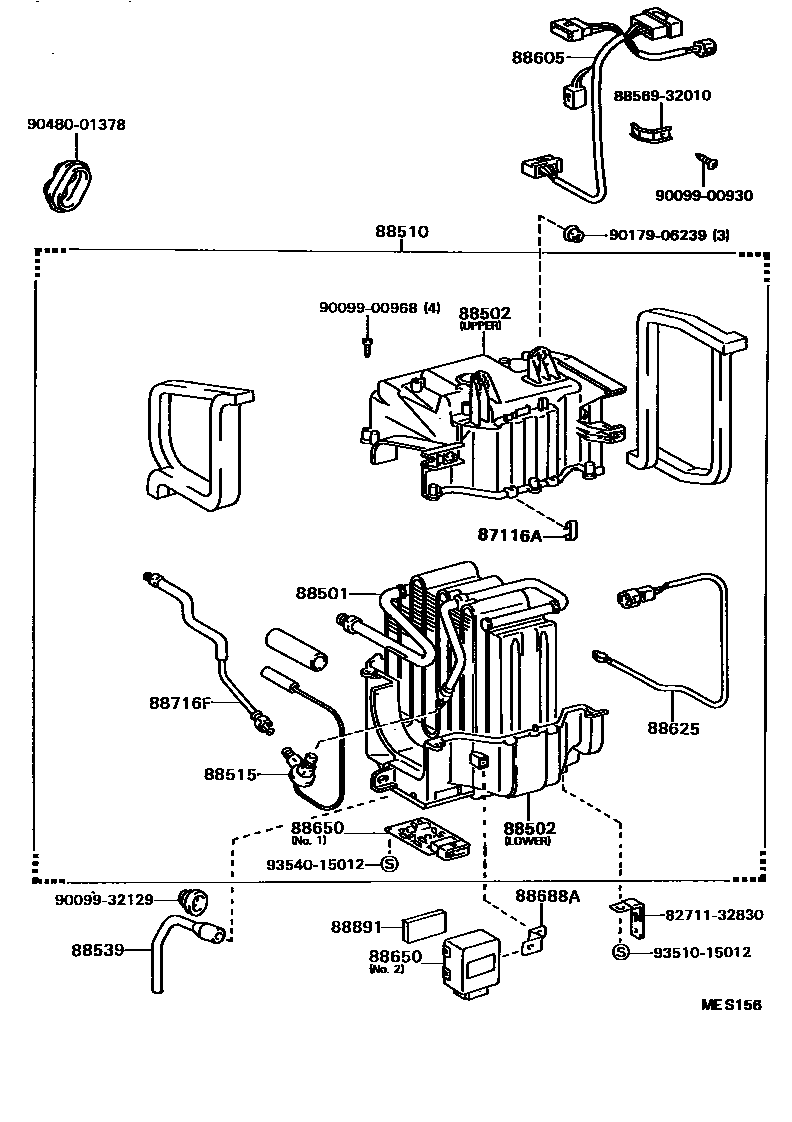

HEATING & AIR CONDITIONING - COOLER UNIT

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×4iVZV21198808-199106

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-32040iVZV21198808-199106

88502CASE SUB-ASSY, COOLING UNIT

main88502-32030iVZV21198808-199106

UPPER

main88502-32040iVZV21198808-199106

LOWER

88510UNIT ASSY, COOLER

main88510-32330iVZV21198808-199106

88515VALVE, COOLER EXPANSION

main88515-16040iVZV21198808-199106

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22110iVZV21198808-199106

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-32490iVZV21198808-199106

88625THERMISTOR, COOLER, NO.1

main88625-32040iVZV21198808-199106

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-32160iVZV21198808-199106

NO.1(MAIN)

main88650-32180iVZV21198808-199106

NO.2

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-32180iVZV21198808-199106

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-32270iVZV21198808-199106

88891PACKING (FOR COOLER)

main88891-32060iVZV21198808-199106

8271132830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32830

8856932010CLAMP (FOR COOLER RELAY)

main88569-32010

9009900930

main90099-00930

9009900968

main90099-00968

9009932129

main90099-32129

9017906239

main90179-06239

9048001378

main90480-01378

9351015012

main93510-15012

9354015012

main93540-15012

21 parts on this diagram · 1 diagram in section
