EPC Data

WINDSHIELD WASHER

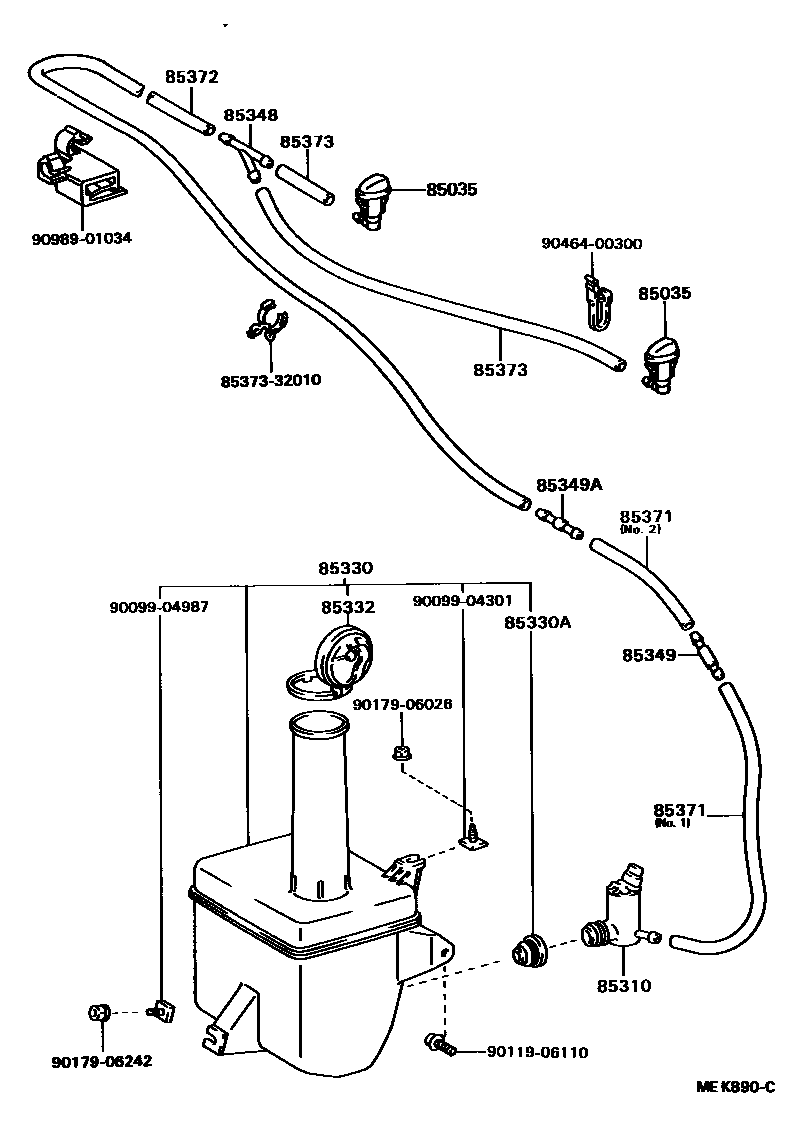

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85035-32150-01i198808-198901
BLACK,040,RH
sub85035-32150
sub85381-12050
sub85035-32250
main85035-32150-01i198901-198905
BLACK,040 ,167 ,173 ,29H ,3H4 ,4K1 ,6H8 ,8D8 ,8E3,RH
sub85035-32150
sub85381-12050
sub85035-32250
main85035-32150-01i198905-198908
BLACK,040 ,173 ,20K ,24N ,3H4 ,4K1,RH
sub85035-32150
sub85381-12050
sub85035-32250
main85035-32150-01i198908-199008
BLACK,040 ,173 ,20K ,24N ,3H4 ,4K1 ,8G2,RH
sub85035-32150
sub85381-12050
sub85035-32250
main85035-32150-01i199008-199106
BLACK,040 ,176 ,21S ,3J9 ,4J1 ,8G2,RH
sub85035-32150
sub85381-12050
sub85035-32250
main85035-32150-08i198901-198903
SUPER WHITE 2,040,RH
sub85035-32150
sub85381-12050
sub85035-32250
main85035-32160-01i198905-198908
BLACK,040 ,173 ,20K ,24N ,3H4 ,4K1,LH
sub85035-32160
sub85381-12050
sub85035-32260
main85035-32160-01i199008-199106
BLACK,040 ,176 ,21S ,3J9 ,4J1 ,8G2,LH
sub85035-32160
sub85381-12050
sub85035-32260
main85035-32160-01i198808-198901
BLACK,040,LH
sub85035-32160
sub85381-12050
sub85035-32260
main85035-32160-01i198908-199008
BLACK,040 ,173 ,20K ,24N ,3H4 ,4K1 ,8G2,LH
sub85035-32160
sub85381-12050
sub85035-32260
main85035-32160-01i198901-198905
BLACK,040 ,167 ,173 ,29H ,3H4 ,4K1 ,6H8 ,8D8 ,8E3,LH
sub85035-32160
sub85381-12050
sub85035-32260
main85035-32160-08i198901-198903
SUPER WHITE 2,040,LH
sub85035-32160
sub85381-12050
sub85035-32260
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-22080i198808-199106
85330JAR ASSY, WINDSHIELD WASHER
main85331-32140i198808-199106
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i198808-199106
85332CAP, WINDSHIELD WASHER JAR
main85332-32161i198808-199106
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12250i198808-199106
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-32150i198808-199106
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
main85349-89122i198808-199106
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33299i198808-198812
L=1000
main90099-33299i198812-199007
L=1000,NO.1
main90446-06013i198808-198812
L=1000
main90446-06013i198812-199007
L=1000,NO.2
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33299i198808-199106
L=1000
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33299i198808-198812
L=1450(*H,L=540),LH,RH
main90099-33299i198812-199106
L=1000,LH,RH
8537332010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-32010
9009904301
main90099-04301
9009904987
main90099-04987
9011906110
main90119-06110
9017906026
main90179-06026
9017906242
main90179-06242
9046400300
main90464-00300
9098901034
main90989-01034

19 parts on this diagram · 1 diagram in section
