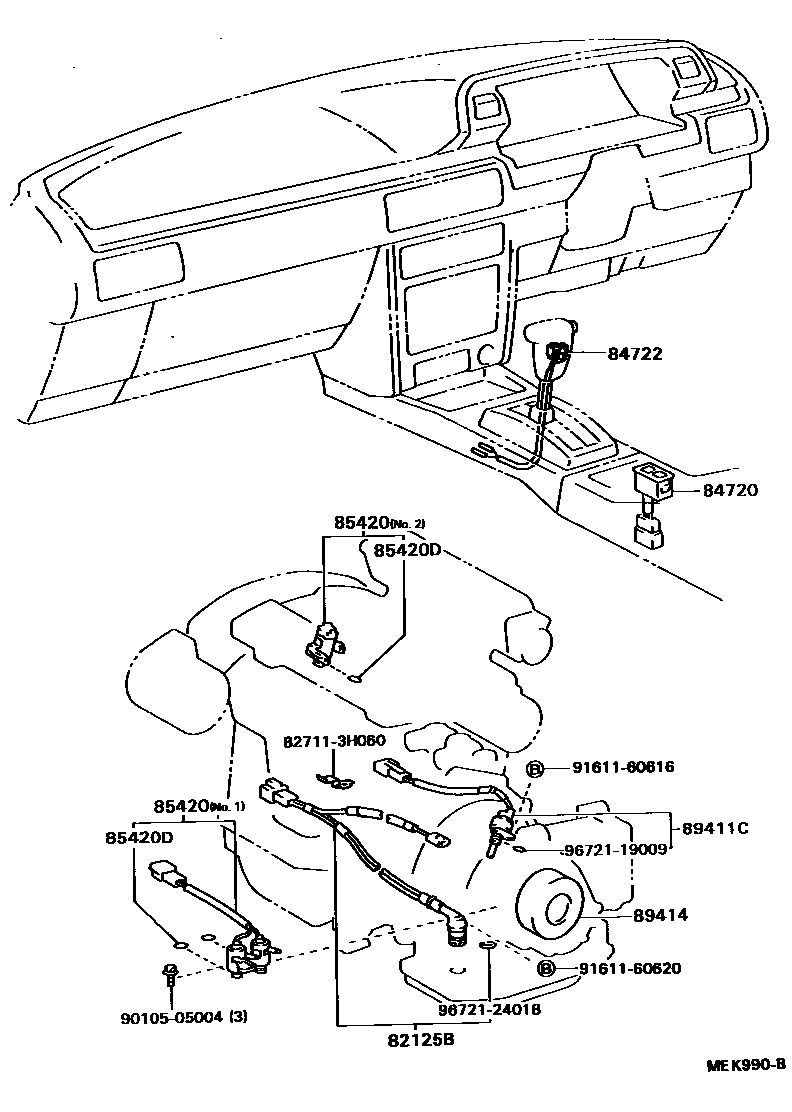

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-32030iVZV21198808-199106

84720SWITCH ASSY, PATTERN SELECT

main84720-32050-01iVZV21198808-199106

BRACK,TRIM1#

main84720-32050-04iVZV21198808-199106

DARK BLUE,TRIM8#

84722SWITCH, TRANSMISSION CONTROL

main84722-32030-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main84722-32030-04iVZV21198808-199106

DARK BLUE,TRIM8#

85420SOLENOID ASSY, TRANSMISSION

main85420-32101iVZV21198808-198811

NO.1

main85420-32103iVZV21198811-199106

NO.1

main85420-32120iVZV21198808-199106

NO.2

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iVZV21198808-199106

89411CSENSOR, SPEED

main89411-32020iVZV21198808-199106

89414ROTOR, SENSOR

main89414-32020iVZV21198808-199104

main89414-33010iVZV21199104-199106

827113H060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H060

9010505004

main90105-05004

9161160616

main91611-60616

9161160620

main91611-60620

9672119009

main96721-19009

9672124018

main96721-24018

13 parts on this diagram · 1 diagram in section
