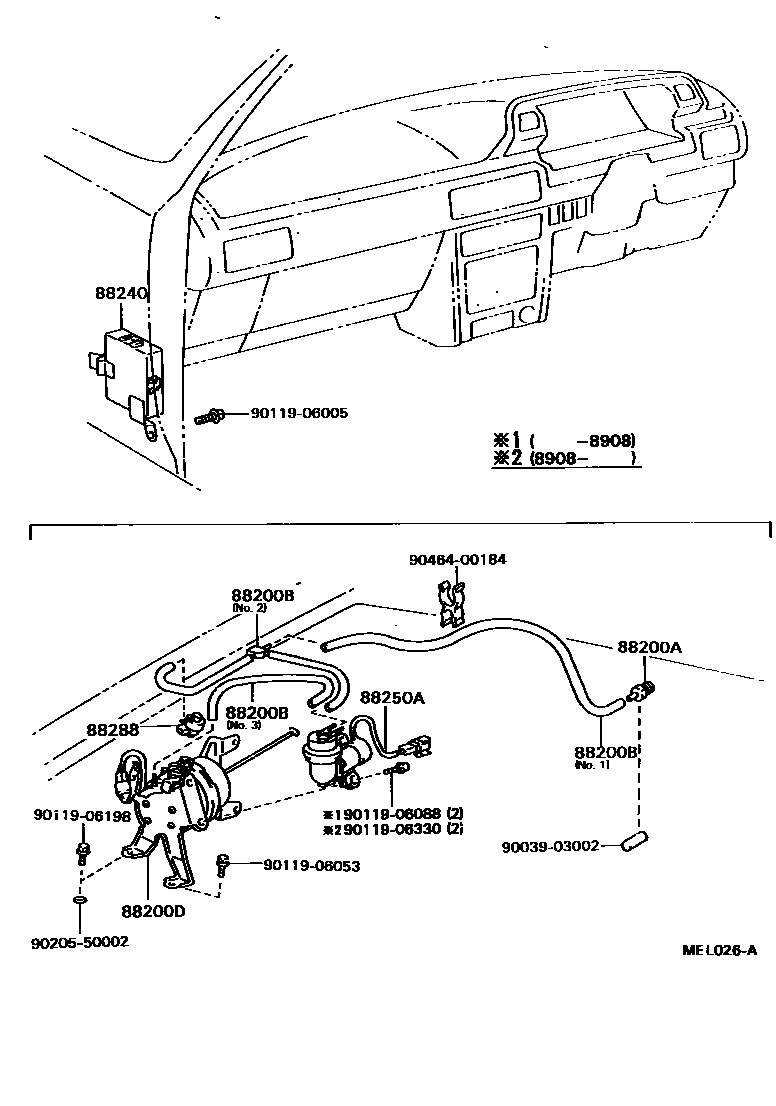

CRUISE CONTROL (AUTO DRIVE)

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51010iVZV21198808-199106

88200BHOSE, CRUISE CONTROL VACUUM

main88283-32030iVZV21198808-199106

NO.2

main90999-92002iVZV21198808-199106

L=300,NO.3

main90999-92003iVZV21198808-199007

L=600,NO.1

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-32060iVZV21198808-199106

88240COMPUTER ASSY, CRUISE CONTROL

main88240-32131iVZV21198808-199106

88250APUMP ASSY, CRUISE CONTROL

main88251-32080iVZV21198808-199106

88288SWITCH, VACUUM SPEED CONTROL

main88288-22010iVZV21198901-199106

main88288-40020iVZV21198808-198901

9003903002

main90039-03002

9011906005

main90119-06005

9011906053

main90119-06053

9011906088

main90119-06088

9011906198

main90119-06198

9011906330

main90119-06330

9020550002

main90205-50002

9046400184

main90464-00184

14 parts on this diagram · 1 diagram in section
