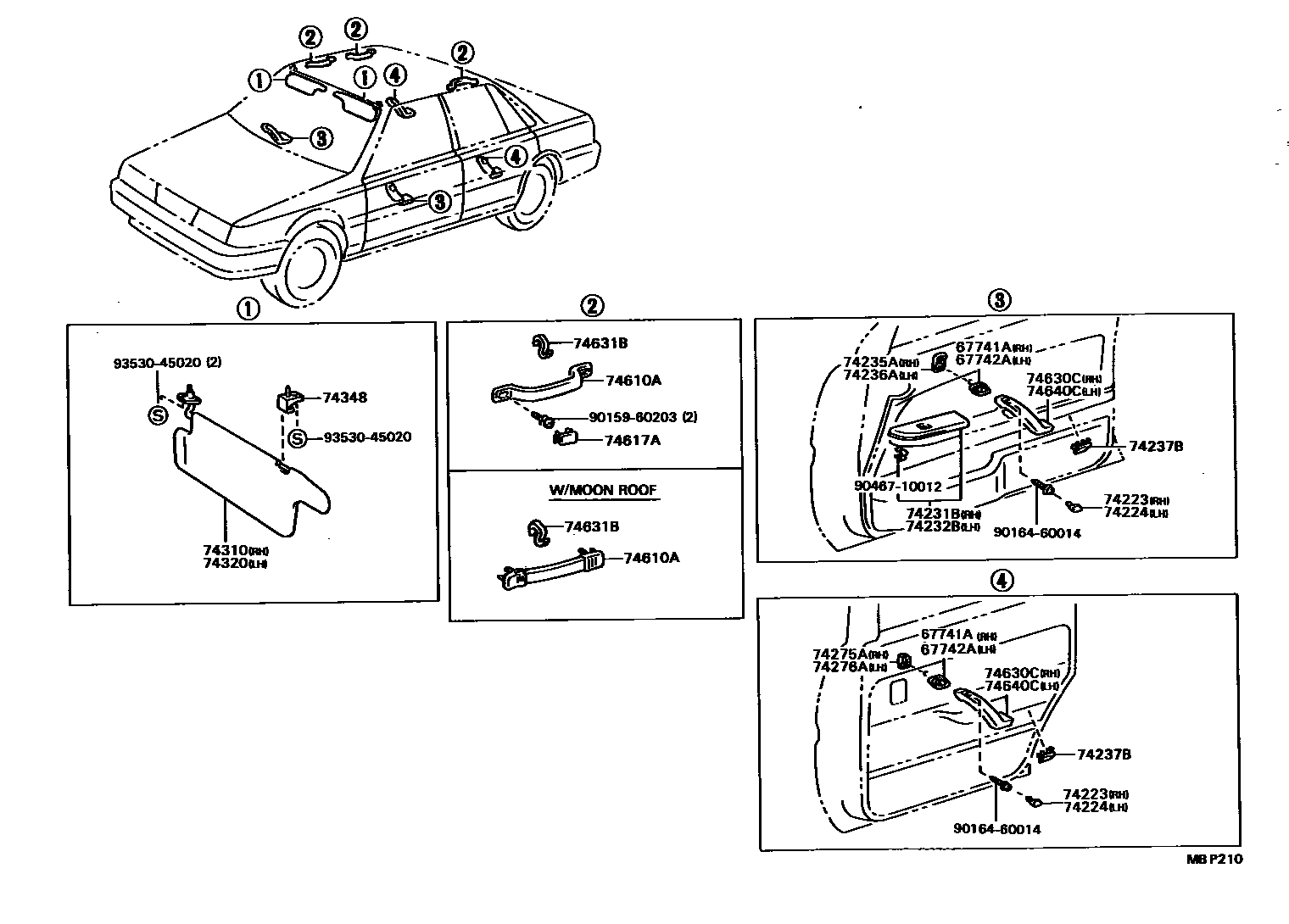

ARMREST & VISOR

67741AMOULDING, FRONT DOOR TRIM, RH

main67741-32050×2iVZV21198808-199106

67742AMOULDING, FRONT DOOR TRIM, LH

main67742-32020×2iVZV21198808-199106

74223CAP, DOOR ARMREST, RH

main74223-32020-03×2iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main74223-32020-04×2iVZV21198808-199106

DARK BLUE,TRIM8#

74224CAP, DOOR ARMREST, LH

main74224-32010-03×2iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main74224-32010-04×2iVZV21198808-199106

DARK BLUE,TRIM8#

74231BPANEL, DOOR ARMREST BASE, RH

main74231-32080-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main74231-32080-04iVZV21198808-199106

DARK BLUE,TRIM8#

74232BPANEL, DOOR ARMREST BASE, LH

main74232-32070-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main74232-32070-04iVZV21198808-199106

DARK BLUE,TRIM8#

74235APLATE, FRONT DOOR ARMREST BASE FINISH, RH

main74235-32010iVZV21198808-199106

74236APLATE, FRONT DOOR ARMREST BASE FINISH, LH

main74236-32010iVZV21198808-199106

74237BCAP, DOOR ARMREST BASE

main74237-32010-03×4iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main74237-32010-04×4iVZV21198808-199106

DARK BLUE,TRIM8#

74275APLATE, REAR DOOR ARMREST BASE FINISH,RH

main74275-32010iVZV21198808-199106

74276APLATE, REAR DOOR ARMREST BASE FINISH,LH

main74276-32010iVZV21198808-199106

74310VISOR ASSY, RH

main74310-32340-03iVZV21198808-199011

LIGHT GRAY,TRIM1#,8#

main74310-32640-03iVZV21199011-199106

LIGHT GRAY,TRIM1#,8#

74320VISOR ASSY, LH

main74320-32310-03iVZV21198808-199011

LIGHT GRAY,TRIM1#,8#

main74320-32570-03iVZV21199011-199106

LIGHT GRAY,TRIM1#,8#

74348HOLDER, VISOR

main74348-12020-04×2iVZV21198808-199106

LIGHT BLUE,TRIM8#

main74348-12020-23×2iVZV21198808-199106

LIGHT GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74610-32020-03×3iVZV21198808-199106

LIGHT GRAY,TRIM1#,8#

main74610-32030-B0×3iVZV21198808-199106

W(MOON ROOF),LIGHT GRAY,TRIM1#,8#

74617APLUG, ASSIST GRIP

main74617-16010-23×6iVZV21198808-199106

GRAY,TRIM1#,8#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-32010-03×2iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main74630-32010-04×2iVZV21198808-199106

DARK BLUE,TRIM8#

74631BHOOK, COAT

main74631-32020-03iVZV21198808-199106

LIGHT GRAY,TRIM1#,8#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-32010-03×2iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main74640-32010-04×2iVZV21198808-199106

DARK BLUE,TRIM8#

9015960203

main90159-60203

9016460014

main90164-60014

9046710012

main90467-10012

9353045020

main93530-45020

23 parts on this diagram · 1 diagram in section
