SEAT BELT & CHILD RESTRAINT SEAT

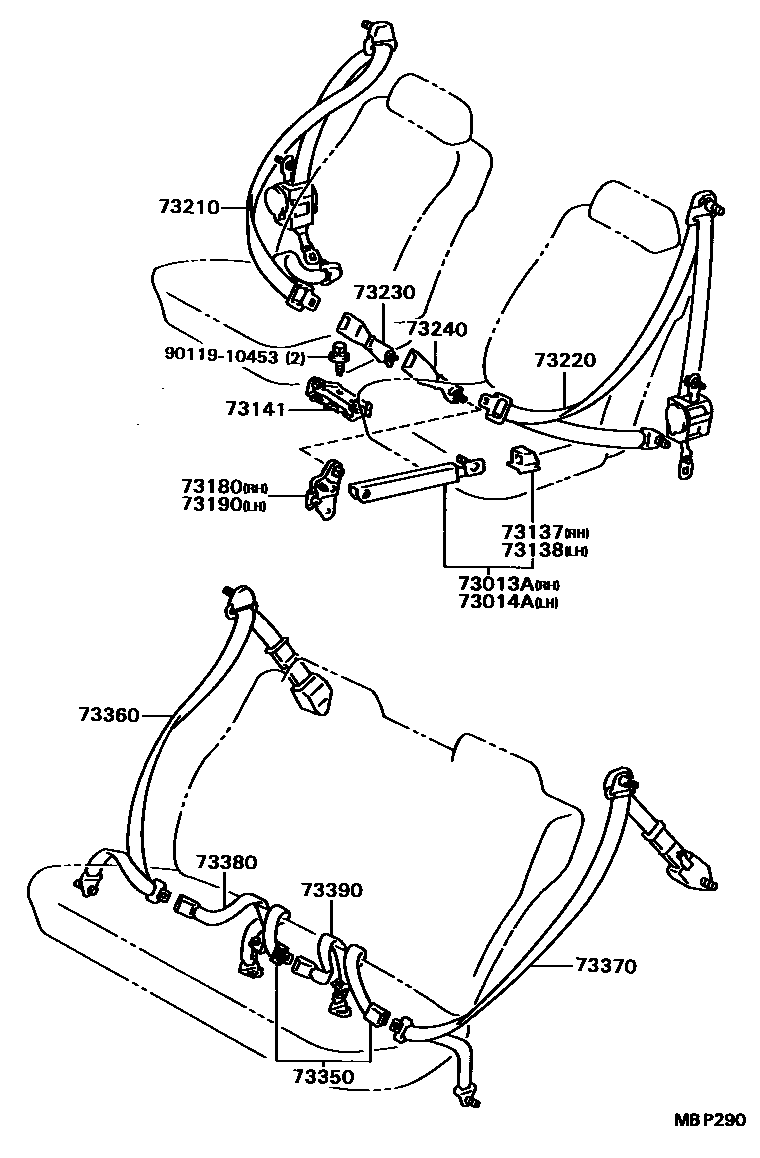

Parts diagram
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
main73013-32030-03i198808-199106
MEDIUM GRAY,TRIM1#
main73013-32030-04i198808-199106
DARK BLUE,TRIM8#
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
main73014-32030-03i198808-199106
MEDIUM GRAY,TRIM1#
main73014-32030-04i198808-199106
DARK BLUE,TRIM8#
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
main73137-32030-03i198808-199106
MEDIUM GRAY,TRIM1#
main73137-32030-04i198808-199106
DARK BLUE,TRIM8#
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
main73138-32030-03i198808-199106
MEDIUM GRAY,TRIM1#
main73138-32030-04i198808-199106
DARK BLUE,TRIM8#
73141BASE, FRONT SEAT BELT ANCHOR
main73141-32040i198808-199106
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
main73011-32020i198808-199106
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
main73012-32020i198808-199106
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-32210-03i198808-199012
MEDIUM GRAY,TRIM1#
main73210-32210-04i198808-199012
DARK BLUE,TRIM8#
main73210-32211-03i199012-199106
MEDIUM GRAY,TRIM1#
main73210-32211-04i199012-199106
DARK BLUE,TRIM8#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-32220-03i198808-199012
MEDIUM GRAY,TRIM1#
main73220-32220-04i198808-199012
DARK BLUE,TRIM8#
main73220-32221-03i199012-199106
MEDIUM GRAY,TRIM1#
main73220-32221-04i199012-199106
DARK BLUE,TRIM8#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-32121-03i198808-199106
MIDIUM GRAY,TRIM1#
main73230-32121-04i198808-199106
DARK BLUE,TRIM8#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-32121-03i198808-199106
MIDIUM GRAY,TRIM1#
main73230-32121-04i198808-199106
DARK BLUE,TRIM8#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-32210-03i198808-199106
MEDIUM GRAY,TRIM1#
main73350-32210-04i198808-199106
DARK BLUE,TRIM8#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-32280-03i198808-199106
MEDIUM GRAY,TRIM1#
main73360-32280-04i198808-199106
DARK BLUE,TRIM8#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-32230-03i198808-199106
MEDIUM GRAY,TRIM1#
main73370-32230-04i198808-199106
DARK BLUE,TRIM8#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-32160-03i198808-199106
MEDIUM GRAY,TRIM1#
main73380-32160-04i198808-199106
DARK BLUE,TRIM8#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73380-32160-03i198808-199106
MEDIUM GRAY,TRIM1#
main73380-32160-04i198808-199106
DARK BLUE,TRIM8#
9011910453
main90119-10453

17 parts on this diagram · 1 diagram in section
