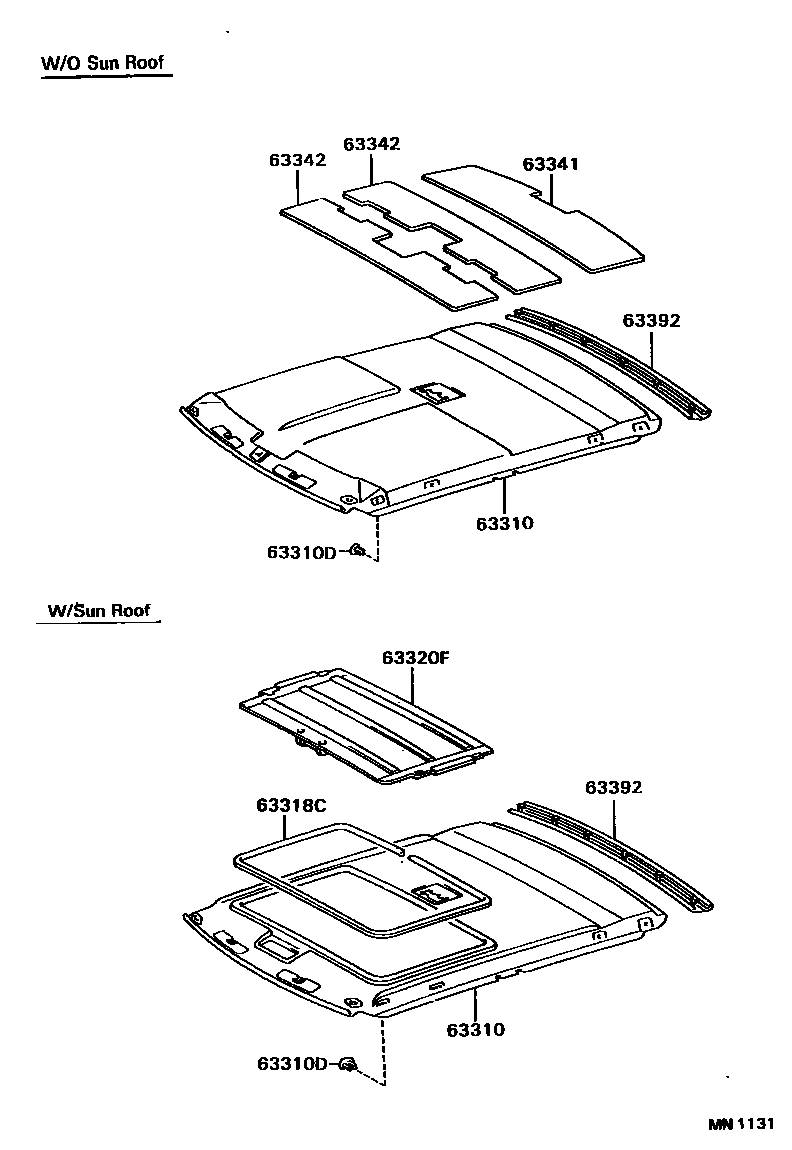

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-32180-03iVZV21198808-199106

LIGHT GRAY,TRIM1#,8#

main63310-32190-03iVZV21198808-199106

W(MOON ROOF),LIGHT GRAY,TRIM1#,8#

63310DCLIP, ROOF HEADLINING

main90467-06048-23×2iVZV21198808-199106

LIGHT GRAY,TRIM1#,8#

main90467-06072-B0×2iVZV21198808-199106

LIGHT GRAY,TRIM1#

main90467-06072-J0×2iVZV21198808-199106

LIGHT BLUE,TRIM8#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-32010-B1iVZV21198808-198812

LIGHT GRAY,TRIM1#,8#

main63318-32030-B0iVZV21198812-199106

LIGHT GRAY,TRIM1#,8#

63320FHEADLINING ASSY, SUN ROOF

main63320-32011-03iVZV21198808-198912

LIGHT GRAY,TRIM1#,8#

main63320-32012-03iVZV21198912-199106

LIGHT GRAY,TRIM1#

main63320-32012-04iVZV21198912-199106

LIGHT BLUE,TRIM8#

63341PAD, ROOF SILENCER, NO.1

main63341-32020iVZV21198808-199006

main63341-32040iVZV21199006-199106

63342PAD, ROOF SILENCER, NO.2

main63342-32010×2iVZV21198808-199006

main63342-32040×2iVZV21199006-199106

63392TRIM, ROOF HEADLINING, REAR

main63305-32050-B0iVZV21198908-199106

MEDIUM GRAY,TRIM1#

main63305-32050-J0iVZV21198808-199106

LIGHT BLUE,TRIM8#

7 parts on this diagram · 1 diagram in section
