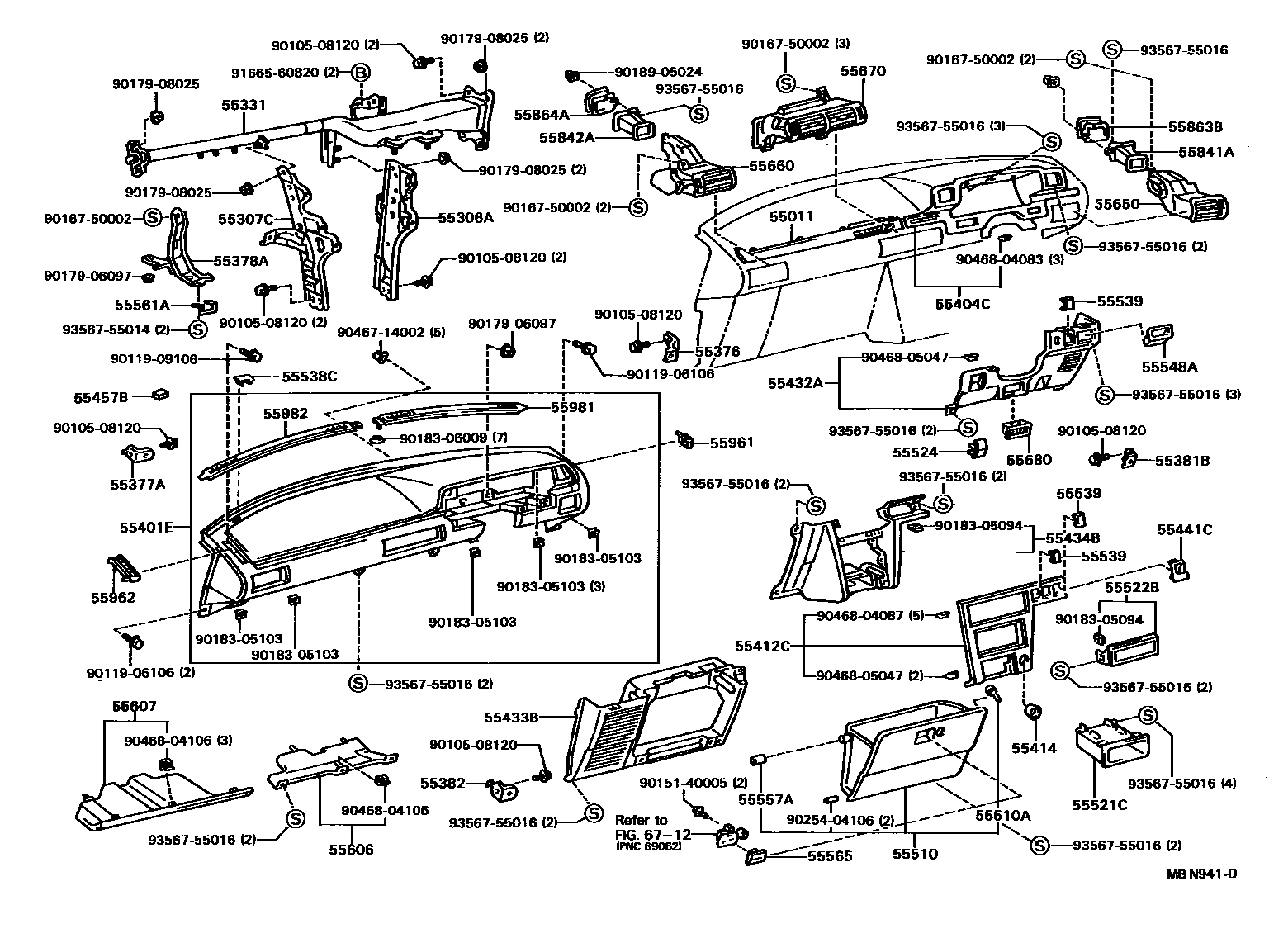

INSTRUMENT PANEL & GLOVE COMPARTMENT

55011GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD

main55011-32110iVZV21198808-199106

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-32070iVZV21198808-199106

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-32040iVZV21198808-199106

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-32060iVZV21198808-199106

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-32030iVZV21198808-199106

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-32030iVZV21198808-199106

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-32040iVZV21198808-199106

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-32040iVZV21198808-199106

55382BRACKET, FINISH PANEL MOUNTING, NO.2

main55382-32020iVZV21198808-199106

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-32051-03iVZV21198808-199106

GRAY,TRIM1#

main55401-32051-04iVZV21198808-199106

DARK BLUE,TRIM8#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-32070-03iVZV21198808-199106

GRAY,TRIM1#

main55404-32070-04iVZV21198808-199106

DARK BLUE,TRIM8#

55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55412-32070iVZV21198808-199106

55414BEZEL, CIGAR LIGHTER HOLE

main55477-12060iVZV21198808-199106

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-32030-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55432-32030-04iVZV21198808-199106

DARK BLUE,TRIM8#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-32030-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55433-32030-04iVZV21198808-199106

DARK BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-32050-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55434-32050-04iVZV21198808-199106

DARK BLUE,TRIM8#

55441CBOX, INSTRUMENT PANEL COIN

main55441-32030-01iVZV21198808-199106

BLACK,TRIM1#,8#

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030×5iVZV21198808-199106

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-32060-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55550-32060-04iVZV21198808-199106

DARK BLUE,TRIM8#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×3iVZV21198808-199106

55521CCOVER, STEREO OPENING

main55521-14050-01iVZV21198808-199106

BLACK,TRIM1#,8#

55522BCOVER, RADIO TUNER OPENING

main55522-32010iVZV21198808-199106

55524COVER, SWITCH BACE HOLE

main55524-32050-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55524-32050-04iVZV21198808-199106

DARK BLUE,TRIM8#

55538CCOVER, COOLER SWITCH HOLE

main55538-32020-03iVZV21198808-199106

GRAY,TRIM1#

main55538-32020-04iVZV21198808-199106

DARK BLUE,TRIM8#

55539COVER, SPARE SWITCH HOLE

main55539-32010-11iVZV21198808-199106

BLACK,TRIM1#,8#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-32040iVZV21198808-199106

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010×2iVZV21198812-199106

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-32020iVZV21198808-199106

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20040-13iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55565-20040-14iVZV21198808-199106

DARK BLUE,TRIM8#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-32010iVZV21198808-199106

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-32010iVZV21198808-199106

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-32081-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55650-32081-04iVZV21198808-199106

DARK BLUE,TRIM8#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-32082-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55660-32082-04iVZV21198808-199106

DARK BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-32051-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55670-32051-04iVZV21198808-199106

DARK BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-B0iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55680-14030-J0iVZV21198808-199106

DARK BLUE,TRIM8#

55841ADUCT, COWL TO REGISTER, NO.1

main55841-32020iVZV21198808-199106

55842ADUCT, COWL TO REGISTER, NO.2

main55842-32020iVZV21198808-199106

55863BBOOT, SIDE VENTILATOR DUCT, NO.1

main55863-32010iVZV21198808-199106

55864ABOOT, SIDE VENTILATOR DUCT, NO.2

main55864-32010iVZV21198808-199106

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-32050-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55961-32050-04iVZV21198808-199106

DARK BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-32030-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55962-32030-04iVZV21198808-199106

DARK BLUE,TRIM8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-32030-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55981-32030-04iVZV21198808-199106

DARK BLUE,TRIM8#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-32030-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main55982-32030-04iVZV21198808-199106

DARK BLUE,TRIM8#

6712LOCK CYLINDER SET

→ Go to FIG 67-12

9010508120

main90105-08120

9011906106

main90119-06106

9011909106

main90119-09106

9015140005

main90151-40005

9016750002

main90167-50002

9017906097

main90179-06097

9017908025

main90179-08025

9018305094

main90183-05094

9018305103

main90183-05103

9018306009

main90183-06009

9018905024

main90189-05024

9025404106

main90254-04106

9046714002

main90467-14002

9046804083

main90468-04083

9046804087

main90468-04087

9046804106

main90468-04106

9046805047

main90468-05047

9166560820

main91665-60820

9356755014

main93567-55014

9356755016

main93567-55016

64 parts on this diagram · 1 diagram in section
