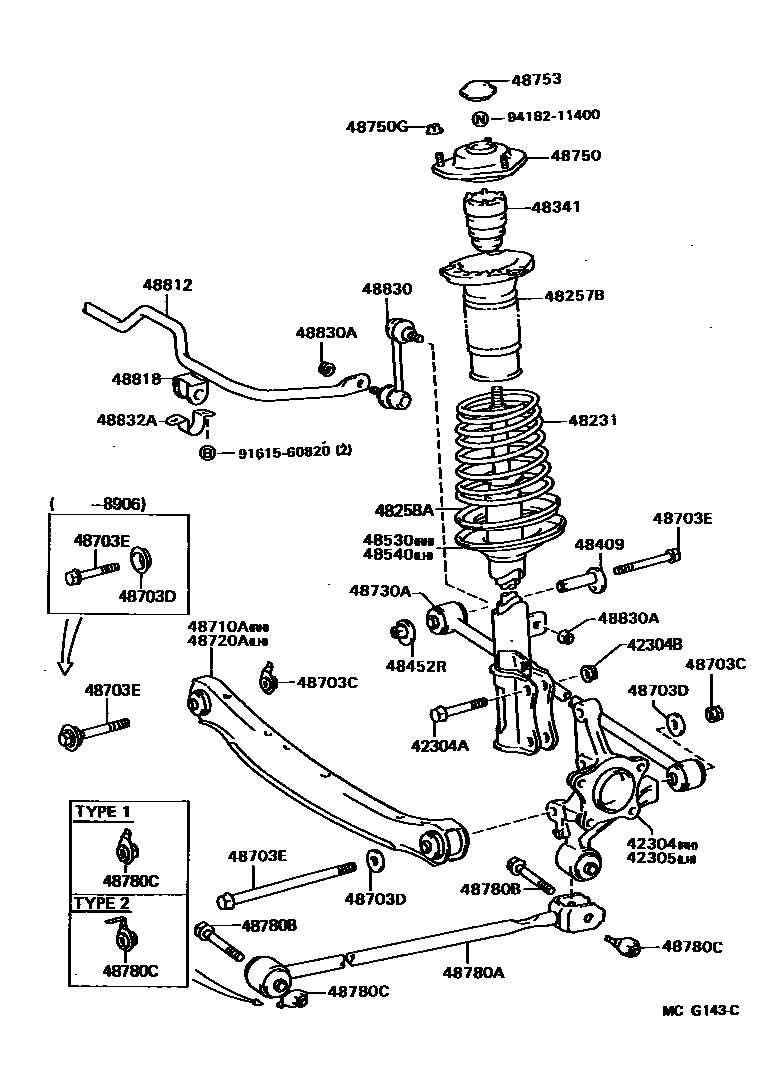

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304ABOLT (FOR REAR AXLE CARRIER)
42304BNUT (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
48231SPRING, COIL, REAR
48257BINSULATOR, REAR COIL SPRING, UPPER
48258AINSULATOR, REAR COIL SPRING, LOWER
48341BUMPER, REAR SPRING
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
sub48530-32060
48540ABSORBER ASSY, SHOCK, REAR LH
sub48540-32060
48703CNUT(FOR REAR SUSPENSION ARM)
BODY SIDE
CARRIER SIDE
48703DWASHER(FOR REAR SUSPENSION ARM)
CARRIER SIDE
BODY SIDE
48703EBOLT(FOR REAR SUSPENSION ARM)
*12-1.25PX80-20
*14-1.5PX248-30
*12-1.25PX81.5-24
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
sub48710-20220
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
sub48720-20090
48730AARM ASSY, REAR SUSPENSION, NO.2
48750SUPPORT ASSY, REAR SUSPENSION
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48753COVER, REAR SUSPENSION SUPPORT
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
CARRIER SIDE
BODY SIDE(TYPE 1)
BODY SIDE(TYPE 2)
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
sub48818-12150
48830LINK ASSY, REAR STABILIZER
sub48830-20010
48830ANUT(FOR REAR STABILIZER LINK)
48832ABRACKET, REAR STABILIZER BAR, NO.1
9161560820
main91615-60820
9418211400
main94182-11400
31 parts on this diagram · 1 diagram in section
