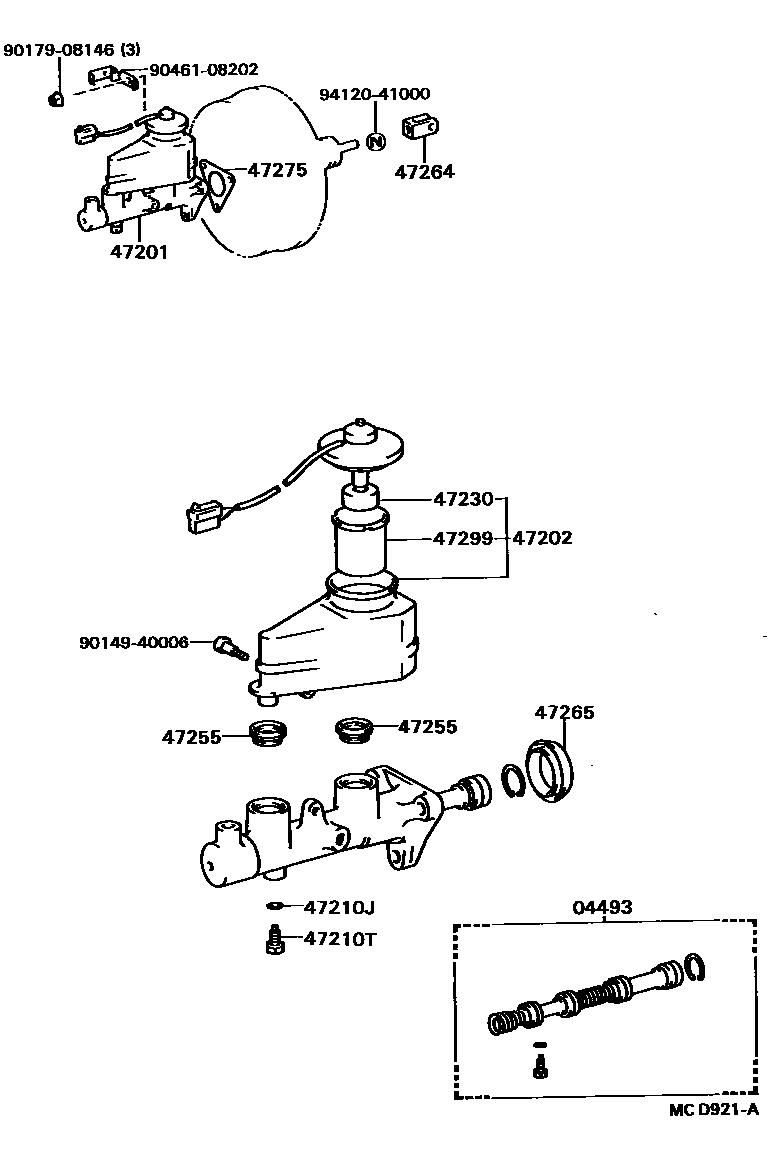

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-32040iVZV21198808-199106

sub04493-33030

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-32140iVZV21198808-199106

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-32070iVZV21198808-199106

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iVZV21198808-199106

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iVZV21198808-199106

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-20110iVZV21198907-199106

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iVZV21198808-199106

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20040iVZV21198808-199106

47265BOOT, MASTER CYLINDER

main47265-20050iVZV21198808-199106

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iVZV21198808-199106

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iVZV21198808-199106

9014940006

main90149-40006

9017908146

main90179-08146

9046108202

main90461-08202

9412041000

main94120-41000

15 parts on this diagram · 1 diagram in section
