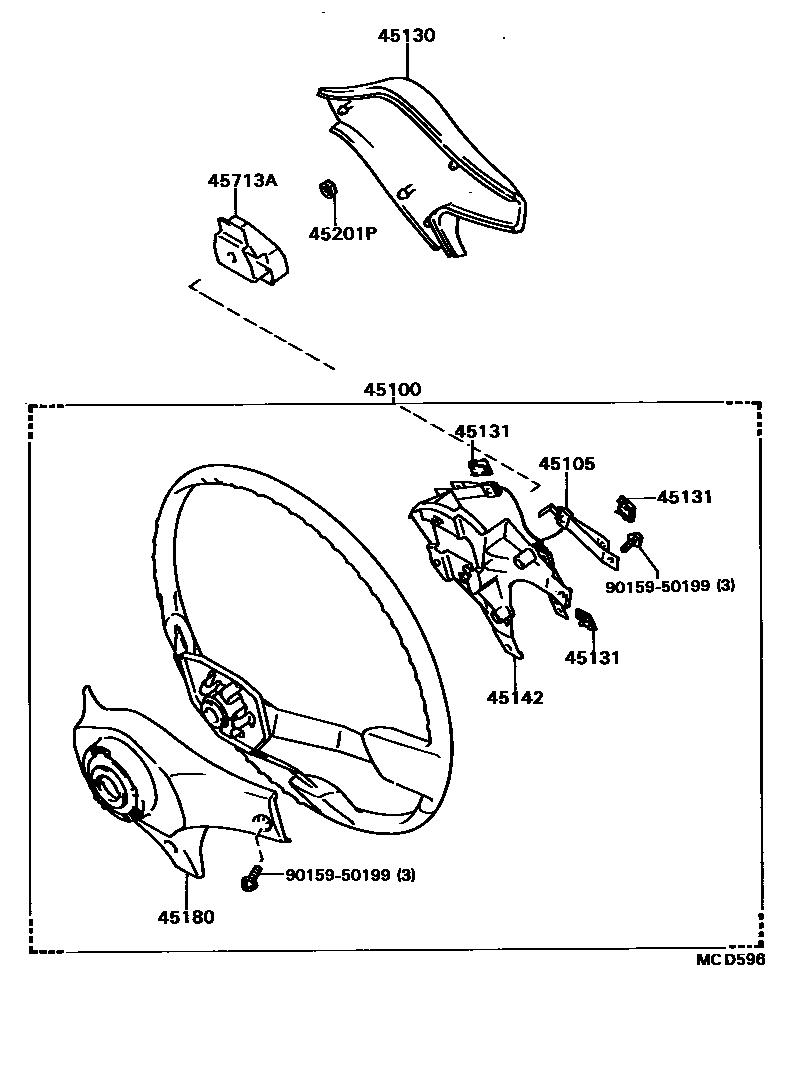

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-32090-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main45100-32090-04iVZV21198808-199106

DARK BLUE,TRIM8#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-32080iVZV21198808-199106

45130BUTTON ASSY, HORN

main45130-32160-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main45130-32160-04iVZV21198808-199106

DARK BLUE,TRIM8#

45131BUTTON, HORN, NO.1

main45131-32060×3iVZV21198808-199106

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-32070iVZV21198808-199106

45180COVER SUB-ASSY, STEERING WHEEL

main45180-32050-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main45180-32050-04iVZV21198808-199106

DARK BLUE,TRIM8#

45201PNUT, STEERING WHEEL SET

main90179-12086iVZV21198808-199106

45713ADAMPER, STEERING SHAKE

main45713-32030iVZV21198808-199106

9015950199

main90159-50199

9 parts on this diagram · 1 diagram in section
