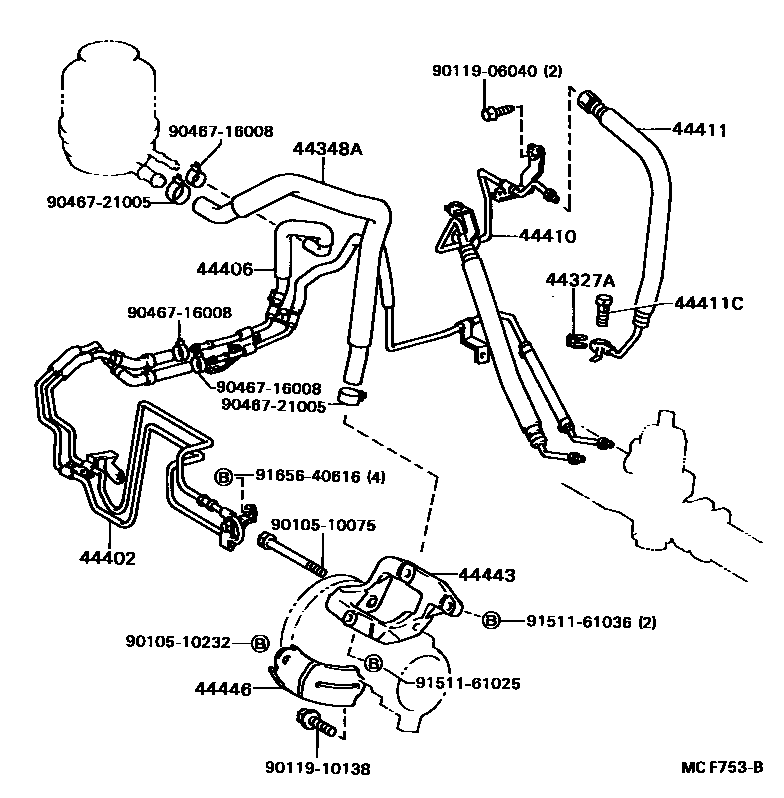

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iVZV21198808-199106

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-32120iVZV21198808-199106

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-32090iVZV21198808-199106

44406TUBE SUB-ASSY, RETURN

main44406-32090iVZV21198808-199106

44410TUBE ASSY, PRESSURE FEED

main44410-32240iVZV21198808-199106

44411HOSE, PRESSURE FEED

main44411-32080iVZV21198808-199106

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iVZV21198808-199106

44443BRACKET, PUMP

main44443-32041iVZV21198808-199106

44446STRUT, ADJUSTING

main44446-32010iVZV21198808-199106

9010510075

main90105-10075

9010510232

main90105-10232

9011906040

main90119-06040

9011910138

main90119-10138

9046716008

main90467-16008

9046721005

main90467-21005

9151161025

main91511-61025

9151161036

main91511-61036

9165640616

main91656-40616

18 parts on this diagram · 1 diagram in section
