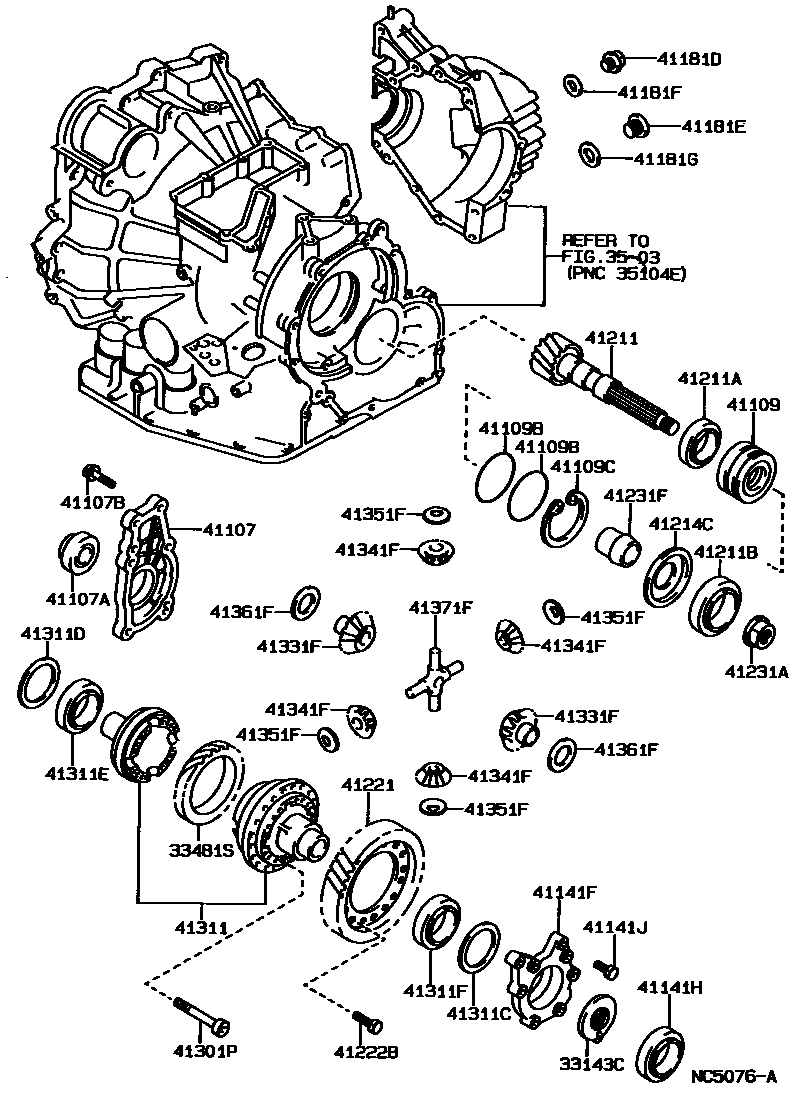

FRONT AXLE HOUSING & DIFFERENTIAL
33143CBAFFLE, FRONT DIFFERENTIAL OIL
33481SGEAR, SPEEDOMETER DRIVE (ATM)
N=29
3503TRANSMISSION CASE & OIL PAN (ATM)
41107RETAINER SUB-ASSY, FRONT DIFFERENTIAL OIL SEAL
41107ASEAL, OIL (FOR FRONT DIFFERENTIAL OIL SEAL RETAINER)
41107BBOLT (FOR FRONT DIFFERENTIAL OIL SEAL RETAINER)
41109CAGE SUB-ASSY, DIFFERENTIAL DRIVE PINION BEARING
41109BRING, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
41109CRING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE)
41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING
41141HSEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
*8-1.25PX36-23
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231ANUT, DRIVE PINION LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.0
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.80,MARK FA
T=0.90,MARK FB
T=1.00,MARK FC
T=1.10,MARK FD
T=1.20,MARK FE
T=1.30,MARK FF
T=1.40,MARK FG
41371FSPIDER, FRONT DIFFERENTIAL
35 parts on this diagram · 1 diagram in section
