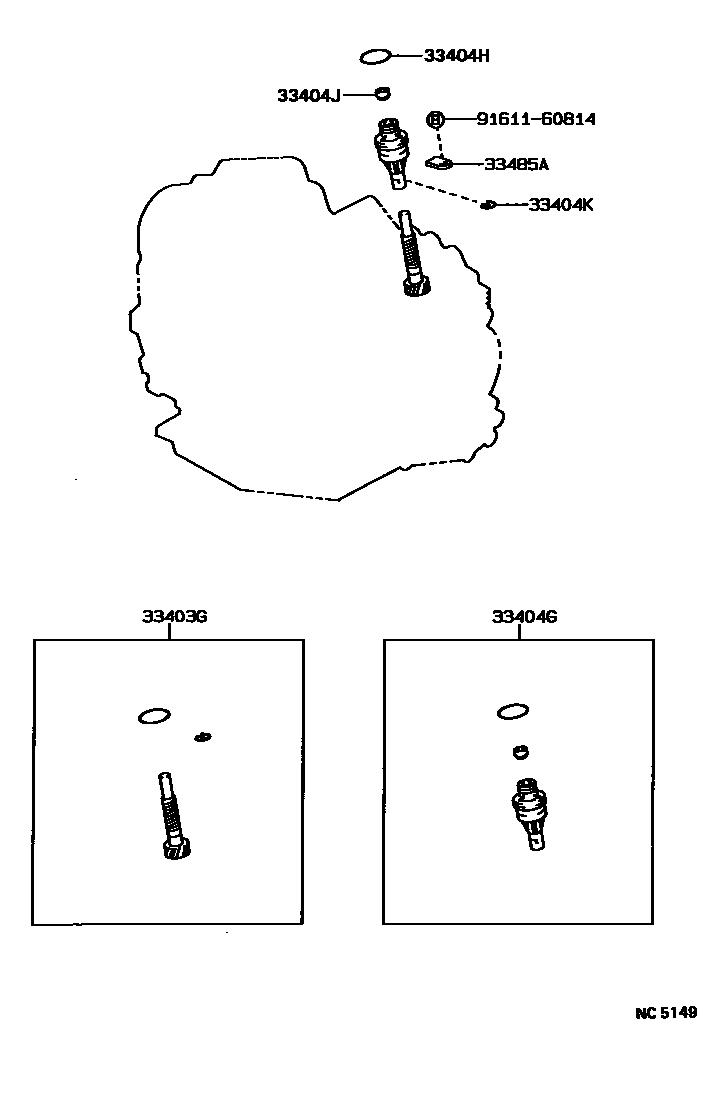

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39225iVZV21198808-199106

N=24,MARK 24:29

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12030iVZV21198808-199106

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24030iVZV21198808-199106

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iVZV21198808-199106

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iVZV21198808-199106

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iVZV21198808-199106

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
