TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

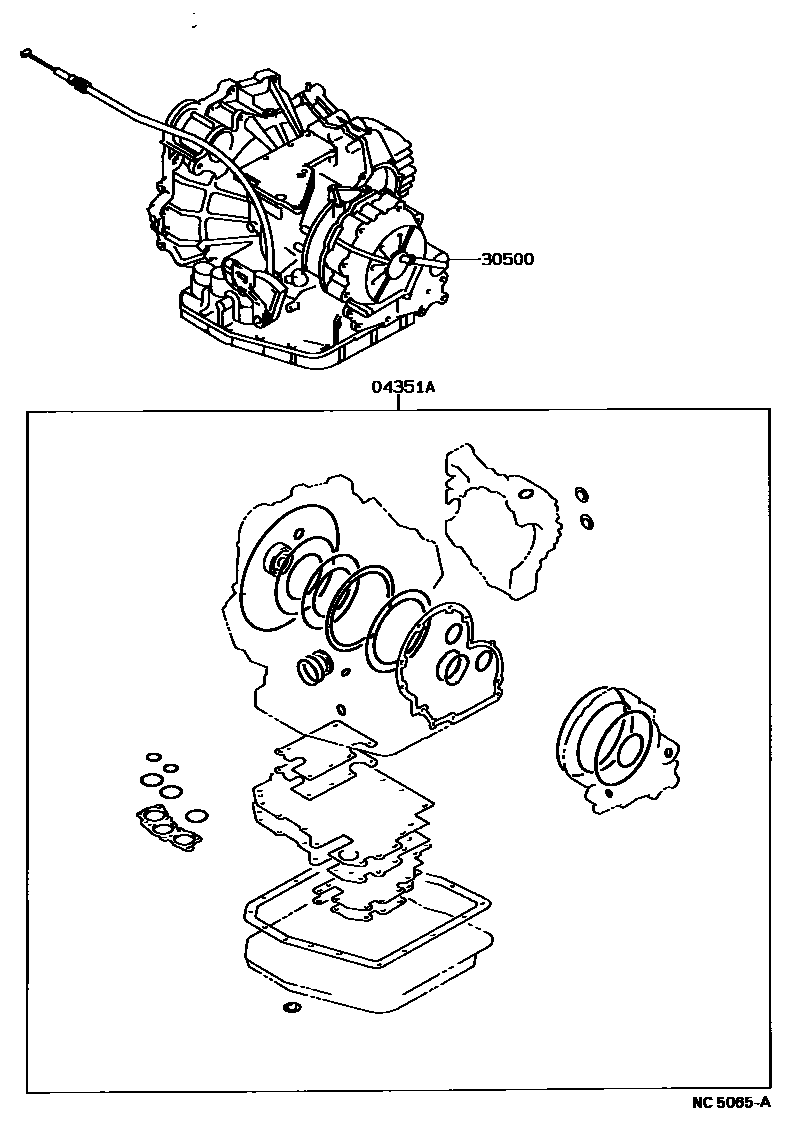

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-32050i198808-199006

main04351-32051i199006-199106

30500TRANSAXLE ASSY, AUTOMATIC

main30500-32470i198808-198910

main30500-32471i198910-199106

2 parts on this diagram · 1 diagram in section
