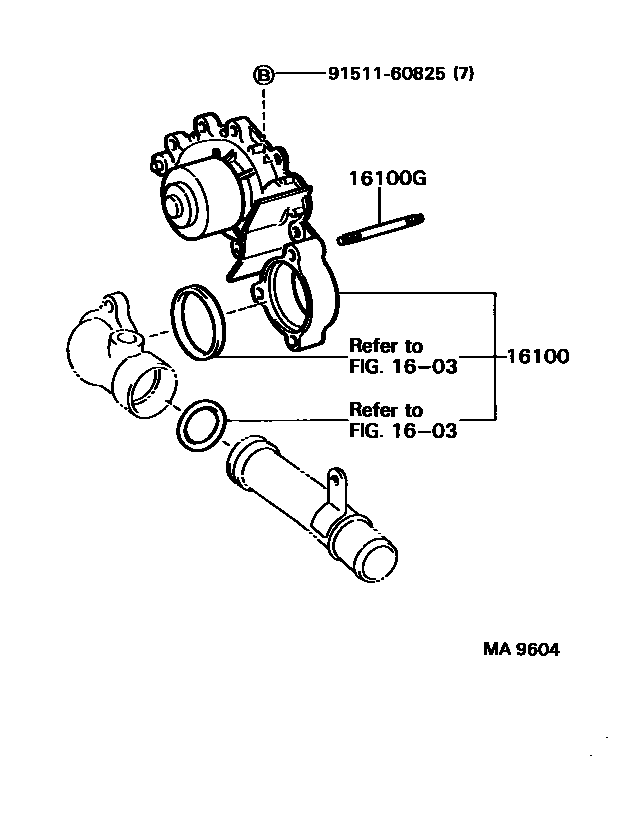

WATER PUMP

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-69206i2VZFE..VZV21198808-199105

main16100-69305i2VZFE..VZV21199105-199106

16100GBOLT, STUD(FOR WATER PUMP SET)

main90116-08270×3i2VZFE..VZV21198808-199106

9151160825

main91511-60825

4 parts on this diagram · 2 diagrams in section
