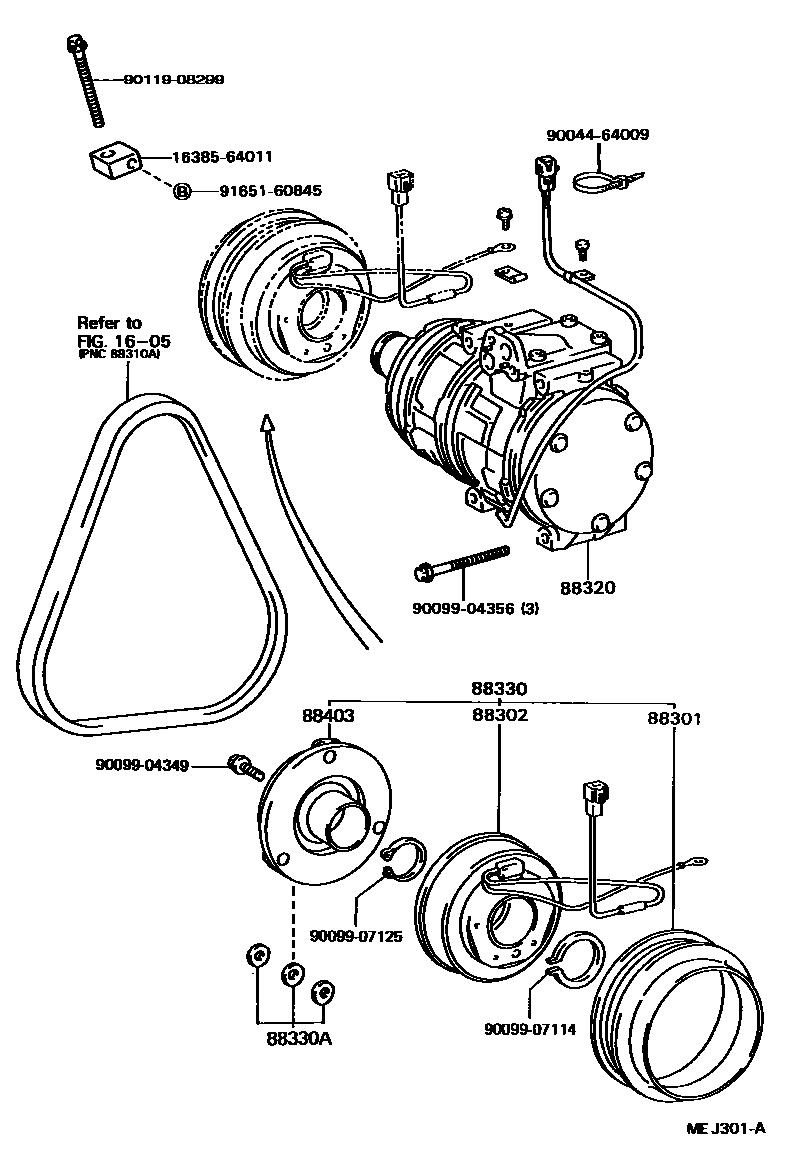

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20090iSV2#198611-198904

main88412-32030iVZV21198802-198808

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-32021iSV2#198611-198904

main88411-32031iVZV21198802-198808

88320COMPRESSOR ASSY, COOLER

main88320-32080iSV2#198611-198904

main88320-32090iVZV21198802-198808

88330CLUTCH ASSY, MAGNET

main88410-32030iSV2#198611-198904

main88410-32040iVZV21198802-198808

88330AWASHER (FOR MAGNET CLUTCH)

main88355-14020iSV2#,VZV21198611-198808

88403HUB SUB-ASSY, MAGNET CLUTCH

1638564011SLIDER, FAN BELT ADJUSTING

main16385-64011

9004464009

main90044-64009

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9009907125

main90099-07125

9011908299

main90119-08299

9165160845

main91651-60845

15 parts on this diagram · 4 diagrams in section
