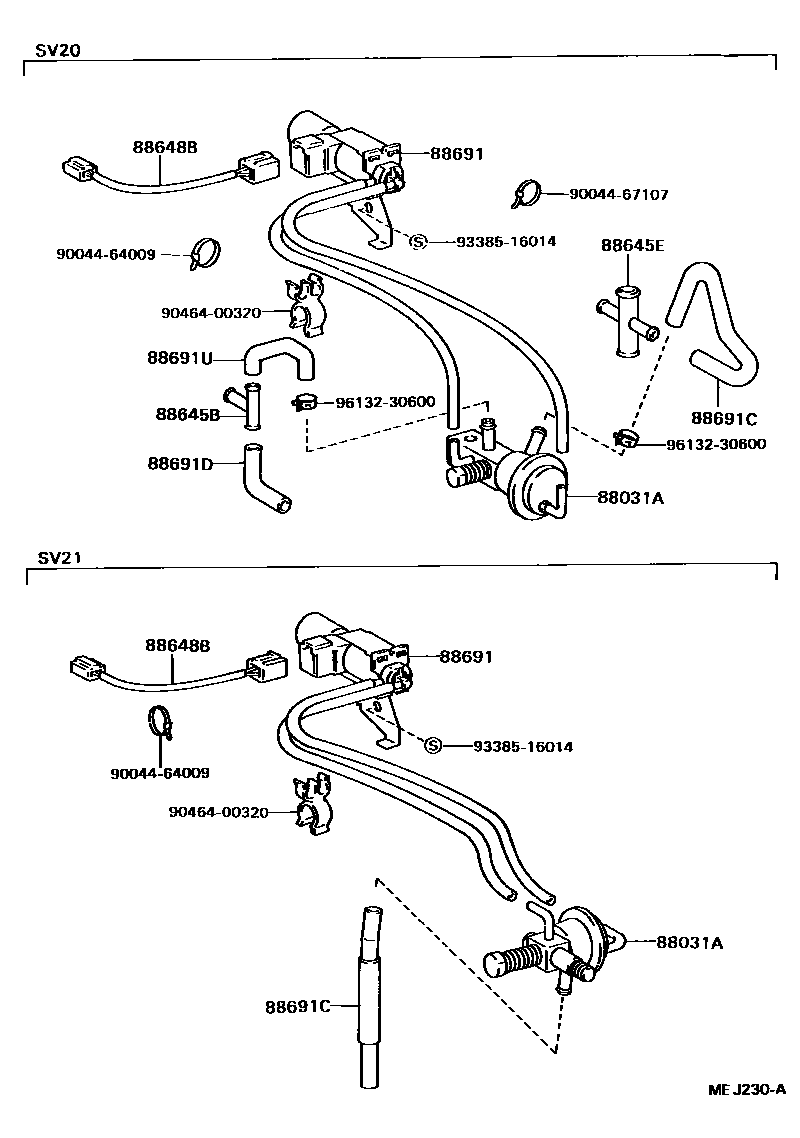

HEATING & AIR CONDITIONING - VACUUM PIPING

88031ADIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR

main88606-20050iSV20198611-198904

main88606-32010iSV21198611-198904

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main88892-20250iSV20198611-198904

88645EJOINT, NO.2 (FOR IDLE UP DEVICE)

main88892-20260iSV20198611-198904

88648BWIRING, COOLER, NO.1

main88648-32070iSV2#198611-198904

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-32310iSV21198611-198904

main88690-32330iSV20198611-198904

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main88689-20160iSV20198611-198904

main88689-32050iSV21198611-198904

88691DHOSE, VACUUM (FOR IDLE UP DIVICE), NO.2

main88689-20170iSV20198611-198904

88691UWAY(FOR VACUUM HOSE)

main88689-20180iSV20198611-198904

9004464009

main90044-64009

9004467107

main90044-67107

9046400320

main90464-00320

9338516014

main93385-16014

9613230600

main96132-30600

13 parts on this diagram · 1 diagram in section
