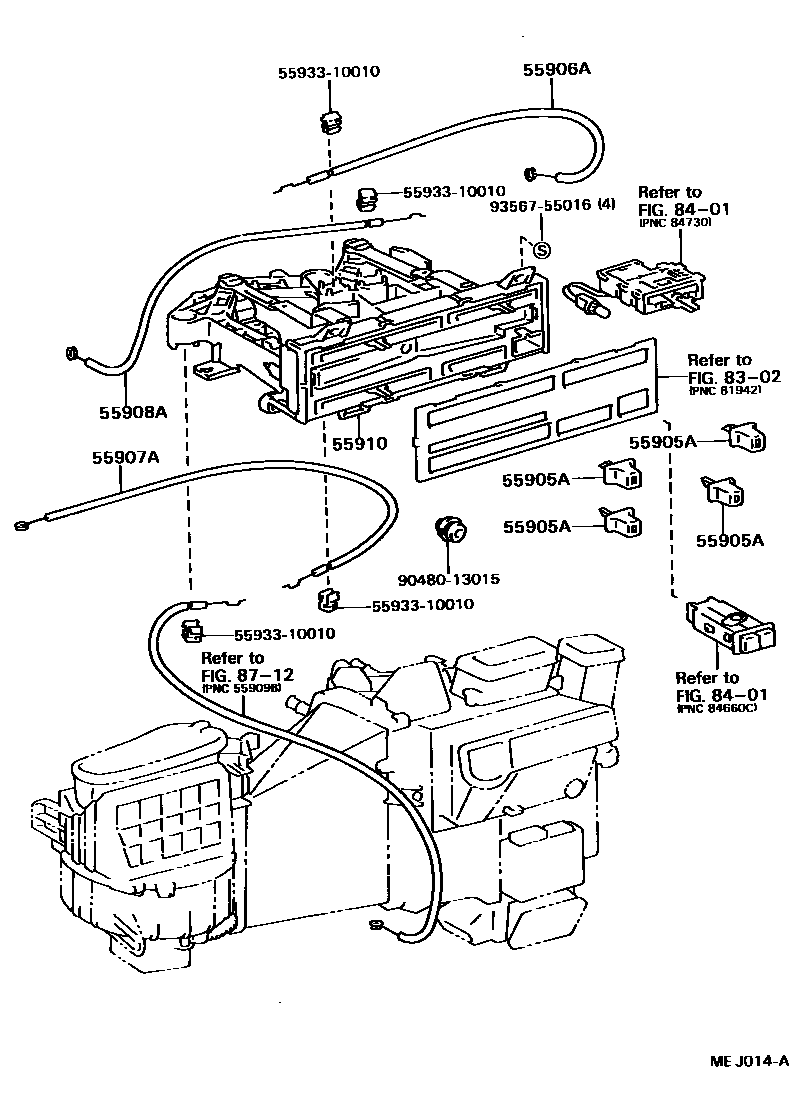

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55905AKNOB, HEATER CONTROL

main55905-32010iVZV21198802-198808

FACE

main55905-32020iVZV21198802-198808

BI-LEVEL

main55905-32030iVZV21198802-198808

FOOT

main55905-32040iVZV21198802-198808

FOOT/DEF

main55905-32050iVZV21198802-198808

DEF

main55905-32070iVZV21198802-198808

FAN OFF

main55905-32080iVZV21198802-198808

FAN LO

main55905-32090iVZV21198802-198808

FAN M1

main55905-32100iVZV21198802-198808

FAN M2

main55905-32110iVZV21198802-198808

FAN HI

main55905-32120iVZV21198802-198808

RECIRCU

main55905-32130iVZV21198802-198808

A/C

main55905-32140iVZV21198802-198808

ECON

main55905-32150iVZV21198802-198808

TEMP

main55905-32170iVZV21198802-198808

MODE AUTO

main55905-32190×4iSV2#198611-198904

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-32050iSV2#198611-198904

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-32030iSV2#198611-198904

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-32050iSV2#198611-198904

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-32060iSV2#198611-198904

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

5593310010GUIDE, LEVER, NO.2

main55933-10010

9048013015

main90480-13015

9356755016

main93567-55016

11 parts on this diagram · 3 diagrams in section
