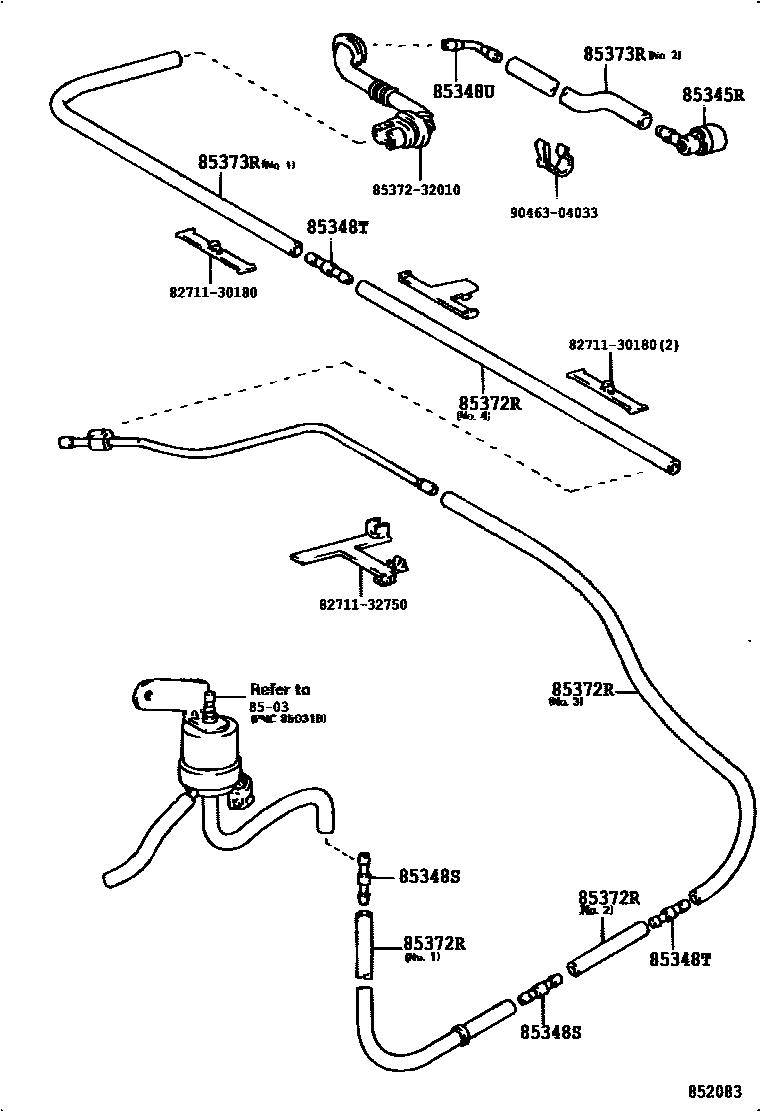

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85345-32010iSV2#..WG198611-198904

85348SJOINT, REAR WASHER ELBOW, NO.1

main85349-89122×2iSV2#..WG198611-198904

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122×2iSV2#..WG198611-198904

85348UJOINT, REAR WASHER HOSE, NO.3

main85355-32020iSV2#..WG198611-198904

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iSV2#..WG198611-198904

L=1450(*H,L=60),NO.2

main90446-07001iSV2#..WG198611-198808

L=1800,NO.4

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iSV2#..WG198611-198904

L=1800(*H,L=1100),NO.1

main90099-33299iSV2#..WG198611-198904

L=1000(*H,L=300),NO.2

8271130180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30180

8271132750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32750

8537232010HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-32010

9046304033

main90463-04033

11 parts on this diagram · 1 diagram in section
