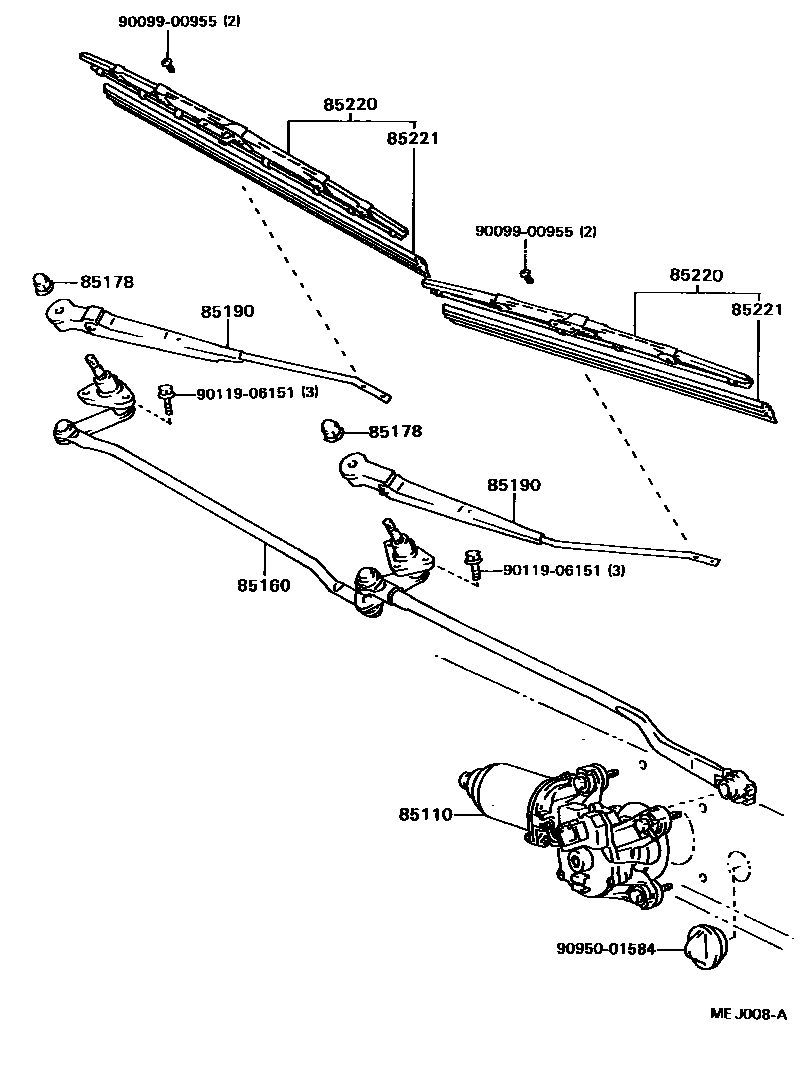

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-32210iSV2#,VZV21198802-198808

85160LINK ASSY, WINDSHIELD WIPER

main85160-32110iSV2#,VZV21198802-198808

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033×2iSV2#,VZV21198710-198807

main90176-08040×2iSV2#,VZV21198807-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-32260iSV2#,VZV21198802-198808

RH

main85210-32190iSV2#198808-198904

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16230iSV2#,VZV21198802-198808

LH

main85220-32590iSV2#198808-198904

RH

85221BLADE, WINDSHIELD WIPER

main85221-30100iSV2#198611-198710

LH

main85221-32050iSV2#198808-198904

RH

9009900955

main90099-00955

9011906151

main90119-06151

9095001584

main90950-01584

9 parts on this diagram · 1 diagram in section
