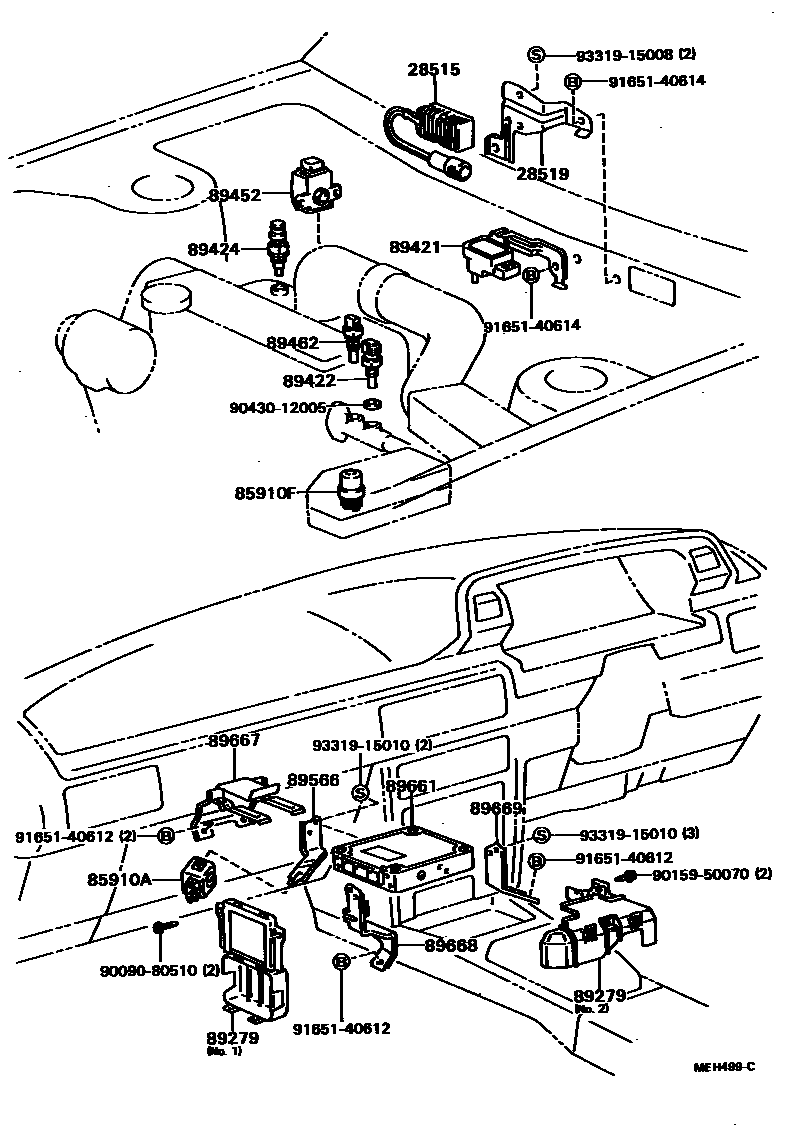

ELECTRONIC FUEL INJECTION SYSTEM
28515RESISTOR, SOLENOID
28519BRACKET, SOLENOID RESISTOR
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89279COVER, ENGINE CONTROL COMPUTER
NO.1
NO.2
NO.1
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89462SWITCH, START INJECTOR TIME
89566BRACKET, FUEL INJECTION COMPUTER
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9009080510
main90090-80510
9015950070
main90159-50070
9043012005
main90430-12005
9165140612
main91651-40612
9165140614
main91651-40614
9331915008
main93319-15008
9331915010
main93319-15010
22 parts on this diagram · 2 diagrams in section
