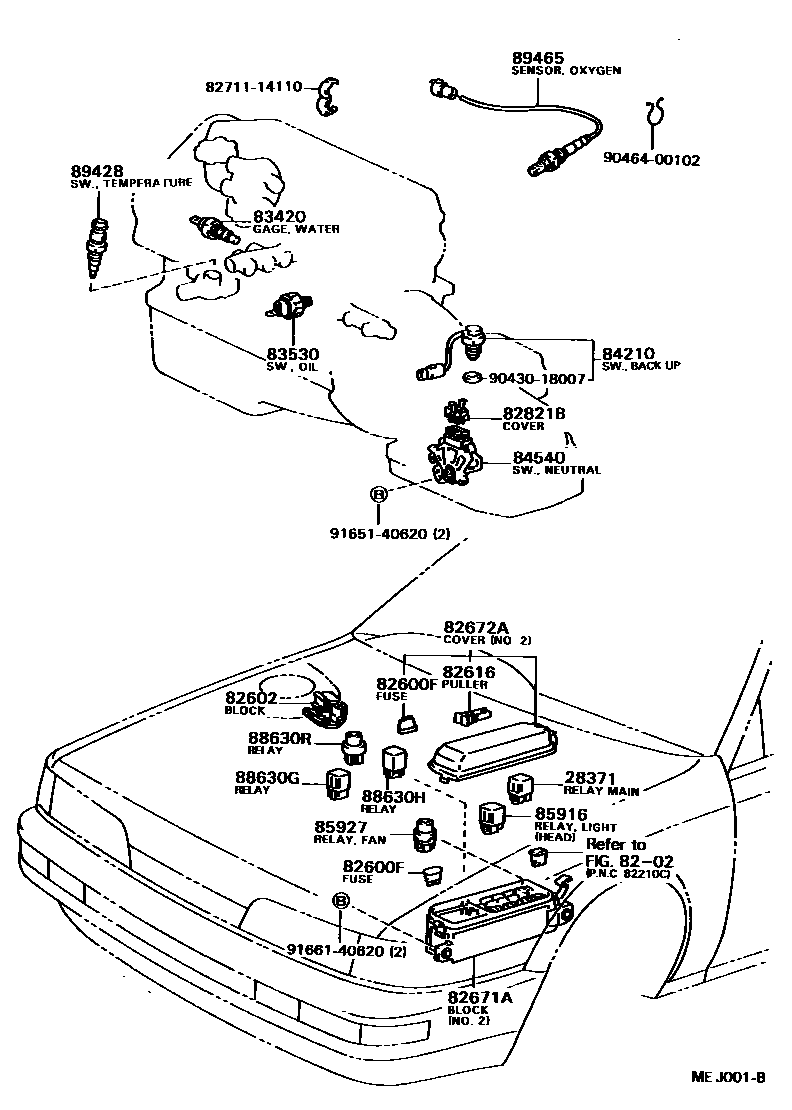

SWITCH & RELAY & COMPUTER
28371RELAY, IGNITION, NO.1
8202
82600FFUSE, FUSE BLOCK
10A
10A,10A
15A,15A
15A
20A,YELLOW,20A
20A,YELLOW
7.5A,7.5A
7.5A
82602BLOCK SUB-ASSY, RELAY
82616PULLER, FUSE
82671ABLOCK, JUNCTION
NO.1
NO.1
NO.2
82672ACOVER, JUNCTION BLOCK
NO.1
NO.2
NO.1
NO.2
83420GAGE ASSY, WATER TEMPERATURE SENDER
84210SWITCH ASSY, BACK-UP LAMP
85916RELAY, LIGHT CONTROL
TAIL LAMP,DENSO
HEADLAMP
85927RELAY, COOLING FAN
8904
88630GRELAY ASSY, COOLER
8904
88630RRELAY ASSY, COOLER, NO.3
89428SWITCH, TEMPERATURE DETECT, NO.2
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
9043018007
main90430-18007
9046400102
main90464-00102
9165140620
main91651-40620
9166140620
main91661-40620
24 parts on this diagram · 8 diagrams in section
