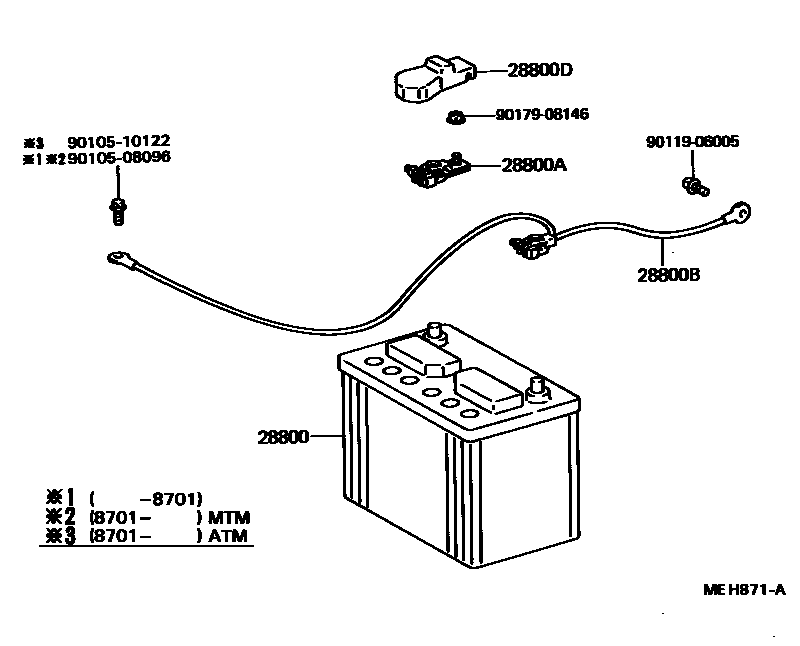

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i2VZFE..VZV21198802-198808

55D23L

main28800-72010i1SI,3SFE..SV2#198611-198710

34B19L(S),34B19L(S)

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i1SI,3SFE..SV2#198611-198710

28800BCABLE, BATTERY TO GROUND

main82123-32050i1SI,3SFE..SV2#198611-198701

main82123-32051i1SI,3SFE..SV2#198701-198710

main82123-32100i2VZFE..VZV21198802-198808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-32030i1SI,3SFE..SV2#198611-198710

9010508096

main90105-08096

9010510122

main90105-10122

9011906005

main90119-06005

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
