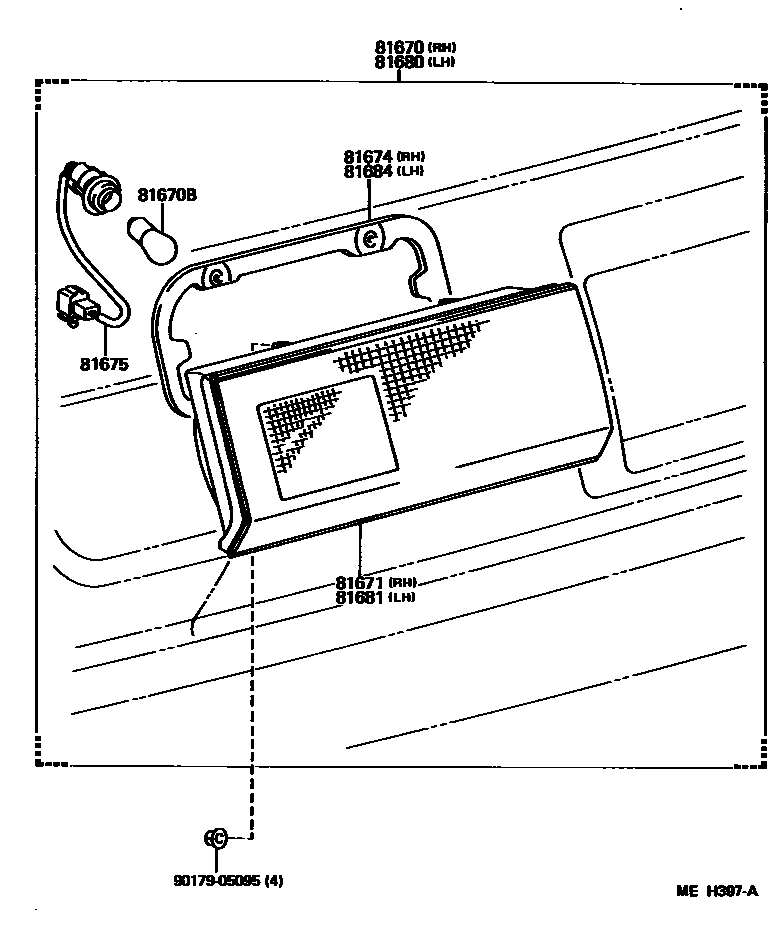

BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-32050iSV2#..WG198611-198904

81670BBULB(FOR BACK-UP LAMP)

main99132-11230×2iSV2#..WG198611-198710

12V 23W,12V 23W

81671LENS, BACK-UP LAMP, RH

main81671-32040iSV2#..WG198611-198904

81674GASKET, BACK-UP LAMP BODY, RH

main81674-32020iSV2#..WG198611-198904

81675SOCKET & WIRE, BACK-UP LAMP

main81675-32020×2iSV2#..WG198611-198904

81680LAMP ASSY, BACK UP, LH

main81680-32050iSV2#..WG198611-198904

81681LENS, BACK-UP LAMP, LH

main81681-32040iSV2#..WG198611-198904

81684GASKET, BACK UP LAMP BODY, LH

main81674-32020iSV2#..WG198611-198904

9017905095

main90179-05095

9 parts on this diagram · 1 diagram in section
