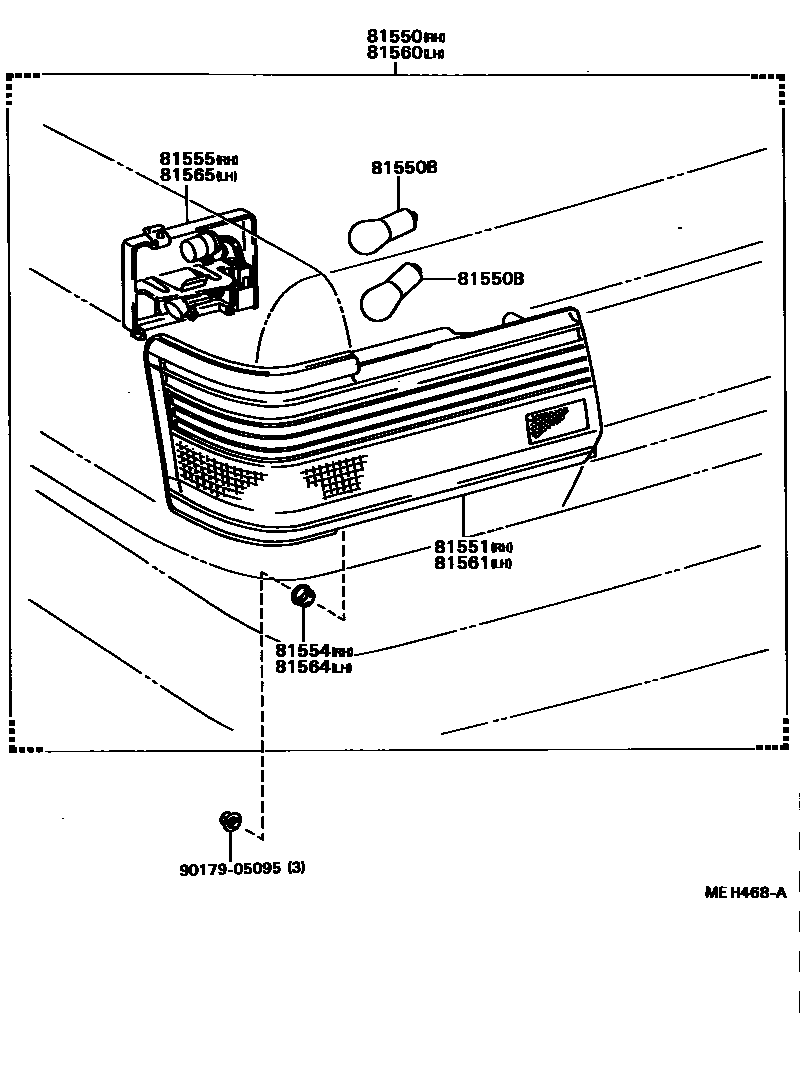

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-32050iSV2#,VZV21..SED198710-198808

main81550-32160iSV2#..WG198611-198904

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2iSV2#..WG198710-198904

12V 21W

main99132-11230×2iSV2#,VZV21..SED198710-198808

12V 23W

main99132-21210×2iSV2#198611-198710

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-32050iSV2#..SED198611-198710

main81551-32160iSV2#..WG198611-198904

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81558-20720iSV2#..SED198808-198904

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-32050iSV2#..SED198611-198710

main81555-32160iSV2#..WG198611-198904

81560LAMP ASSY, REAR COMBINATION, LH

main81560-32050iSV2#..SED198611-198710

main81560-32160iSV2#..WG198611-198904

81561LENS, REAR COMBINATION LAMP, LH

main81561-32050iSV2#..SED198808-198904

main81561-32160iSV2#..WG198611-198904

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81558-20720iSV2#..SED198808-198904

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-32160iSV2#..WG198710-198904

main81565-32050iSV2#..SED198808-198904

main81565-32160iSV2#..WG198611-198710

9017905095

main90179-05095

10 parts on this diagram · 2 diagrams in section
