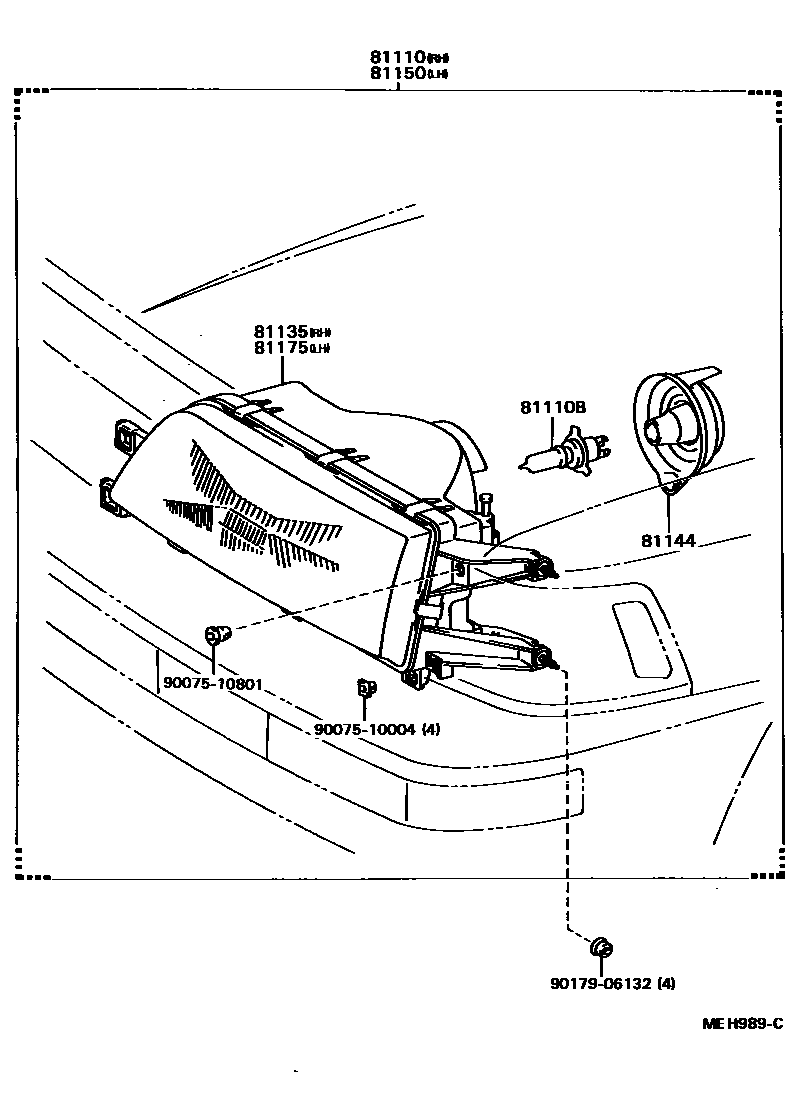

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-32150iSV2#198611-198710

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iSV2#198611-198710

12V 60/55W,*HAL *WH,12V 60/55W,*HAL,*WH

81135UNIT ASSY, HEADLAMP, RH

main81130-32150iSV2#198611-198710

81144COVER, HEADLAMP, NO.1

main81139-20730×2iSV2#198611-198710

81150HEADLAMP ASSY, LH

main81150-32150iSV2#198611-198710

81175UNIT ASSY, HEADLAMP, LH

main81170-32150iSV2#198611-198710

9007510004

main90075-10004

9007510801

main90075-10801

9017906132

main90179-06132

9 parts on this diagram · 1 diagram in section
