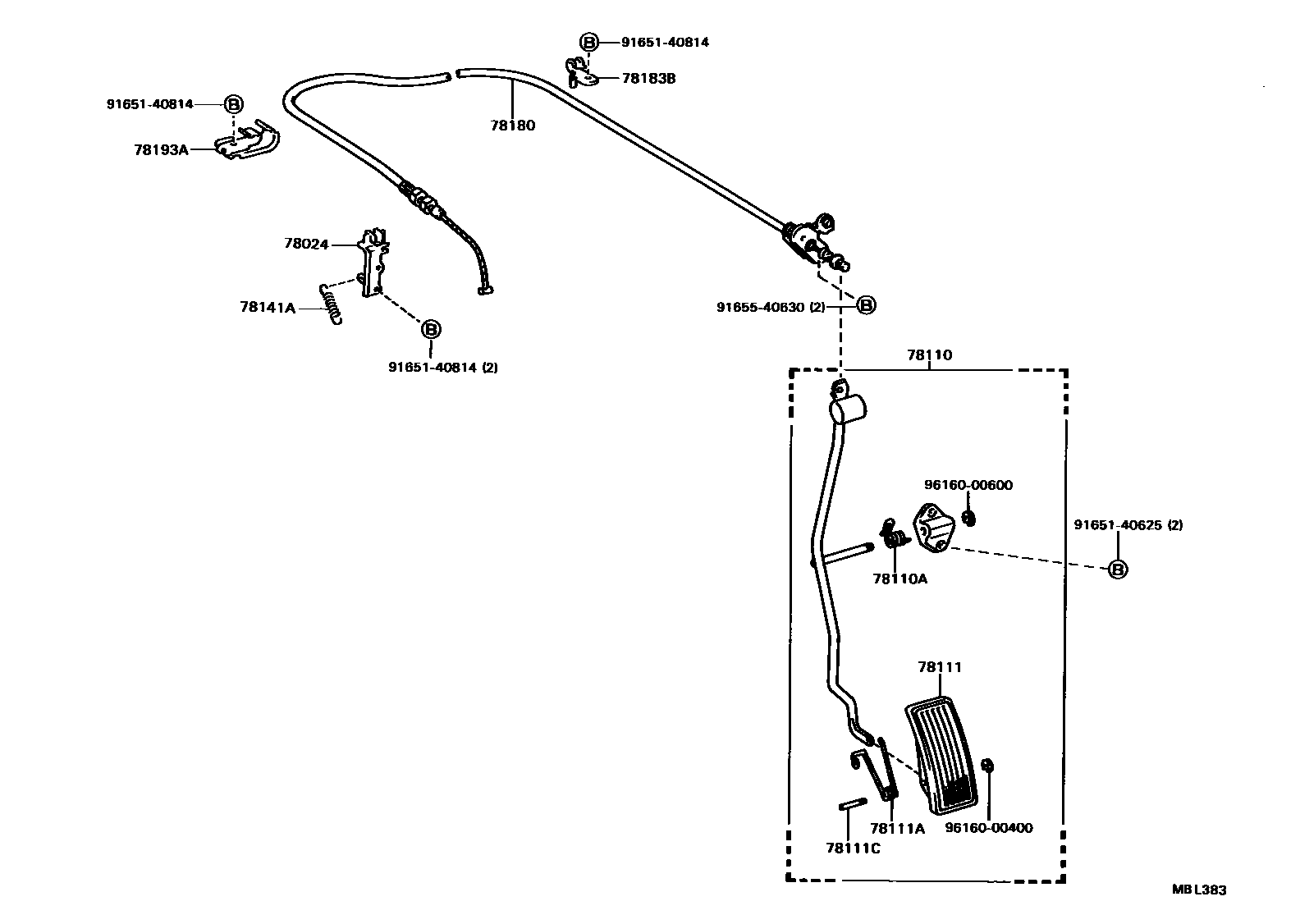

ACCELERATOR LINK

0001 1 0002 1 0003 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20010iSV20198611-198904

main78024-32070iSV21198611-198904

main78024-32110iVZV21198802-198808

78110ROD ASSY, ACCELERATOR PEDAL

main78120-32060iSV20198611-198904

main78120-32070iSV21..4FC198611-198710

main78120-32080iSV21..5F198611-198904

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iSV20; SV21..4FC198611-198710

main90508-23069iSV21..5F198611-198904

78111PEDAL, ACCELERATOR

main78111-12100iSV2#,VZV21198710-198808

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23003iSV2#198611-198710

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iSV2#198611-198710

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90507-10013iSV20..4FC198611-198904

main90507-11003iSV20..5F198611-198904

78180WIRE ASSY, ACCELERATOR

main78180-32130iSV20198611-198904

main78180-32160iSV21,VZV21..CSX,ULT198710-198808

W(CRUISE CONTROL)

main78180-32180iSV21198611-198904

main78180-32200iVZV21198802-198808

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20020iSV20198611-198904

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-32010iSV20198611-198904

9165140625

main91651-40625

9165140814

main91651-40814

9165540630

main91655-40630

9616000400

main96160-00400

9616000600

main96160-00600

15 parts on this diagram · 3 diagrams in section
