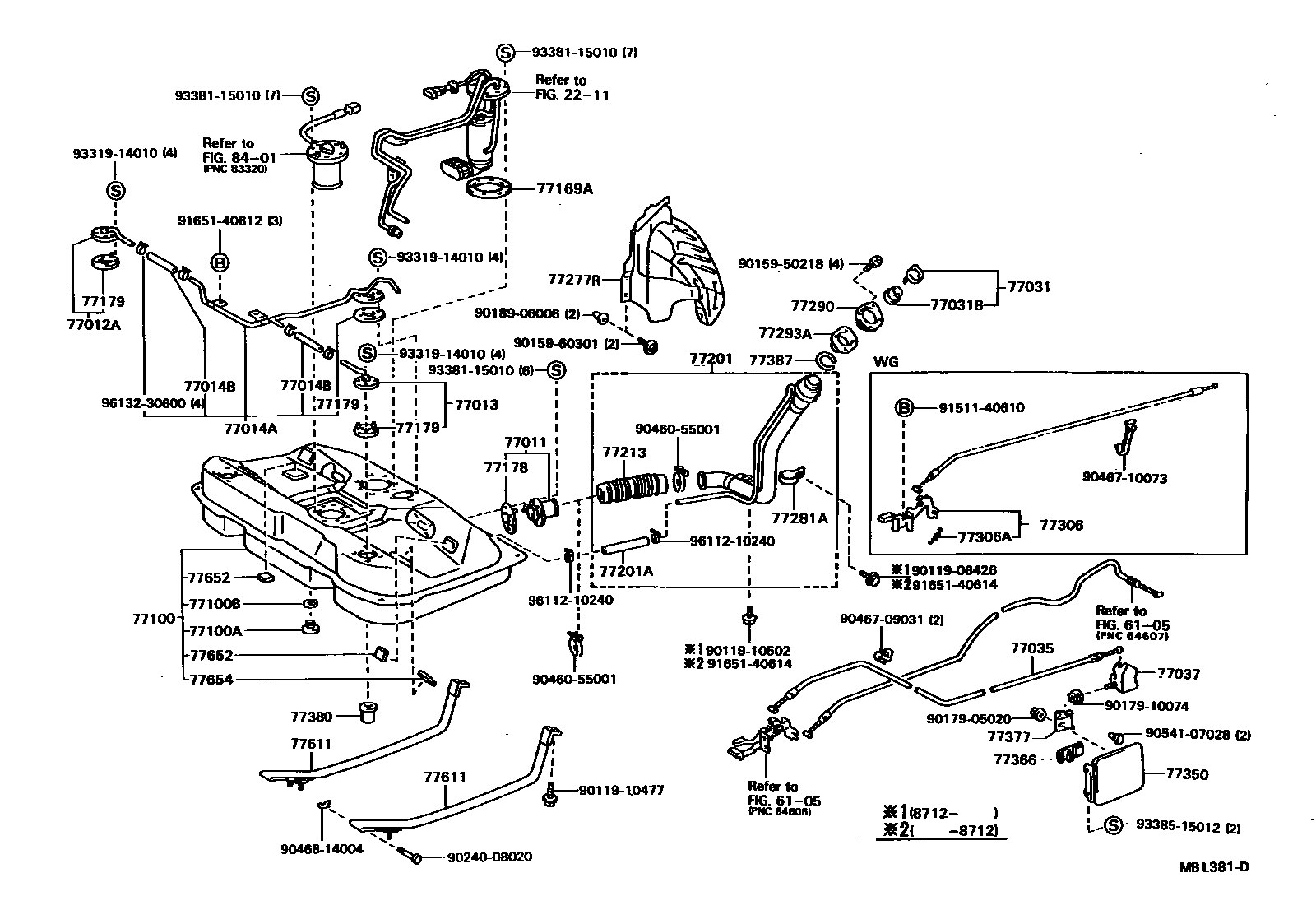

FUEL TANK & TUBE
2211
6105
77014BHOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
L=100
77031BGASKET (FOR FUEL TANK CAP)
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
sub77037-38010
77100TANK ASSY, FUEL
sub23206-74341
sub23206-74371
sub23206-74460
sub23206-74480
sub77001-32090
sub77001-32906
sub77017-20101
sub77017-20111
sub77017-32041
sub77017-32061
sub23206-74341
sub23206-74371
sub23206-74460
sub23206-74480
sub77001-39285
sub77001-39295
sub77017-20101
sub77017-20111
sub77017-32041
sub77017-32061
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179RETAINER, FUEL TANK MOUNTING, FRONT
77201PIPE SUB-ASSY, FUEL TANK INLET
sub77201-32080
sub77213-32020
sub77216-32030
sub77217-32021
sub77218-32020
sub77281-32010
sub90119-06347
sub90159-60357
sub90445-22002
sub90460-22002
sub90460-55003
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
L=200
77213HOSE, FUEL TANK SUB INLET
77277TUBE, FUEL RETURN, NO.1
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281ACLAMP, FUEL FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77387RING, FUEL INLET BOX
77611BAND, FUEL TANK
77652CUSHION, FUEL TANK, NO.1
77654CUSHION, FUEL TANK, NO.2
8401
9011906426
main90119-06426
9011910477
main90119-10477
9011910502
main90119-10502
9015950218
main90159-50218
9015960301
main90159-60301
9017905020
main90179-05020
9017910074
main90179-10074
9018906006
main90189-06006
9024008020
main90240-08020
9046055001
main90460-55001
9046709031
main90467-09031
9046710073
main90467-10073
9046814004
main90468-14004
9054107028
main90541-07028
9151140610
main91511-40610
9165140612
main91651-40612
9165140614
main91651-40614
9331914010
main93319-14010
9338115010
main93381-15010
9338515012
main93385-15012
9611210240
main96112-10240
9613230600
main96132-30600
58 parts on this diagram · 3 diagrams in section
