BATTERY CARRIER

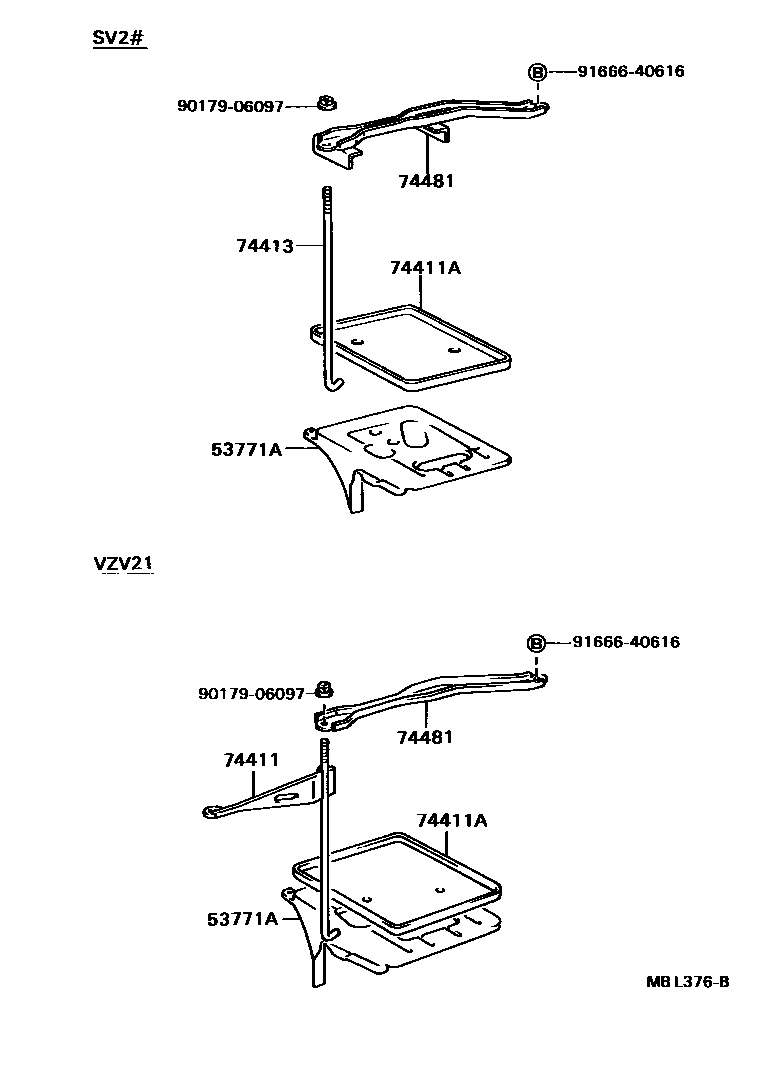

Parts diagram

53771ASUPPORT, BATTERY CARRIER

main53771-32020i198702-198710

74411CARRIER, BATTERY

main74403-32050i198802-198808

74411ATRAY, BATTERY

main74431-14030i198802-198808

main74431-14050i198611-198904

74413BOLT, BATTERY CLAMP

main74451-14010i198611-198904

74481CLAMP, BATTERY HOLD DOWN

main74404-32040i198611-198904

main74404-32050i198802-198808

9017906097

main90179-06097

9166640616

main91666-40616

7 parts on this diagram · 1 diagram in section
