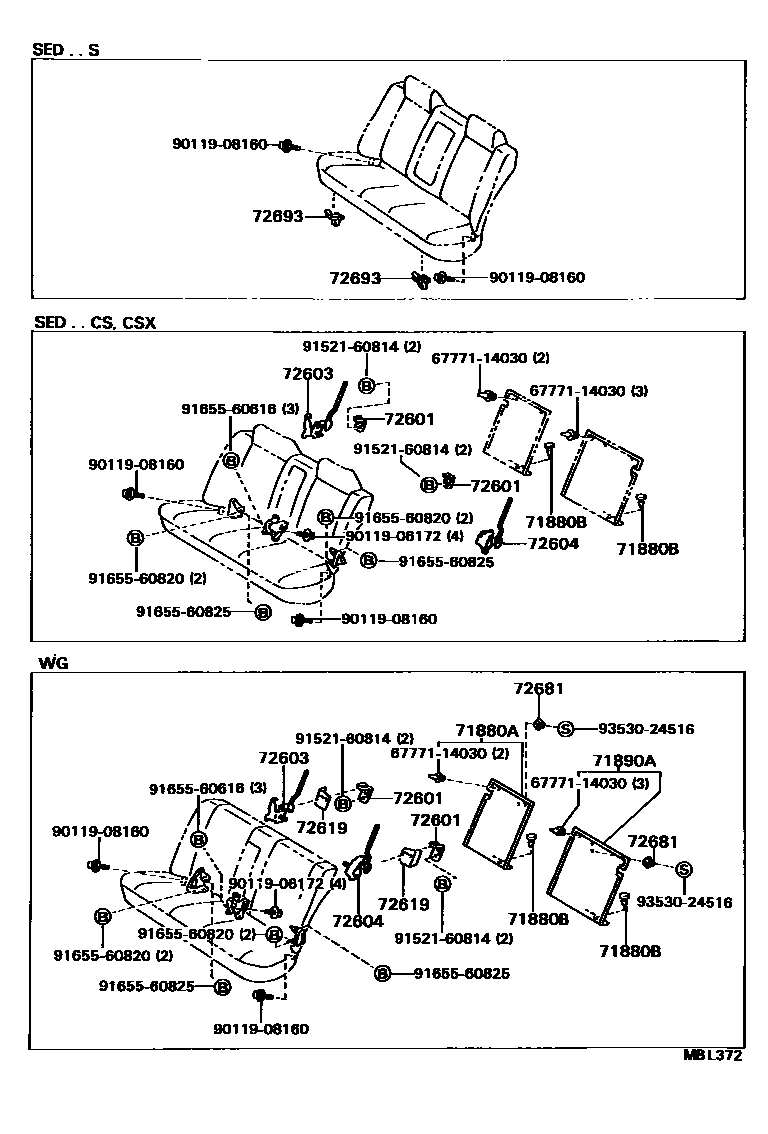

REAR SEAT & SEAT TRACK

0001 1 0002 1

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-32011-03iVZV21198802-198808

LIGHT GRAY,TRIM4#,8#

main71880-32020-03iSV2#..WG..(CS,S)198611-198710

GRAY,MEDIUM GRAY

main71880-32020-04iSV2#..WG..(CS,S)198710-198904

DARK BLUE,TRIM8#

main71880-32020-05iSV2#..WG..(CS,S)198710-198808

DARK BEIGE,TRIM4#

main71880-32030-03iSV21..WG..CSX198611-198710

GRAY,MEDIUM GRAY

main71880-32030-04iSV21..WG..CSX198710-198904

DARK BLUE,TRIM8#

main71880-32030-05iSV21..WG..CSX198611-198710

BEIGE,DARK BEIGE

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-06049-15×5iSV2#..WG198710-198809

DARK BEIGE,TRIM4#

main90467-06049-23×5iSV2#..WG198611-198710

GRAY,MEDIUM GRAY

main90467-06049-24×5iSV2#..WG198611-198710

BLUE,DARK BLUE

main90467-06049-E0×5iSV2#..WG198809-198904

DARK BEIGE,TRIM4#

main90467-06049-J1×5iSV2#..WG198809-198904

DARK BLUE,TRIM8#

main90467-09066×5iSV2#..SED..(CS,CSX)198611-198710

71890ACARPET ASSY, REAR SEATBACK BOARD, LH

main71890-32011-03iVZV21198802-198808

LIGHT GRAY,TRIM4#,8#

main71890-32020-03iSV2#..WG..(CS,S)198611-198710

GRAY,MEDIUM GRAY

main71890-32020-04iSV2#..WG..(CS,S)198710-198904

DARK BLUE,TRIM8#

main71890-32020-05iSV2#..WG..(CS,S)198710-198808

DARK BEIGE,TRIM4#

main71890-32030-03iSV21..WG..CSX198710-198904

MEDIUM GRAY,TRIM1#

main71890-32030-04iSV21..WG..CSX198710-198904

DARK BLUE,TRIM8#

main71890-32030-05iSV21..WG..CSX198710-198808

DARK BEIGE,TRIM4#

72601STRIKER SUB-ASSY, REAR SEAT LOCK

main72601-32010×2iSV2#..WG;SV2#,VZV21..SED..(CS,CSX,ULT)198710-198808

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72603-32010iVZV21198802-198808

main72630-32030iSV2#..SED..(CS,CSX); SV2#..WG198611-198710

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72604-32010iVZV21198802-198808

main72640-32030iSV2#..SED..(CS,CSX); SV2#..WG198710-198904

72619COVER, REAR SEATBACK LOCK STRIKER

main72615-32020-03iSV2#..WG198611-198710

RH,GRAY,MEDIUM GRAY

main72615-32020-04iSV2#..WG198611-198710

RH,BLUE,DARK BLUE

main72615-32020-05iSV2#..WG198611-198710

RH,BEIGE,DARK BEIGE

main72616-32020-03iSV2#..WG198611-198710

LH,GRAY,MEDIUM GRAY

main72616-32020-04iSV2#..WG198611-198710

LH,BLUE,DARK BLUE

main72616-32020-05iSV2#..WG198611-198710

LH,BEIGE,DARK BEIGE

72681HOOK, REAR SEATBACK LOCK, LOWER

main72681-16010-25×2iSV2#..WG198710-198904

DARK BEIGE,TRIM4#

main72681-16010-34×2iSV2#..WG198611-198710

BLUE,DARK BLUE

main72681-16010-43×2iSV2#..WG198611-198710

GRAY,MEDIUM GRAY

main72681-16010-J1×2iSV2#..WG198811-198904

DARK BLUE,TRIM8#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20010×2iSV2#..SED..S198611-198710

6777114030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14030

9011906172

main90119-06172

9011908160

main90119-08160

9152160814

main91521-60814

9165560616

main91655-60616

9165560820

main91655-60820

9165560825

main91655-60825

9353024516

main93530-24516

17 parts on this diagram · 2 diagrams in section
