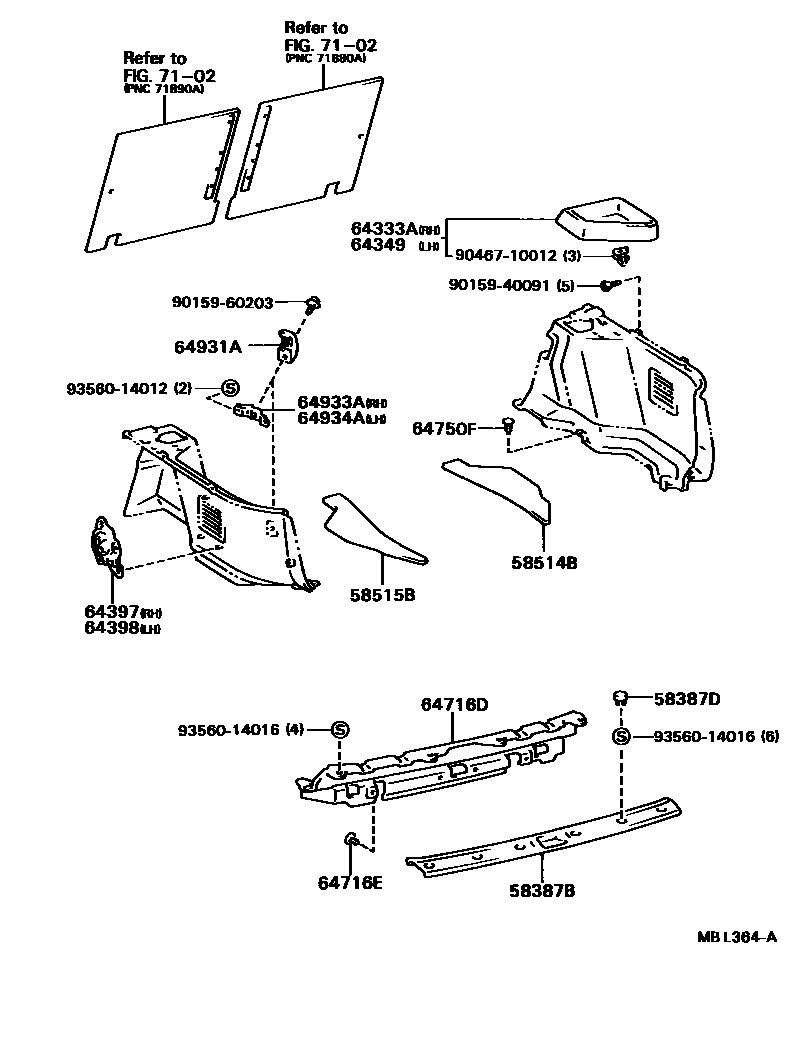

DECK BOARD & DECK TRIM COVER

58387BPLATE, REAR FLOOR FINISH

main58387-32010-03iSV2#..WG198710-198904

MEDIUM GRAY,TRIM1#

main58387-32010-04iSV2#..WG198611-198710

BLUE,DARK BLUE

main58387-32010-05iSV2#..WG198611-198710

BEIGE,DARK BEIGE

58387DPLUG, HOLE(FOR REAR FLOOR FINISH PLATE)

main90950-01503-05×6iSV2#..WG198710-198807

DARK BEIGE,TRIM4#

main90950-01503-13×6iSV2#..WG198710-198807

MEDIUM GRAY,TRIM1#

main90950-01503-14×6iSV2#..WG198611-198710

BLUE,DARK BLUE

main90950-01503-23×6iSV2#..WG198710-198807

LIGHT GRAY,TRIM1#,4#

58514BMAT, FLOOR, REAR RH

main58514-32010-01iSV2#..WG198611-198710

BLACK,BLACK

58515BMAT, FLOOR, REAR LH

main58515-32010-01iSV2#..WG198611-198710

BLACK,BLACK

64333ACOVER, TONNEAU SIDE, RH

main64333-32020-03iSV2#..WG198611-198710

GRAY,MEDIUM GRAY

main64333-32020-04iSV2#..WG198611-198710

BLUE,DARK BLUE

main64333-32020-05iSV2#..WG198611-198710

BEIGE,DARK BEIGE

64349COVER, TONNEAU SIDE, LH

main64349-32010-03iSV2#..WG198611-198710

GRAY,MEDIUM GRAY

main64349-32010-04iSV2#..WG198710-198904

DARK BLUE,TRIM8#

main64349-32010-05iSV2#..WG198710-198808

DARK BEIGE,TRIM4#

64397HOLDER, TONNEAU COVER SIDE, RH

main64397-32020iSV2#..WG..(CS,S)198611-198904

64398HOLDER, TONNEAU COVER SIDE, LH

main64398-32010iSV2#..WG..(CS,S)198611-198904

64716DCOVER, DECK TRIM, REAR

main64716-32060-03iSV2#..WG..(CS,S)198611-198710

GRAY,MEDIUM GRAY

main64716-32060-04iSV2#..WG..(CS,S)198710-198904

DARK BLUE,TRIM8#

main64716-32060-05iSV2#..WG..(CS,S)198710-198808

DARK BEIGE,TRIM4#

main64716-32070-03iSV21..WG..CSX198611-198710

GRAY,MEDIUM GRAY

main64716-32070-04iSV21..WG..CSX198611-198710

BLUE,DARK BLUE

main64716-32070-05iSV21..WG..CSX198611-198710

BEIGE,DARK BEIGE

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-06049-15×6iSV2#..WG198611-198710

BEIGE,DARK BEIGE

main90467-06049-23×6iSV2#..WG198611-198710

GRAY,MEDIUM GRAY

main90467-06049-24×6iSV2#..WG198611-198710

BLUE,DARK BLUE

main90467-06049-E0×6iSV2#..WG198809-198904

DARK BEIGE,TRIM4#

main90467-06049-J1×6iSV2#..WG198809-198904

DARK BLUE,TRIM8#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-06049-15×2iSV2#..WG198611-198710

BEIGE,DARK BEIGE

main90467-06049-23×2iSV2#..WG198710-198904

MEDIUM GRAY,TRIM1#

main90467-06049-24×2iSV2#..WG198611-198710

BLUE,DARK BLUE

main90467-06049-E0×2iSV2#..WG198809-198904

DARK BEIGE,TRIM4#

main90467-06049-J1×2iSV2#..WG198809-198904

DARK BLUE,TRIM8#

64931AHANGER, TONNEAU COVER

main64931-32010-03×2iSV2#..WG198611-198710

GRAY,MEDIUM GRAY

main64931-32010-04×2iSV2#..WG198611-198710

BLUE,DARK BLUE

main64931-32010-05×2iSV2#..WG198611-198710

BEIGE,DARK BEIGE

64933ABRACKET, TONNEAU COVER HOLDER, RH

main64933-32010iSV2#..WG198611-198710

64934ABRACKET, TONNEAU COVER HOLDER, LH

main64934-32010iSV2#..WG198611-198710

7102REAR SEAT & SEAT TRACK

→ Go to FIG 71-02

9015940091

main90159-40091

9015960203

main90159-60203

9046710012

main90467-10012

9356014012

main93560-14012

9356014016

main93560-14016

20 parts on this diagram · 1 diagram in section
