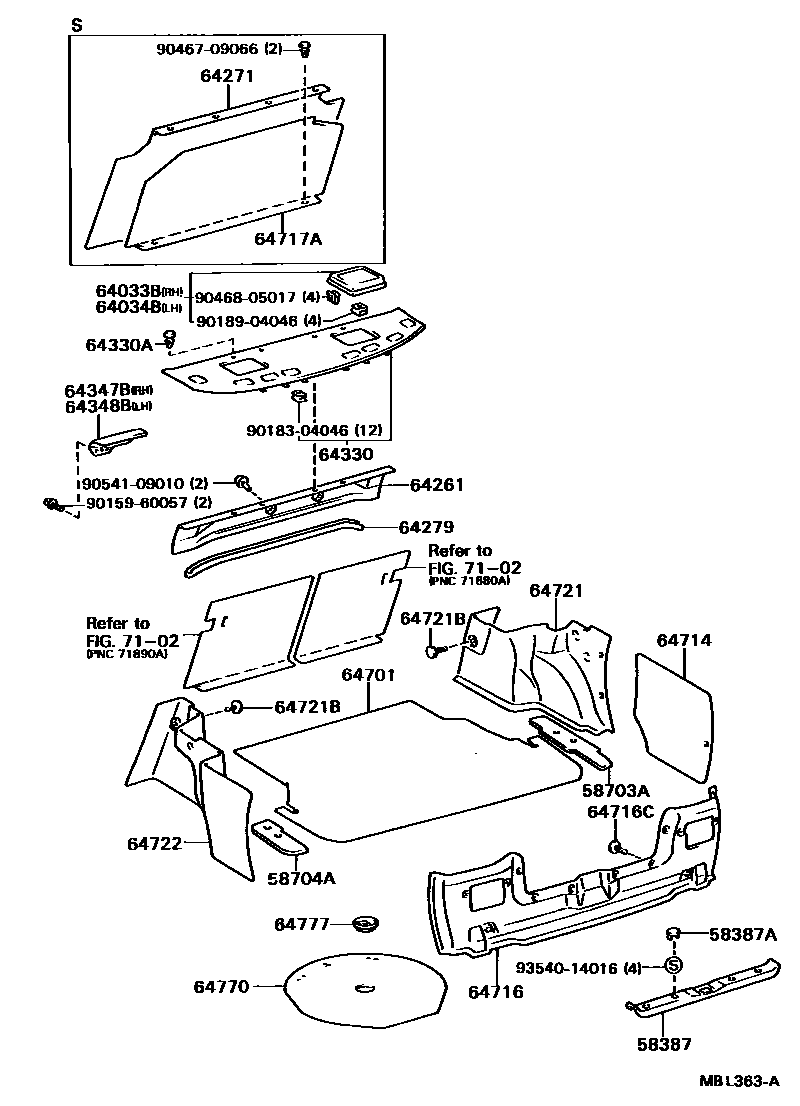

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-32020-03iSV2#..SED198808-198904

LIGHT GRAY,LIGHT GRAY,TRIM1#,4#,8#

58387APLUG, HOLE(FOR REAR FLOOR FINISH PLATE)

main90950-01503-05×4iSV2#..SED198710-198807

DARK BEIGE,TRIM4#

main90950-01503-13×4iSV2#..SED198710-198807

MEDIUM GRAY,TRIM1#

main90950-01503-14×4iSV2#..SED198710-198807

DARK BLUE,TRIM8#

main90950-01503-23×4iSV2#..SED198710-198807

LIGHT GRAY,TRIM1#,4#,8#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-32010iSV2#..SED198611-198710

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-32010iSV2#..SED..(CS,CSX)198611-198710

main58704-32030iSV2#..SED..4FC..S; SV20..SED..5F..S198710-198904

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-22040iSV21,VZV21..SED..(CSX,ULT)198710-198808

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-22040iSV21,VZV21..SED..(CSX,ULT)198710-198808

64261GARNISH, ROOM PARTITION

main64261-32010-03iSV2#..SED..(CS,CSX)198611-198710

GRAY,MEDIUM GRAY

main64261-32010-04iSV2#..SED..(CS,CSX)198611-198710

BLUE,DARK BLUE

main64261-32010-05iSV2#..SED..(CS,CSX)198611-198710

BEIGE,DARK BEIGE

64271BOARD, ROOM PARTITION, NO.1

main64271-32030iSV2#..SED..4FC..S; SV20..SED..5F..S198710-198904

64279PROTECTOR, ROOM PARTITION

main64279-32020-03iSV2#..SED..(CS,CSX)198611-198710

GRAY,MEDIUM GRAY

main64279-32020-04iSV2#..SED..(CS,CSX)198611-198710

BLUE,DARK BLUE

main64279-32020-05iSV2#..SED..(CS,CSX)198611-198710

BEIGE,DARK BEIGE

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-32301-03iSV21..SED..CSX198802-198904

MEDIUM GRAY,TRIM1#

main64330-32301-04iSV21,VZV21..SED..(CSX,ULT)198802-198808

DARK BLUE,TRIM8#

main64330-32301-05iSV21,VZV21..SED..(CSX,ULT)198802-198808

DARK BEIGE,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046×4iSV21..SED..CSX198808-198904

main90467-08046-05×4iSV2#..SED198611-198710

BEIGE,DARK BEIGE

main90467-08046-13×4iSV2#..SED198611-198710

GRAY,MEDIUM GRAY

main90467-08046-24×4iSV2#..SED198611-198710

BLUE,DARK BLUE

64347BBRACKET, PACKAGE TRAY REINFORCEMENT, RH

main64347-32020iSV21..SED..CSX198808-198904

64348BBRACKET, PACKAGE TRAY REINFORCEMENT, LH

main64348-32010iSV2#..SED198611-198710

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-32040-03iSV2#..SED198611-198710

GRAY,LIGHT GRAY

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-32030-03iSV2#..SED..S198611-198710

GRAY,LIGHT GRAY

main64714-32040-03iSV2#..SED..(CS,CSX)198808-198904

LIGHT GRAY,LIGHT GRAY,TRIM1#,4#,8#

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-32040-03iSV2#..SED..S198611-198710

GRAY,LIGHT GRAY

main64716-32050-03iSV2#..SED..(CS,CSX)198611-198710

GRAY,LIGHT GRAY

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-33×12iSV2#..SED198611-198710

GRAY,GRAY

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-32030-03iSV2#..SED..S198611-198710

GRAY,LIGHT GRAY

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-32030-03iSV2#..SED..S198611-198710

GRAY,LIGHT GRAY

main64721-32050-03iSV2#..SED..(CS,CSX)198611-198708

GRAY,LIGHT GRAY

main64721-32110-03iSV2#..SED..(CS,CSX)198808-198904

LIGHT GRAY,LIGHT GRAY,TRIM1#,4#,8#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main90467-07042-03×4iSV2#,VZV21..SED..(CS,CSX,ULT); SV2#..SED..S198710-198807

GRAY,TRIM1#,4#,8#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-32030-03iSV2#..SED..4FC..S; SV20..SED..5F..S198710-198904

LIGHT GRAY,TRIM1#,4#,8#

main64722-32050-03iSV2#..SED..(CS,CSX)198611-198708

GRAY,LIGHT GRAY

main64722-32110-03iSV2#..SED..(CS,CSX)198808-198904

LIGHT GRAY,LIGHT GRAY,TRIM1#,4#,8#

64770COVER ASSY, SPARE WHEEL

main64771-32040iSV2#,VZV21..SED198710-198808

64777CLAMP, SPARE WHEEL COVER

main64777-32020iSV2#..SED198611-198612

main64777-32030iSV2#..SED198808-198904

7102REAR SEAT & SEAT TRACK

→ Go to FIG 71-02

9015960057

main90159-60057

9018304046

main90183-04046

9018904046

main90189-04046

9046709066

main90467-09066

9046805017

main90468-05017

9054109010

main90541-09010

9354014016

main93540-14016

31 parts on this diagram · 1 diagram in section
