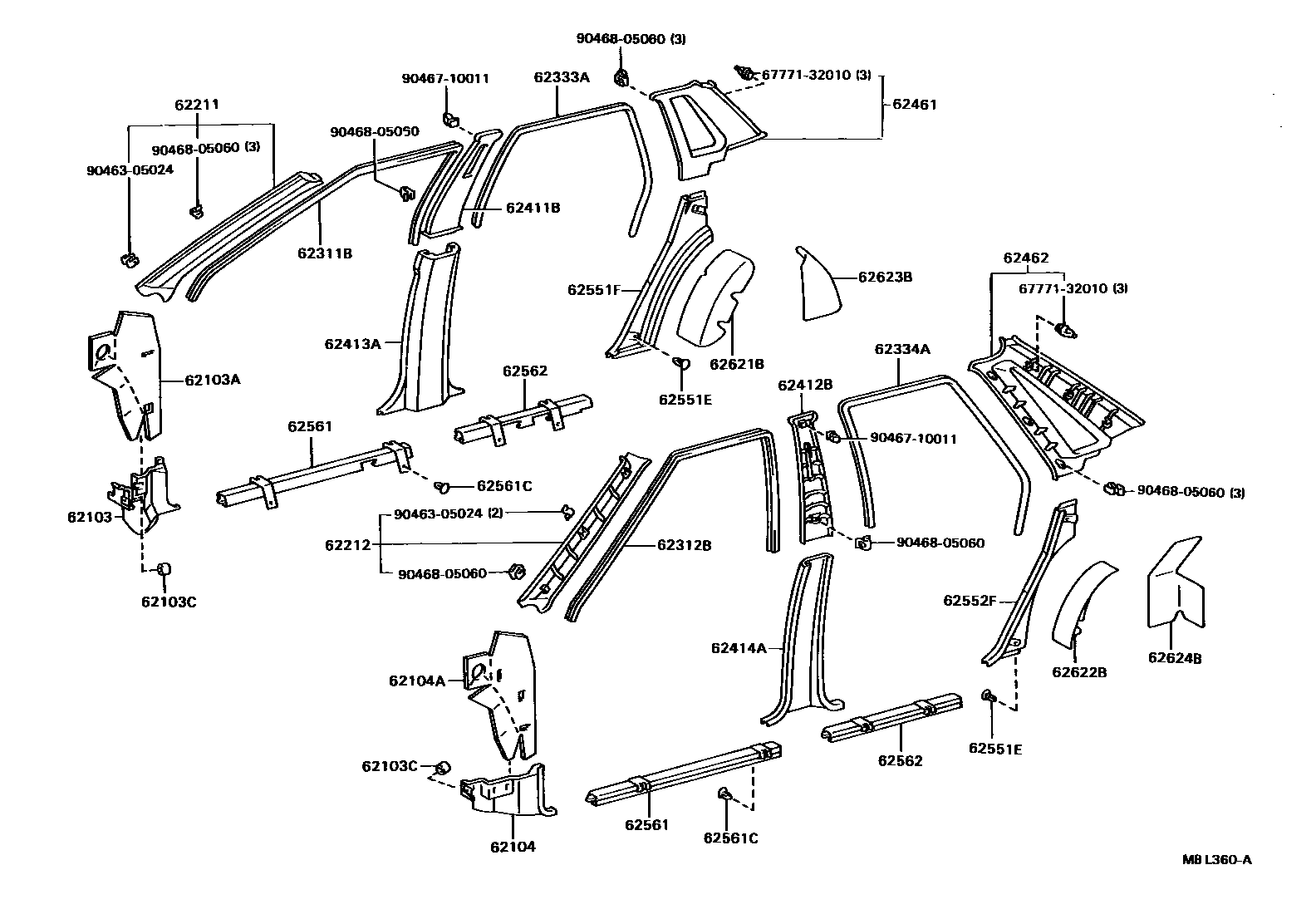

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-32030-03iSV2#198710-198904

MEDIUM GRAY,TRIM1#

main62101-32030-04iSV2#198611-198710

BLUE,DARK BLUE

main62101-32030-05iSV2#198611-198710

BEIGE,DARK BEIGE

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-32030iSV2#198611-198710

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-06074×2iSV2#198611-198710

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-32080-03iSV2#198710-198904

MEDIUM GRAY,TRIM1#

main62102-32080-04iSV2#198611-198710

BLUE,DARK BLUE

main62102-32080-05iSV2#198611-198710

BEIGE,DARK BEIGE

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-32030iSV2#198611-198710

62211GARNISH, FRONT PILLAR, RH

main62210-32050-04iVZV21198802-198808

DARK BLUE,TRIM8#

main62210-32050-05iVZV21198802-198808

DARK BEIGE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62220-32050-04iVZV21198802-198808

DARK BLUE,TRIM8#

main62220-32050-05iVZV21198802-198808

DARK BEIGE,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-32050-03iSV2#198611-198710

GRAY,MEDIUM GRAY

main62311-32050-04iSV2#198808-198904

DARK BLUE,DARK BLUE,TRIM8#

main62311-32050-05iSV2#,VZV21198710-198808

DARK BEIGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-32050-03iSV2#198611-198710

GRAY,MEDIUM GRAY

main62312-32050-04iSV2#198611-198710

BLUE,DARK BLUE

main62312-32050-05iSV2#198611-198710

BEIGE,DARK BEIGE

62333ATRIM, REAR DOOR OPENING, RH

main62333-32030-03iSV2#198710-198904

MEDIUM GRAY,TRIM1#

main62333-32030-04iSV2#,VZV21198710-198808

DARK BLUE,TRIM8#

main62333-32030-05iSV2#198611-198710

BEIGE,DARK BEIGE

62334ATRIM, REAR DOOR OPENING, LH

main62334-32010-03iSV2#198710-198904

MEDIUM GRAY,TRIM1#

main62334-32010-04iSV2#198611-198710

BLUE,DARK BLUE

main62334-32010-05iSV2#198611-198710

BEIGE,DARK BEIGE

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-32090-03iSV2#198611-198710

GRAY,MEDIUM GRAY

main62411-32090-04iSV2#198611-198710

BLUE,DARK BLUE

main62411-32090-05iSV2#198611-198710

BEIGE,DARK BEIGE

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-32090-03iSV2#198710-198904

MEDIUM GRAY,TRIM1#

main62412-32090-04iSV2#198808-198904

DARK BLUE,DARK BLUE,TRIM8#

main62412-32090-05iSV2#,VZV21198710-198808

DARK BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-32020-03iSV2#198710-198904

MEDIUM GRAY,TRIM1#

main62413-32020-04iSV2#,VZV21198710-198808

DARK BLUE,TRIM8#

main62413-32020-05iSV2#198611-198710

BEIGE,DARK BEIGE

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-32020-03iSV2#198611-198710

GRAY,MEDIUM GRAY

main62414-32020-04iSV2#,VZV21198710-198808

DARK BLUE,TRIM8#

main62414-32020-05iSV2#198611-198710

BEIGE,DARK BEIGE

62461GARNISH, ROOF SIDE TRIM, RH

main62470-32160-04iVZV21198802-198808

DARK BLUE,TRIM8#

main62470-32160-05iVZV21198802-198808

DARK BEIGE,TRIM4#

62462GARNISH, ROOF SIDE TRIM, LH

main62480-32160-04iVZV21198802-198808

DARK BLUE,TRIM8#

main62480-32160-05iVZV21198802-198808

DARK BEIGE,TRIM4#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-06018-01×4iSV2#198611-198710

BLACK,BLACK

62551FGARNISH, REAR SEAT SIDE, RH

main62551-32020-03iSV2#198611-198710

GRAY,MEDIUM GRAY

main62551-32020-04iSV2#198808-198904

DARK BLUE,DARK BLUE,TRIM8#

main62551-32020-05iSV2#,VZV21198710-198808

DARK BEIGE,TRIM4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-32020-03iSV2#198611-198710

GRAY,MEDIUM GRAY

main62552-32020-04iSV2#198808-198904

DARK BLUE,DARK BLUE,TRIM8#

main62552-32020-05iSV2#,VZV21198710-198808

DARK BEIGE,TRIM4#

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-32020iSV2#198611-198710

RH

main62562-32020iSV2#,VZV21198710-198808

LH

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-11021-01×6iSV2#198808-198904

BLACK,BLACK,TRIM1#,4#,8#

sub90467-11068

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-32020iSV2#198611-198710

RH

main62564-32020iSV2#198611-198710

LH

62621BPAD, QUARTER WHEEL HOUSE, INNER FRONT RH

main67812-12010iSV2#198611-198710

62622BPAD, QUARTER WHEEL HOUSE, INNER FRONT LH

main67812-12010iSV2#,VZV21198710-198808

62623BPAD, QUARTER WHEEL HOUSE, INNER REAR RH

main62623-32010iSV2#198611-198710

62624BPAD, QUARTER WHEEL HOUSE, INNER REAR LH

main62624-32010iSV2#198611-198710

6777132010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32010

9046305024

main90463-05024

9046710011

main90467-10011

9046805060

main90468-05060

31 parts on this diagram · 2 diagrams in section
