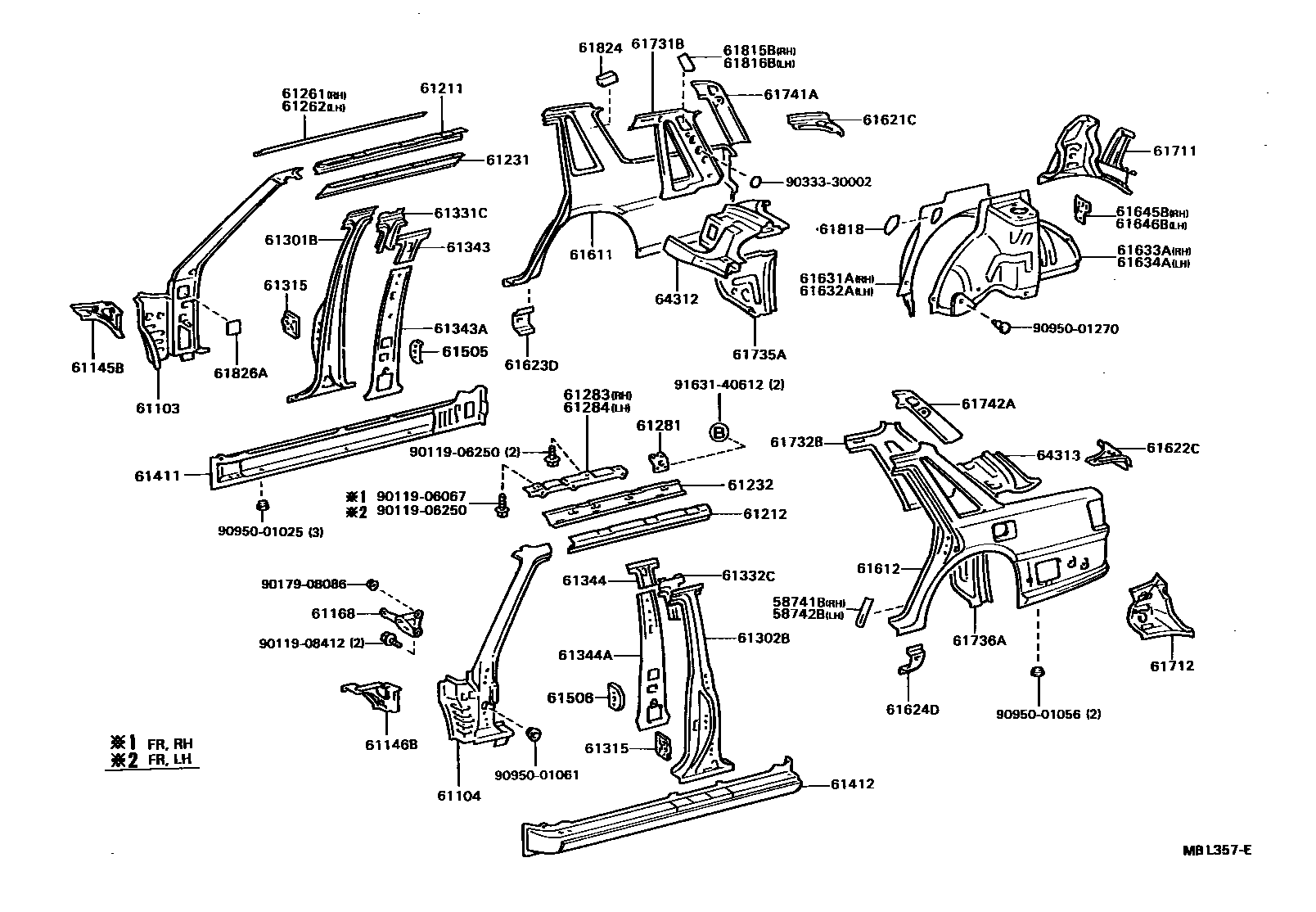

SIDE MEMBER

0001 1 0002 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12060iSV2#198808-198904

main58741-32010iVZV21198802-198808

W(REAR SPOILER)

58742BPROTECTOR, QUARTER PANEL, LH

main58741-12060iSV2#198808-198904

main58742-32010iVZV21198802-198808

W(REAR SPOILER)

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-32300iVZV21198802-198808

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-32320iVZV21198802-198808

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-32010iSV2#198808-198904

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-32010iSV2#198611-198710

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-32010iSV2#198611-198710

61211RAIL, ROOF SIDE, OUTER RH

main61211-32030iSV2#..SED198611-198710

main61211-32040iSV2#..WG198611-198904

61212RAIL, ROOF SIDE, OUTER LH

main61212-32030iVZV21198802-198808

main61212-32040iSV2#..WG198611-198904

61231RAIL, ROOF SIDE, INNER RH

main61231-32140iVZV21198802-198808

61232RAIL, ROOF SIDE, INNER LH

main61232-32140iVZV21198802-198808

61261CHANNEL, ROOF DRIP, RH

main61261-32030iSV2#..SED198611-198710

main61261-32040iSV2#..WG198611-198904

61262CHANNEL, ROOF DRIP, LH

main61262-32030iSV2#..SED198808-198904

main61262-32040iSV2#..WG198611-198904

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-32030×2iVZV21198802-198808

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-32030iVZV21198802-198808

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-32030iVZV21198802-198808

61301BPILLAR, CENTER BODY, OUTER RH

main61301-32900iSV2#198611-198710

61302BPILLAR, CENTER BODY, OUTER LH

main61302-32900iSV2#198611-198710

61315RETAINER, DOOR LOCK STRIKER PLATE

main61505-32020×2iSV2#198611-198710

61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH

main61331-32010iSV2#,VZV21198710-198808

61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH

main61332-32010iSV2#,VZV21198710-198808

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-32040iSV2#198611-198710

61343APILLAR, CENTER BODY, INNER RH

main61343-32900iSV2#198611-198710

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-32040iSV2#198611-198710

61344APILLAR, CENTER BODY, INNER LH

main61344-32900iSV2#,VZV21198710-198808

61411PANEL, ROCKER, OUTER RH

main61401-32050iVZV21198802-198808

61412PANEL, ROCKER, OUTER LH

main61402-32050iVZV21198802-198808

61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

main61505-32020iSV2#,VZV21198710-198808

61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

main61505-32020iSV2#,VZV21198710-198808

61611PANEL, QUARTER, RH

main61601-32907iSV2#..SED198611-198710

main61601-32911iSV2#..WG198611-198904

61612PANEL, QUARTER, LH

main61602-32907iSV2#..SED..(CS,S)198611-198904

main61602-32908iVZV21198802-198808

main61602-32917iSV2#..WG..(CS,S)198611-198904

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-32030iSV2#..SED198611-198710

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-32030iSV2#..SED198611-198710

61623DEXTENSION, QUARTER PANEL, FRONT RH

main61623-32020iSV2#198611-198710

61624DEXTENSION, QUARTER PANEL, FRONT LH

main61624-32020iSV2#198611-198710

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-32030iSV2#..SED198710-198710

main61631-32050iSV2#..WG198710-198904

main61631-32900iSV2#..SED198611-198710

main61631-32901iSV2#..WG198611-198710

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-32030iSV2#..SED198808-198904

main61632-32050iSV2#..WG198710-198904

main61632-32900iSV2#..SED198611-198710

main61632-32901iSV2#..WG198611-198710

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-32902iSV2#..SED..S198611-198710

main61603-32903iSV2#..SED..(CS,CSX)198611-198710

main61603-32906iSV2#..WG198611-198904

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-32902iSV2#..SED..4FC..S; SV20..SED..5F..S198710-198904

main61604-32903iSV2#..SED..(CS,CSX)198611-198710

main61604-32906iSV2#..WG198611-198904

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-32030iSV2#198710-198710

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-32020iSV2#198808-198904

61711PANEL, ROOF SIDE, OUTER RH

main61711-32900iVZV21198802-198808

main61711-32901iSV2#..WG198611-198904

61712PANEL, ROOF SIDE, OUTER LH

main61712-32900iSV2#,VZV21..SED198710-198808

main61712-32901iSV2#..WG198611-198904

61731BPANEL, ROOF SIDE, INNER RH

main61731-32030iVZV21198802-198808

main61731-32040iVZV21198802-198808

W(MOON ROOF)

61732BPANEL, ROOF SIDE, INNER LH

main61732-32030iVZV21198802-198808

main61732-32040iVZV21198802-198808

W(MOON ROOF)

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-32030iSV2#..WG198611-198904

main61735-32901iSV2#..SED198611-198710

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-32030iSV2#..WG198611-198904

main61736-32901iSV2#..SED198611-198710

61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH

main61741-32040iSV2#..WG198611-198904

main61741-32900iSV2#..SED198611-198710

61742AREINFORCEMENT, BACK DOOR OPENING, UPPER LH

main61742-32030iSV2#..WG198611-198904

main61742-32900iSV2#,VZV21..SED198710-198808

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-32020iSV2#..SED198611-198710

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61815-32020iSV2#..SED198611-198710

61818COVER, ROOF SIDE, INNER UPPER

main61817-32020×2iSV2#198611-198710

61824PLATE, NOISE CONTROL, NO.1

main61824-12010×4iSV2#..SED198611-198710

61826APLATE, NOISE CONTROL, NO.3

main61826-32010×2iSV2#198611-198701

main62939-23010×2iSV2#198701-198710

64312BRACKET, PACKAGE TRAY, RH

main64312-32900iSV2#..SED198611-198710

64313BRACKET, PACKAGE TRAY, LH

main64313-32900iSV2#..SED198611-198710

9011906067

main90119-06067

9011906250

main90119-06250

9011908412

main90119-08412

9017908086

main90179-08086

9033330002

main90333-30002

9095001025

main90950-01025

9095001056

main90950-01056

9095001061

main90950-01061

9095001270

main90950-01270

9163140612

main91631-40612

66 parts on this diagram · 2 diagrams in section
