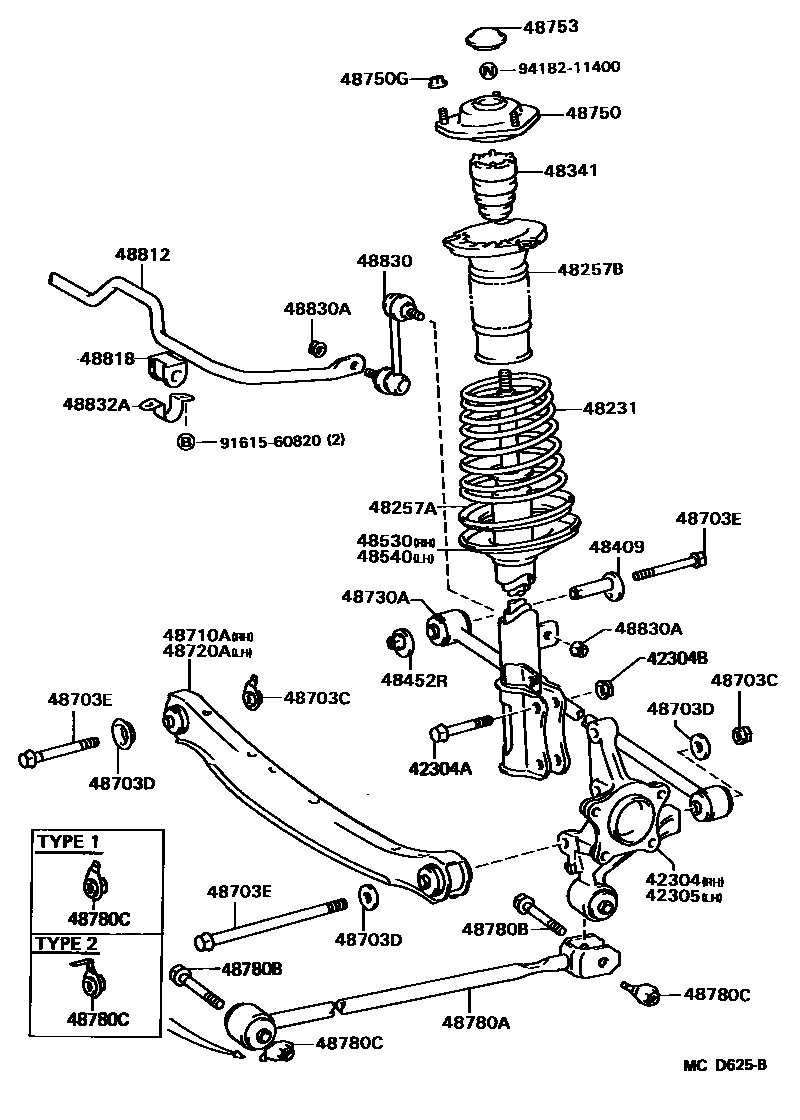

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304ABOLT (FOR REAR AXLE CARRIER)
42304BNUT (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
48231SPRING, COIL, REAR
48257AINSULATOR, REAR COIL SPRING, LOWER
48257BINSULATOR, REAR COIL SPRING, UPPER
48341BUMPER, REAR SPRING
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
sub48530-32060
48540ABSORBER ASSY, SHOCK, REAR LH
sub48540-32060
48703CNUT(FOR REAR SUSPENSION ARM)
ARM NO.1 X BODY
ARM X CARRIER
48703DWASHER(FOR REAR SUSPENSION ARM)
ARM X CARRIER
ARM NO.1 X BODY
ARM NO.1 X CARRIER
48703EBOLT(FOR REAR SUSPENSION ARM)
*12-1.25PX80-20,*12-1.25PX80-20,ARM NO.2
*12-1.25PX80-20
*12-1.25PX74.5-25,*12-1.25PX74.5-25,ARM NO.1
*12-1.25PX74.5-25
*14-1.5PX248-30
*14-1.5PX248-30,*14-1.50PX243-25
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
sub48710-20220
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
sub48720-20090
48750SUPPORT ASSY, REAR SUSPENSION
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48753COVER, REAR SUSPENSION SUPPORT
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
*12-1.25PX82-26
48780CNUT(FOR STRUT ROD)
CARRIER SIDE
BODY SIDE, TYPE 1
BODY SIDE,TYPE 1
BODY SIDE,TYPE 2
BODY SIDE, TYPE 2
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
sub48818-12150
48830ANUT(FOR REAR STABILIZER LINK)
48832ABRACKET, REAR STABILIZER BAR, NO.1
9161560820
main91615-60820
9418211400
main94182-11400
31 parts on this diagram · 1 diagram in section
