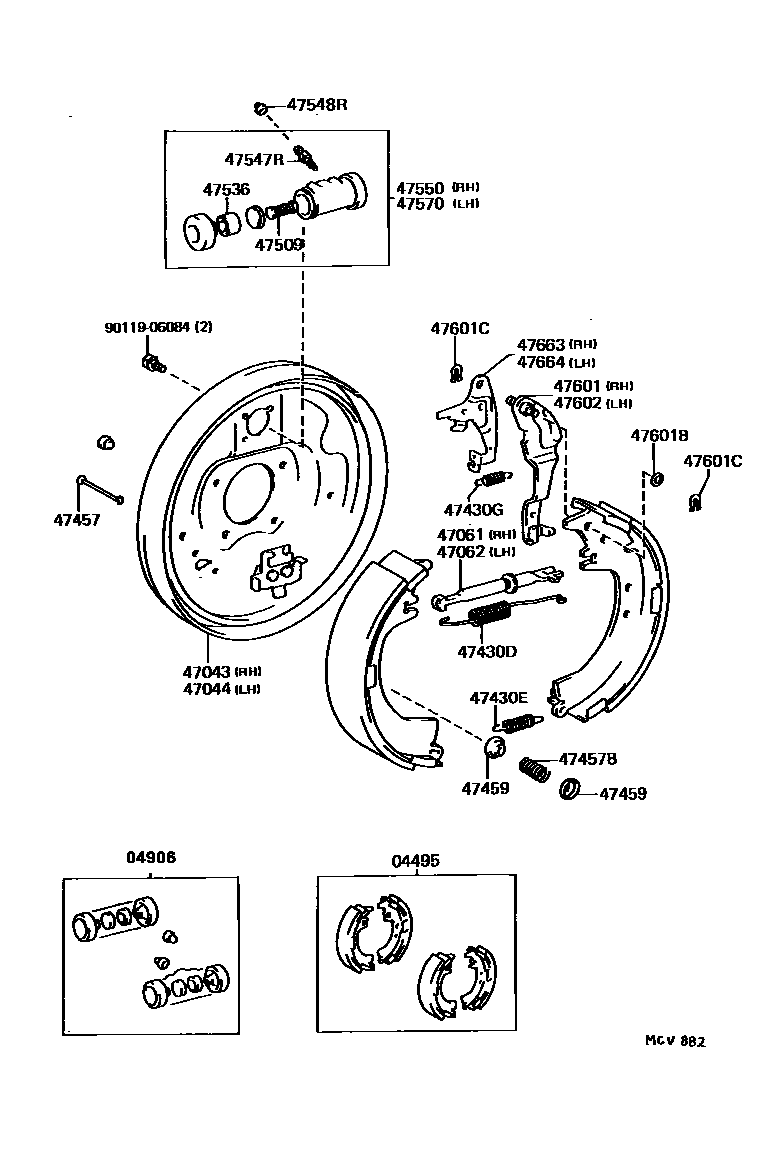

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-32020iSV2#..CS,S198611-198809

main04495-32021iSV2#..CS,S198809-198904

sub04495-32041

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12030iSV2#..CS,S198611-198904

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-32020iSV2#..CS,S198611-198904

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-32020iSV2#..CS,S198611-198904

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-32020iSV2#..CS,S198611-198904

sub47061-43010

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-32020iSV2#..CS,S198611-198904

sub47062-43010

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29008iSV2#..CS,S198611-198710

RH

main90506-29009iSV2#..CS,S198611-198710

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346×2iSV2#..CS,S198611-198710

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iSV2#..CS,S198611-198710

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iSV2#..CS,S198611-198710

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-18017×4iSV2#..CS,S198611-198710

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iSV2#..CS,S198611-198710

47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON

main47509-12010×2iSV2#..CS,S198611-198710

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22031×2iSV2#..CS,S198710-198904

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-22020×2iSV2#..CS,S198611-198710

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iSV2#..CS,S198611-198904

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-32020iSV2#..CS,S198611-198904

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-32020iSV2#..CS,S198611-198904

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32020iSV2#..CS,S198611-198904

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150×2iSV2#..CS,S198611-198710

T=0.3,T=0.3

main90564-08151×2iSV2#..CS,S198611-198710

T=0.6,T=0.6

main90564-08152×2iSV2#..CS,S198611-198710

T=0.9,T=0.9

main90564-08172iSV2#..CS,S198710-198904

T=0.2

main90564-08173×2iSV2#..CS,S198611-198710

T=0.4,T=0.4

main90564-08174×2iSV2#..CS,S198611-198710

T=0.5,T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iSV2#..CS,S198611-198710

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32020iSV2#..CS,S198611-198904

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-32020iSV2#..CS,S198611-198904

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-32020iSV2#..CS,S198611-198904

9011906084

main90119-06084

25 parts on this diagram · 1 diagram in section
