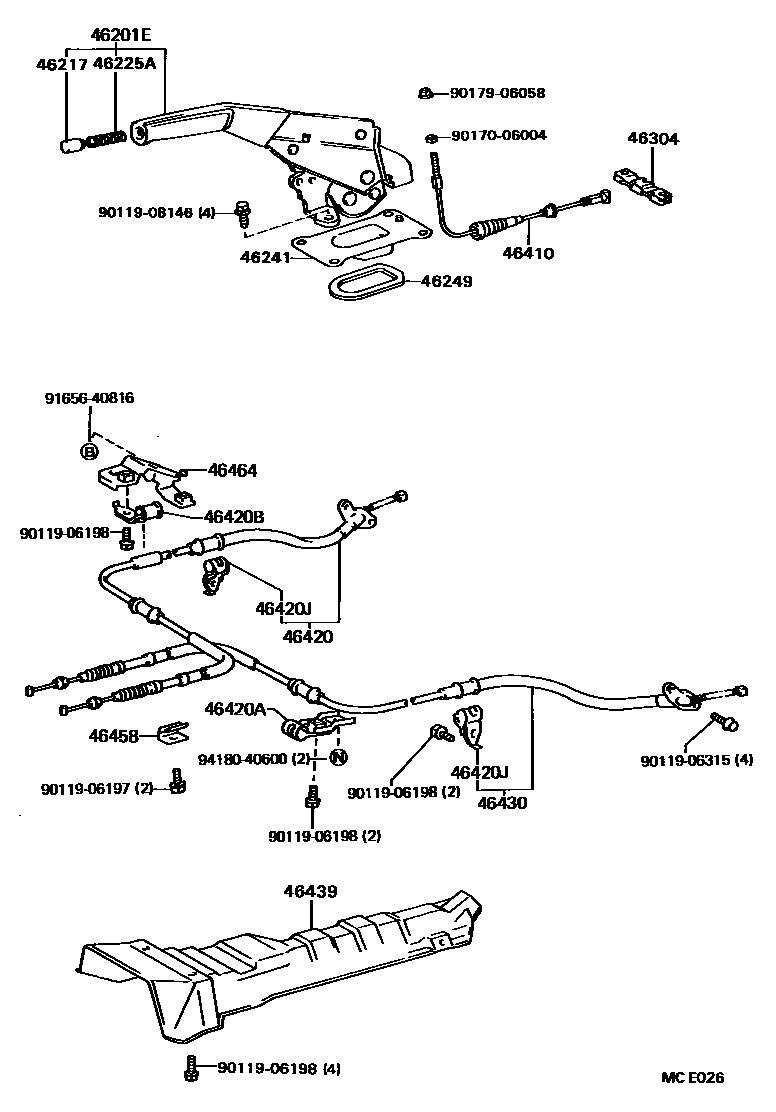

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE
DARK BLUE,TRIM8#
BEIGE,DARK BEIGE
DARK BEIGE,TRIM4#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
GRAY,MEDIUM GRAY
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BLUE,DARK BLUE
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
46217KNOB, PARKING BRAKE RELEASE ROD
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BEIGE,BEIGE
BEIGE,TRIM4#
GRAY,MEDIUM GRAY
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BLUE
DARK BEIGE,TRIM4#
DARK BLUE,TRIM8#
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
46241BOOT, PARKING BRAKE LEVER
46249SHIELD, PARKING BRAKE HOLE
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46439INSULATOR, PARKING BRAKE CABLE HEAT
46464PLATE, CABLE CLAMP SUPPORT
9011906197
main90119-06197
9011906198
main90119-06198
9011906315
main90119-06315
9011908146
main90119-08146
9017006004
main90170-06004
9017906058
main90179-06058
9165640816
main91656-40816
9418040600
main94180-40600
23 parts on this diagram · 2 diagrams in section
