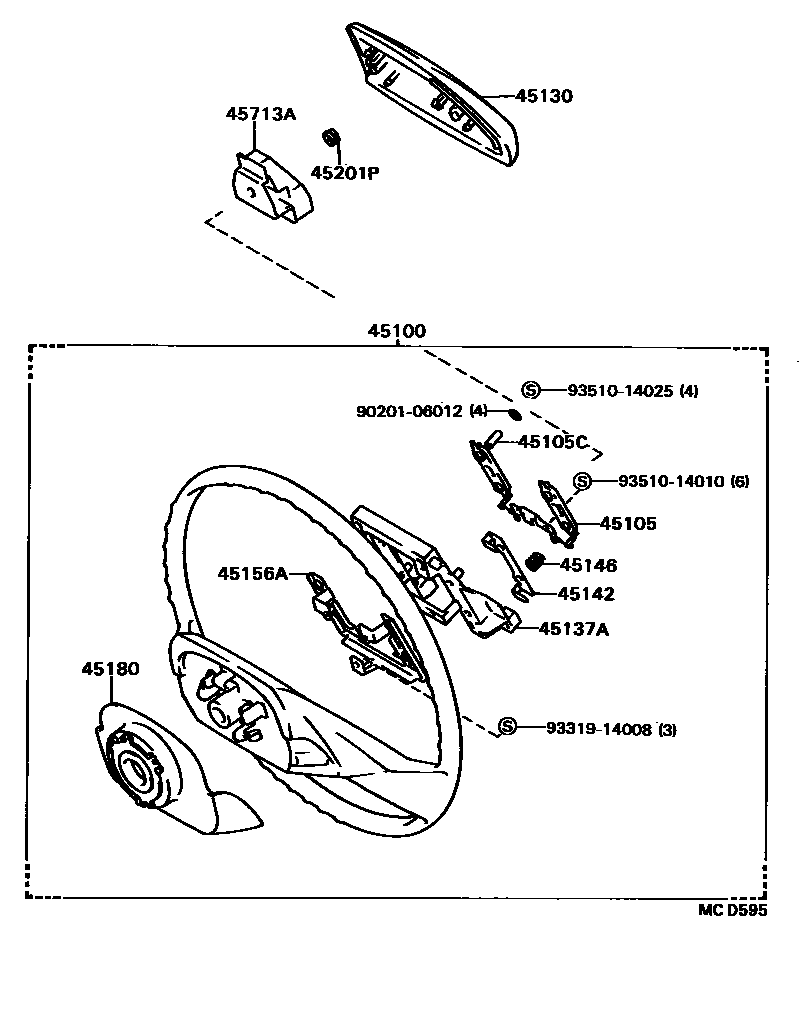

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-32080-03iSV2#198611-198710

GRAY,MEDIUM GRAY

main45100-32080-04iSV2#198710-198808

DARK BLUE,TRIM8#

main45100-32080-05iSV2#198710-198808

DARK BEIGE,TRIM4#

main45100-32090-01iVZV21198802-198808

BLACK,TRIM4#,8#

main45100-32090-04iVZV21198802-198808

DARK BLUE,TRIM8#

main45100-32090-05iVZV21198802-198808

DARK BEIGE,TRIM4#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-32070iSV2#198611-198904

main45105-32080iVZV21198802-198808

45105CCOLLAR(FOR HORN BUTTON CONTACT PLATE)

main90387-04005×4iSV2#198611-198904

45130BUTTON ASSY, HORN

main45130-32110-03iSV2#198611-198710

GRAY,MEDIUM GRAY

main45130-32110-04iSV2#198611-198710

BLUE,DARK BLUE

main45130-32110-05iSV2#198611-198710

BEIGE,DARK BEIGE

main45130-32160-01iVZV21198802-198808

BLACK,TRIM4#,8#

45137APLATE, HORN BUTTON CONTACT, NO.2

main45137-32040iSV2#198611-198904

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-32050×2iSV2#198611-198904

main45142-32070iVZV21198802-198808

45146SPRING, HORN BUTTON CONTACT

main45146-20140×4iSV2#198611-198904

45156ASEAT, HORN CONTACT SPRING SET

main45156-32010iSV2#198611-198904

45180COVER SUB-ASSY, STEERING WHEEL

main45180-32030-03iSV2#198611-198710

GRAY,MEDIUM GRAY

main45180-32030-04iSV2#198710-198808

DARK BLUE,TRIM8#

main45180-32030-05iSV2#198710-198808

DARK BEIGE,TRIM4#

main45180-32050-04iVZV21198802-198808

DARK BLUE,TRIM8#

main45180-32050-05iVZV21198802-198808

DARK BEIGE,TRIM4#

45201PNUT, STEERING WHEEL SET

main90179-12086iSV2#,VZV21198710-198808

45713ADAMPER, STEERING SHAKE

main45713-32020iSV2#198611-198710

main45713-32030iVZV21198802-198808

9020106012

main90201-06012

9331914008

main93319-14008

9351014010

main93510-14010

9351014025

main93510-14025

15 parts on this diagram · 2 diagrams in section
