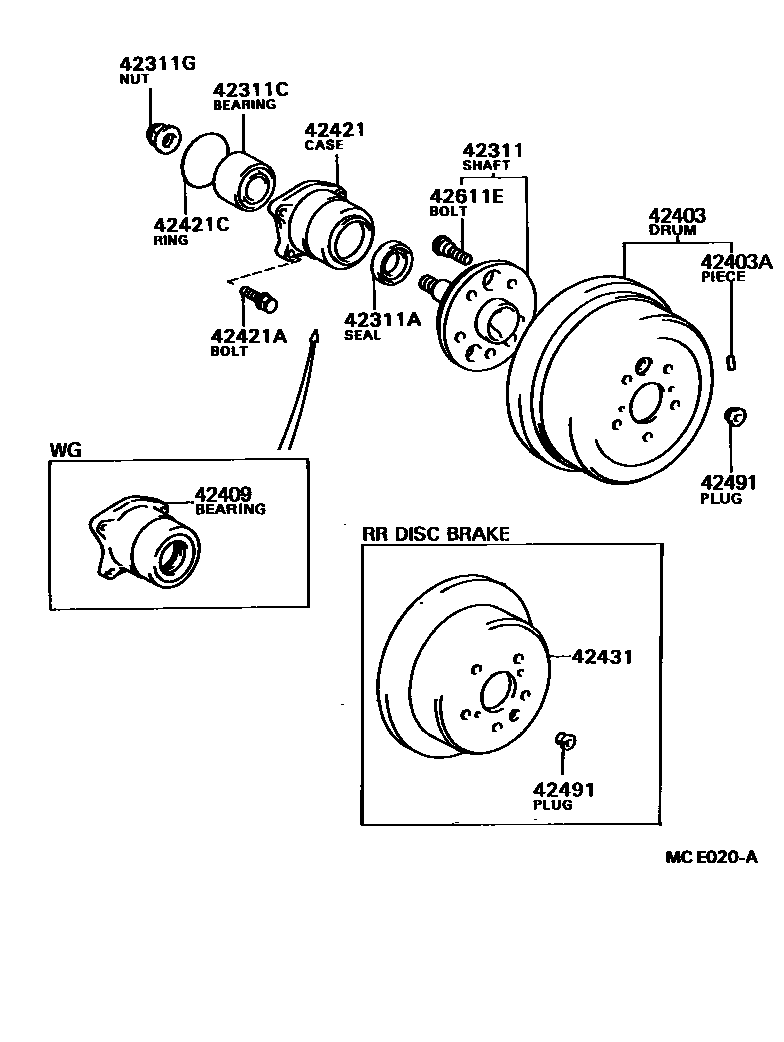

REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42301-32030×2iSV2#198611-198702

main42301-32031×2iSV2#198702-198710

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iSV2#,VZV21..SED198710-198808

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044×2iSV2#..SED198611-198710

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20003×2iSV2#198611-198710

42403DRUM SUB-ASSY, REAR BRAKE

main42431-32030×2iSV2#..CS,S198611-198904

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iSV2#..CS,S198611-198703

10G,10G

main90937-01118iSV2#..CS,S198611-198703

20G,20G

main90937-01119iSV2#..CS,S198611-198703

30G,30G

main90937-01195iSV2#..CS,S198611-198703

40G,40G

main90937-01196iSV2#..CS,S198611-198703

50G,50G

main90937-01197iSV2#..CS,S198611-198703

60G,60G

main90937-01287iSV2#..CS,S198710-198904

10G

main90937-01288iSV2#..CS,S198703-198710

20G,20G

main90937-01289iSV2#..CS,S198703-198710

30G,30G

42409BEARING SUB-ASSY, REAR AXLE

main42409-32010×2iSV2#..WG198611-198710

42421CASE, REAR AXLE BEARING

main42421-20020×2iSV2#..SED198611-198710

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124×8iSV2#198611-198710

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003×2iSV2#198611-198710

42431DISC, REAR

main42431-20090×2iSV21..CSX198611-198710

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-14010×2iSV2#..CS,S198611-198904

main47491-22020×2iSV21,VZV21..CSX,ULT198710-198808

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×10iSV2#198611-198710

13 parts on this diagram · 1 diagram in section
