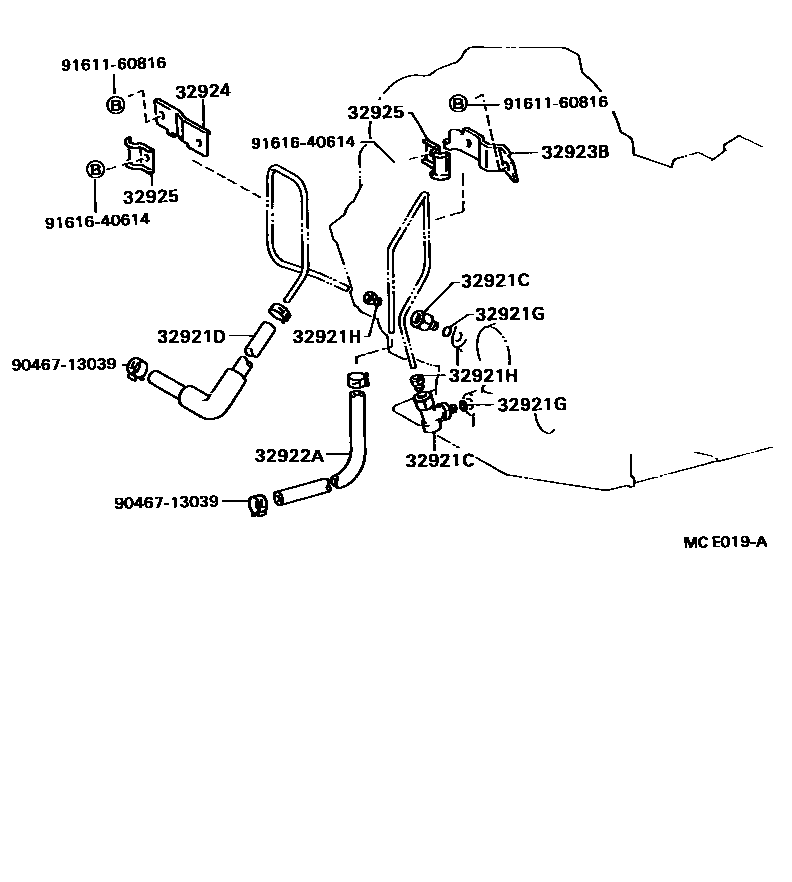

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-32071iVZV21198807-198808

sub32921-32072

32921CUNION(FOR OIL COOLER TUBE)

main32901-32010iSV2#..4FC198611-198904

OUTLET

main32901-32020iVZV21198802-198808

OUTLET

main90404-14007iSV2#..4FC198611-198904

INLET

main90404-16021iVZV21198802-198808

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-32030iSV2#..4FC198611-198709

main32941-32041iSV2#..4FC198709-198710

sub32941-32051

main32941-32051iSV2#..4FC198710-198904

sub32941-32140

main32941-32060iVZV21198802-198808

sub32941-32150

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iSV2#..4FC198611-198904

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iSV2#..4FC198611-198904

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-32020iVZV21198802-198808

sub32922-32021

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-16026iSV2#..4FC198611-198904

main90445-17076iVZV21198802-198808

sub90445-17105

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-20090iSV2#..4FC198611-198904

main32923-32040iVZV21198802-198808

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-32020iSV2#..4FC198611-198709

sub32923-32021

main32923-32021iSV2#..4FC198709-198904

main90462-12044iVZV21198802-198808

32925CLAMP, OIL COOLER TUBE, NO.3

main90461-06207iVZV21198802-198808

sub96221-24914

main90462-10082iSV2#..4FC198611-198904

9046713039

main90467-13039

9161160816

main91611-60816

9161640614

main91616-40614

13 parts on this diagram · 2 diagrams in section
