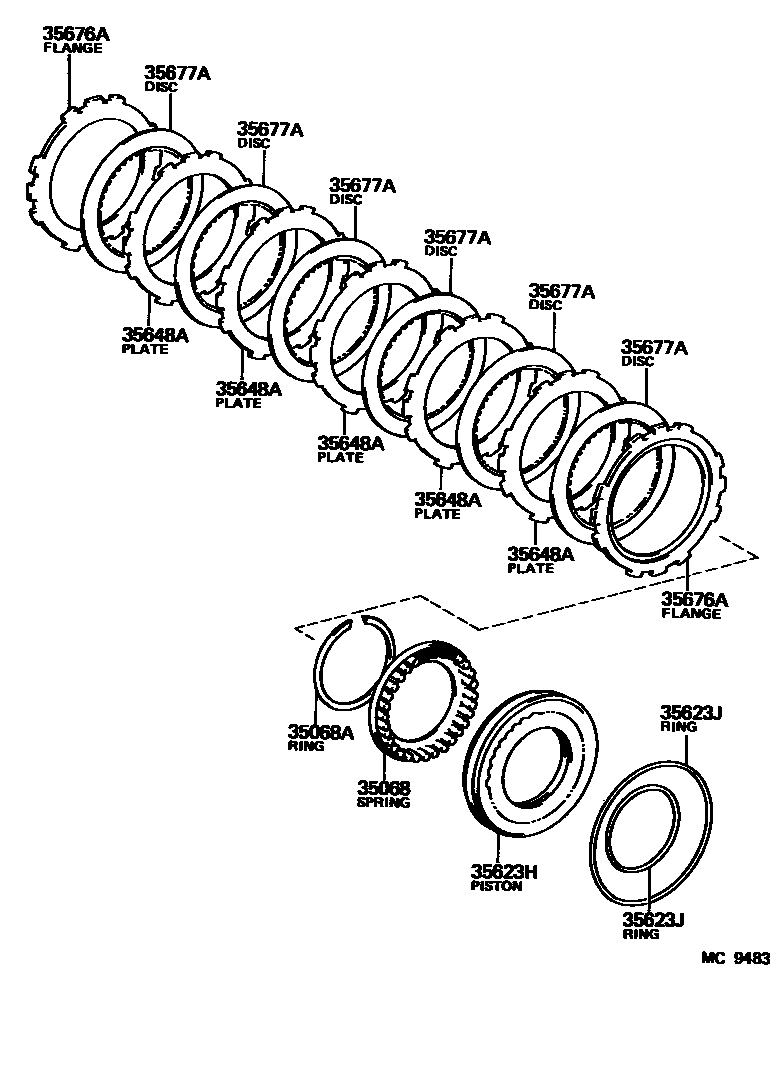

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1 0002 1

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iSV2#..4FC198710-198904

main35068-32020iVZV21198802-198808

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-86004iVZV21198802-198808

main90520-90001iSV2#..4FC198611-198710

35623HPISTON, 1ST & REVERSE BRAKE

main35623-32010iSV2#..4FC198611-198612

main35623-32020iSV20..4FC198612-198904

main35623-32030iVZV21198802-198808

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-90001iVZV21198802-198808

INNER

main90301-94001iSV2#..4FC198710-198904

INNER

main90301-99022iSV2#..4FC198808-198904

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020×7iVZV21198802-198808

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iVZV21198802-198808

T=3.5

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-32040×6iSV2#..4FC198611-198710

main35677-32060×7iVZV21198802-198808

7 parts on this diagram · 2 diagrams in section
