TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

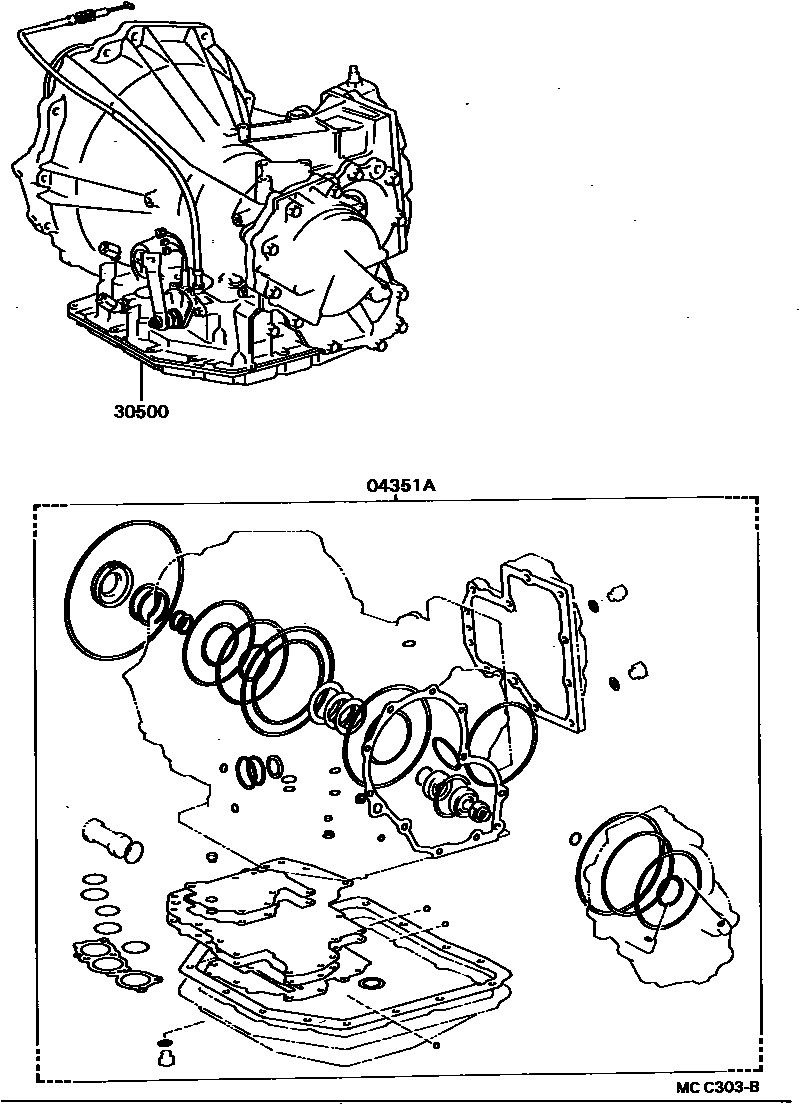

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-20080i198611-198710

main04351-32050i198802-198808

30500TRANSAXLE ASSY, AUTOMATIC

main30500-32170i198611-198704

main30500-32190i198611-198704

main30500-32290i198704-198904

main30500-32310i198704-198711

main30500-32311i198711-198904

main30500-32470i198802-198808

2 parts on this diagram · 2 diagrams in section
