TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

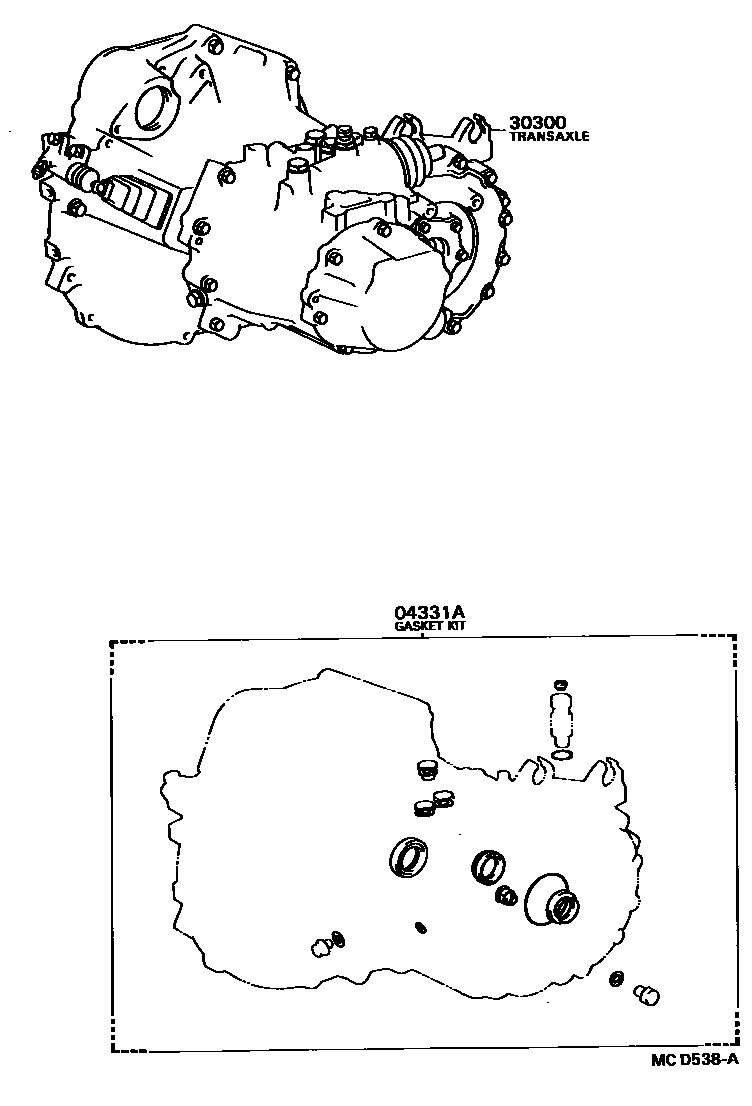

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-32010i198611-198804

main04331-32011i198804-198904

30300TRANSAXLE ASSY, MANUAL

main30300-32220i198611-198904

main30300-32230i198611-198904

2 parts on this diagram · 1 diagram in section
