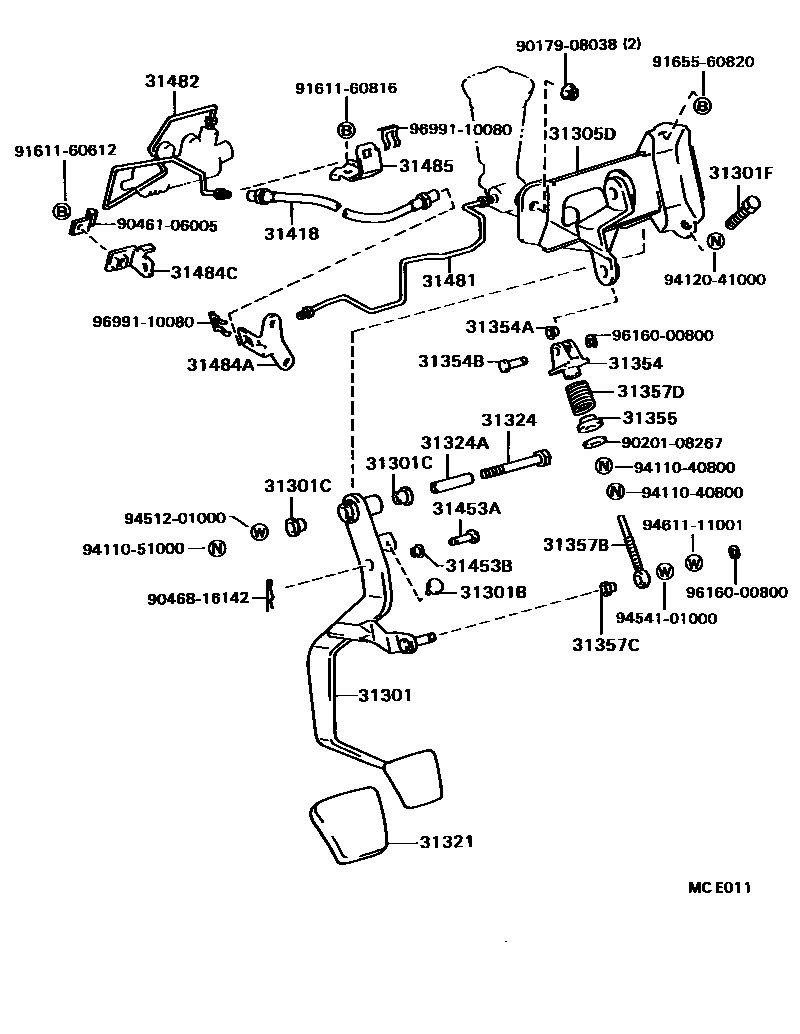

CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31305DSUPPORT SUB-ASSY, CLUTCH PEDAL
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31354SEAT, CLUTCH PEDAL SPRING, UPPER
31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
31355SEAT, CLUTCH PEDAL SPRING, LOWER
31357BROD, OVER CENTER ADJUSTING
31357CBUSH(FOR OVER CENTER ADJUSTING ROD)
31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
31418HOSE, CLUTCH
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=30
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31484ABRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484CBRACKET, CLUTCH TUBE, NO.1
31485BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
9017908038
main90179-08038
9020108267
main90201-08267
9046106005
main90461-06005
9046816142
main90468-16142
9161160612
main91611-60612
9161160816
main91611-60816
9165560820
main91655-60820
9411040800
main94110-40800
9411051000
main94110-51000
9412041000
main94120-41000
9451201000
main94512-01000
9454101000
main94541-01000
9461111001
main94611-11001
9616000800
main96160-00800
9699110080
main96991-10080
38 parts on this diagram · 1 diagram in section
