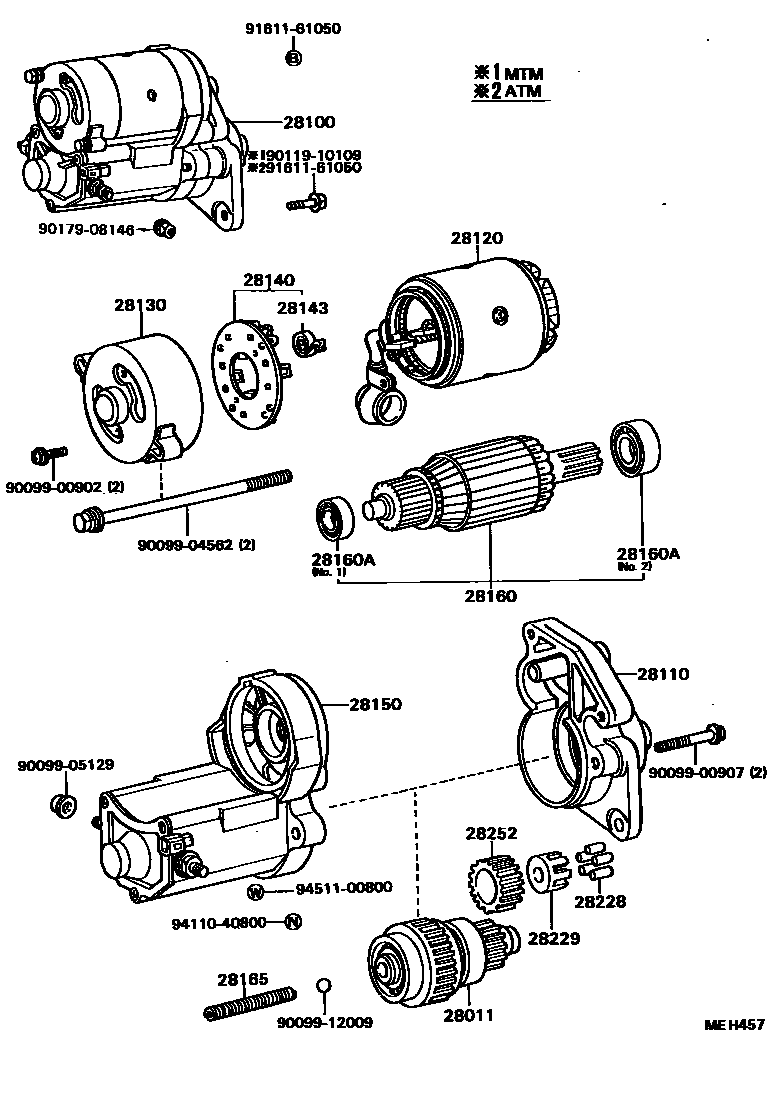

STARTER

0001 112V 1.0KW 0002 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i1SI..SV20198611-198710

12V 1.0KW

main28011-74010i3SFE..SV21198611-198710

12V 1.0KW

main28011-74011i3SFE,2VZFE..SV21,VZV21198805-198808

12V 1.0KW

28100STARTER ASSY

main28100-62010i2VZFE..VZV21198802-198805

12V 1.0KW

main28100-62011i2VZFE..VZV21198805-198808

12V 1.0KW

main28100-63020i1SI..SV20198611-198710

12V 1.0KW,12V 1.0KW

main28100-74010i3SFE..SV21198611-198710

12V 1.0KW,12V 1.0KW

main28100-74011i3SFE..SV21198805-198904

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-62010i2VZFE..VZV21198802-198808

12V 1.0KW

main28110-63020i1SI..SV20198710-198904

12V 1.0KW

main28110-74010i3SFE..SV21198611-198710

12V 1.0KW

28120YOKE ASSY, STARTER

main28120-26071i1SI,3SFE..SV2#198611-198710

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-63020i1SI..SV20198611-198710

12V 1.0KW

main28130-74010i3SFE..SV21198611-198710

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i1SI..SV20198611-198710

12V 1.0KW

main28140-74010i3SFE..SV21198611-198710

12V 1.0KW

28143SPRING, STARTER BRUSH

main90099-17112×4i1SI,3SFE..SV2#198611-198710

12V 1.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-63021i1SI..SV20198611-198710

12V 1.0KW

main28150-74010i3SFE..SV21198611-198710

12V 1.0KW

28160ARMATURE ASSY, STARTER

main28160-26070i1SI,3SFE..SV2#198808-198904

12V 1.0KW

28160ABEARING, STARTER ARMATURE

main28253-45020i1SI,3SFE..SV2#198611-198710

12V 1.0KW,NO.1

main90099-10113i1SI,3SFE..SV2#198611-198710

12V 1.0KW,NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i1SI..SV20198611-198710

12V 1.0KW

main28165-74010i3SFE,2VZFE..SV21,VZV21198710-198808

12V 1.0KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i1SI,3SFE..SV2#198611-198710

12V 1.0KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i1SI,3SFE..SV2#198611-198710

12V 1.0KW

28252GEAR, STARTER IDLE

main28254-45020i1SI,3SFE..SV2#198611-198710

12V 1.0KW

main28254-54070i2VZFE..VZV21198802-198808

12V 1.0KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011910109

main90119-10109

9017908146

main90179-08146

9161161050

main91611-61050

9411040800

main94110-40800

9451100800

main94511-00800

24 parts on this diagram · 2 diagrams in section
