DISTRIBUTOR

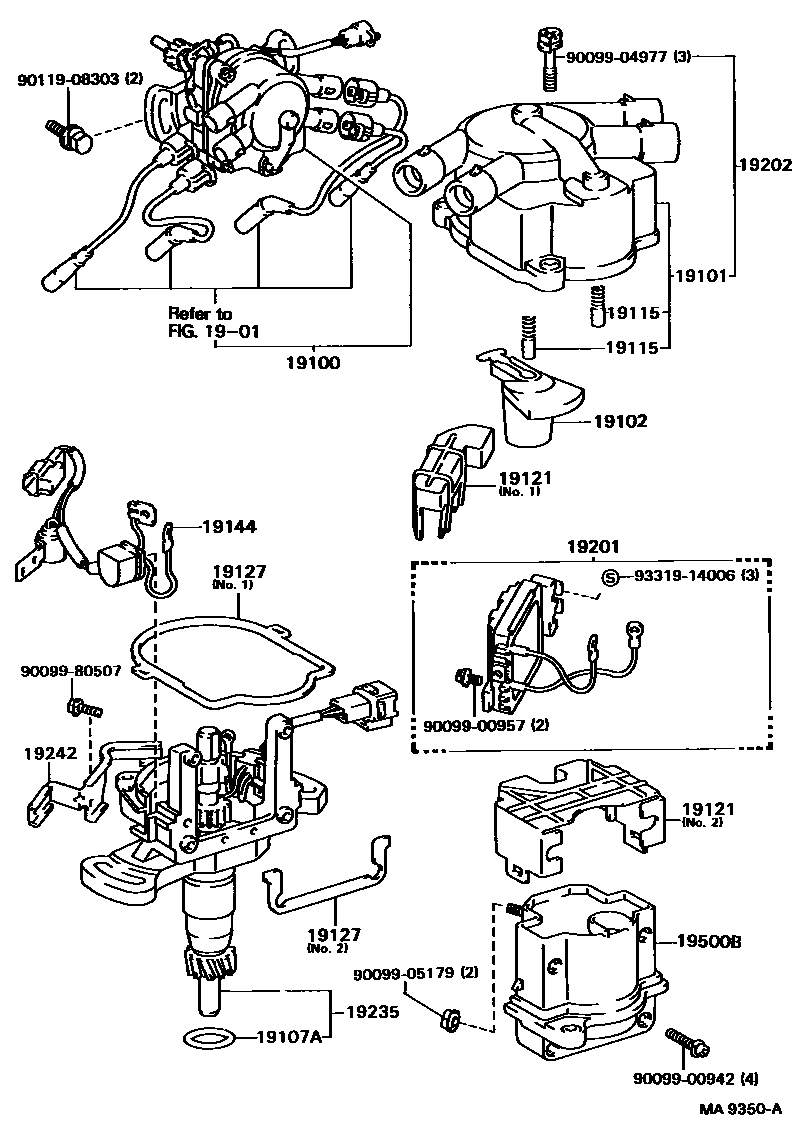

Parts diagram

1901

19100DISTRIBUTOR ASSY

main19030-63090i198611-198904

main19040-74030i198611-198710

main19040-74031i198710-198904

main19100-62020i198802-198808

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-62020i198802-198808

main19101-63011i198611-198904

main19101-74030i198611-198904

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i198611-198904

main19102-16060i198611-198904

main19102-62020i198802-198808

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i198611-198808

main90099-14089i198802-198808

main96711-35030i198611-198904

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i198802-198808

main19115-63010×2i198705-198710

main19115-71010×2i198611-198705

19121COVER, DUST PROOF

main19121-62011i198802-198808

main19121-63040i198611-198904

main19121-63090i198710-198904

NO.1

19127PACKING, DUST PROOF

main19127-61240i198802-198808

main19127-63010i198611-198710

NO.1

main19127-63020i198611-198710

NO.2

19144LEAD, DISTRIBUTOR BREAKER

main19144-63090i198611-198904

main19144-74040i198611-198710

main19144-74060i198710-198904

19201IGNITER

main89620-20250i198611-198904

19202CAP KIT(FOR DISTRIBUTOR)

main19202-63010i198710-198904

19235HOUSING, DISTRIBUTOR

main19235-63100i198611-198904

main19235-74020i198708-198710

main19235-74040i198710-198710

main19235-74060i198807-198904

19242CLAMP, CORD

main19242-74010i198611-198904

main19242-74020i198611-198710

NO.1

main19242-74030i198611-198710

NO.2

19500BCOIL ASSY, IGNITION

main90919-02135i198611-198710

9009900942

main90099-00942

9009900957

main90099-00957

9009904977

main90099-04977

9009905179

main90099-05179

9009980507

main90099-80507

9011908303

main90119-08303

9331914006

main93319-14006

21 parts on this diagram · 3 diagrams in section
