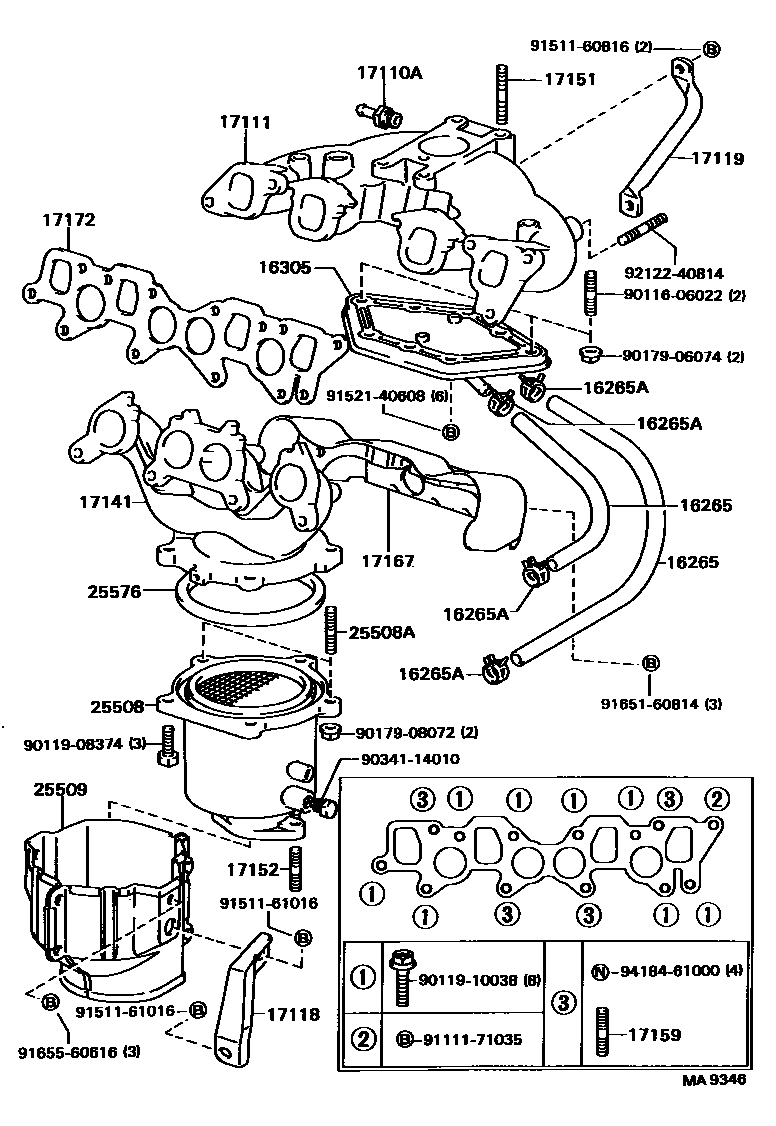

MANIFOLD
16265HOSE, INTAKE MANIFOLD WATER
L=365
16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
16305OUTLET SUB-ASSY, WATER BY-PASS
17110AUNION, VACUUM HOSE
17111MANIFOLD, INTAKE
17119STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=32,S=12&12
L=44,S=12& 12
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE SIDE
EXHAUST SIDE
EXHAUST SIDE
EXHAUST SIDE
EXHAUST SIDE
INTAKE SIDE
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17172GASKET, MANIFOLD TO CYLINDER HEAD
25508CONVERTER SUB-ASSY, MANIFOLD
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
25509INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25576GASKET, MANIFOLD CONVERTER
9011606022
main90116-06022
9011908374
main90119-08374
9011910038
main90119-10038
9017906074
main90179-06074
9017908072
main90179-08072
9034114010
main90341-14010
9111171035
main91111-71035
9151160816
main91511-60816
9151161016
main91511-61016
9152140608
main91521-40608
9165160814
main91651-60814
9165560616
main91655-60616
9212240814
main92122-40814
9418461000
main94184-61000
31 parts on this diagram · 3 diagrams in section
